2-3

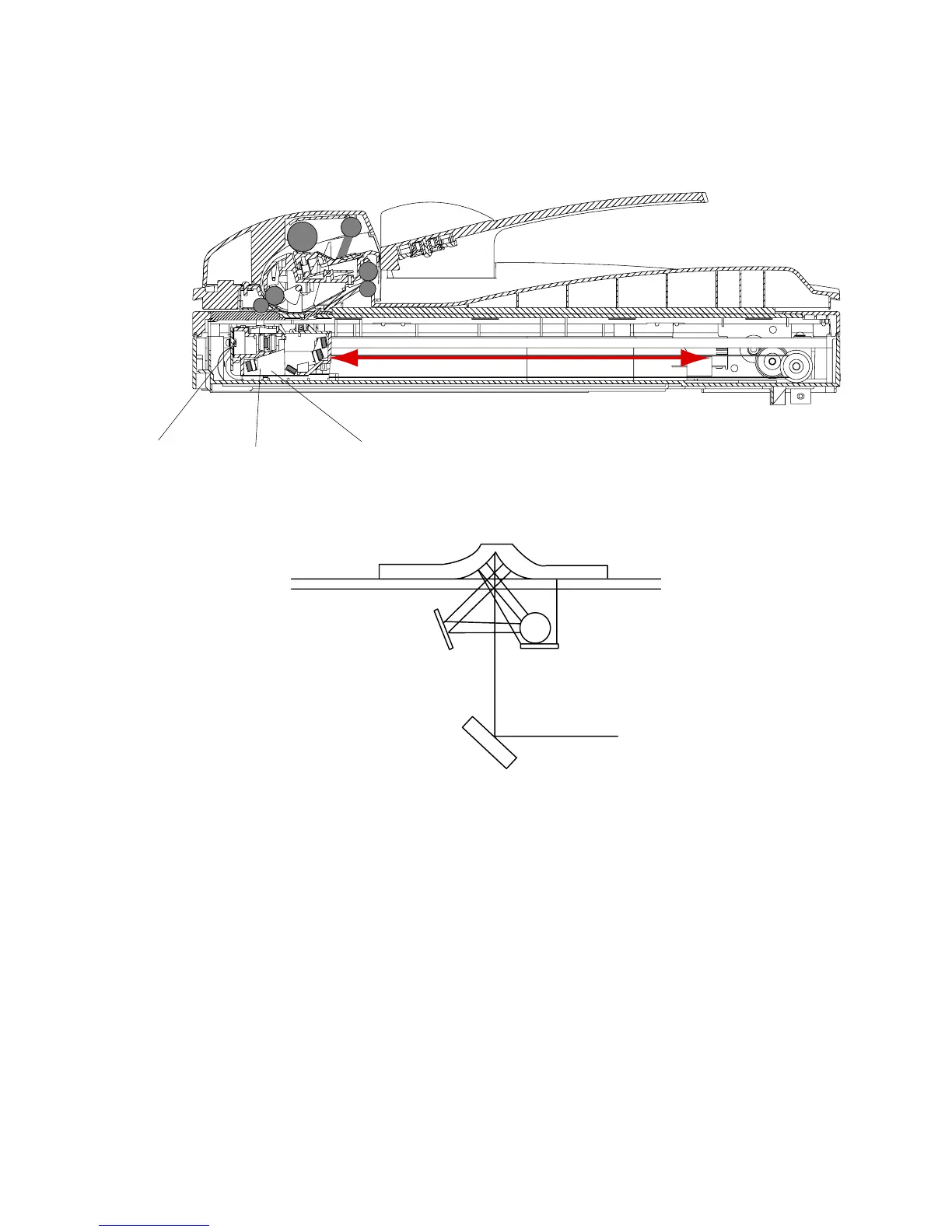

2.1.2 FBS section (MFX-2050 / MFX-1450 only)
Light reflected from the original passes through three mirrors and a lens to form a reduced image on the CCD
Sensor as the Scanner Motor moves the Scanner. The CCD sensor converts the light pattern (image data) into
an electrical image signal.
The electrical image signal is then output to the Main Board.
CCD
Scanner unit
Home sensor
Exposure Section: Construction and Function
1
1
2
3
1 Reflector Tape
The Reflector Tape reflects the light from the Exposure Lamp and supplements its illumination.
2
Exposure Lamp
A Cold Cathode Fluorescent Lamp (CCFL) is used to illuminate the original.
3 Mirror
Directs the reflected light from the original to the lens.
