5-53
6)

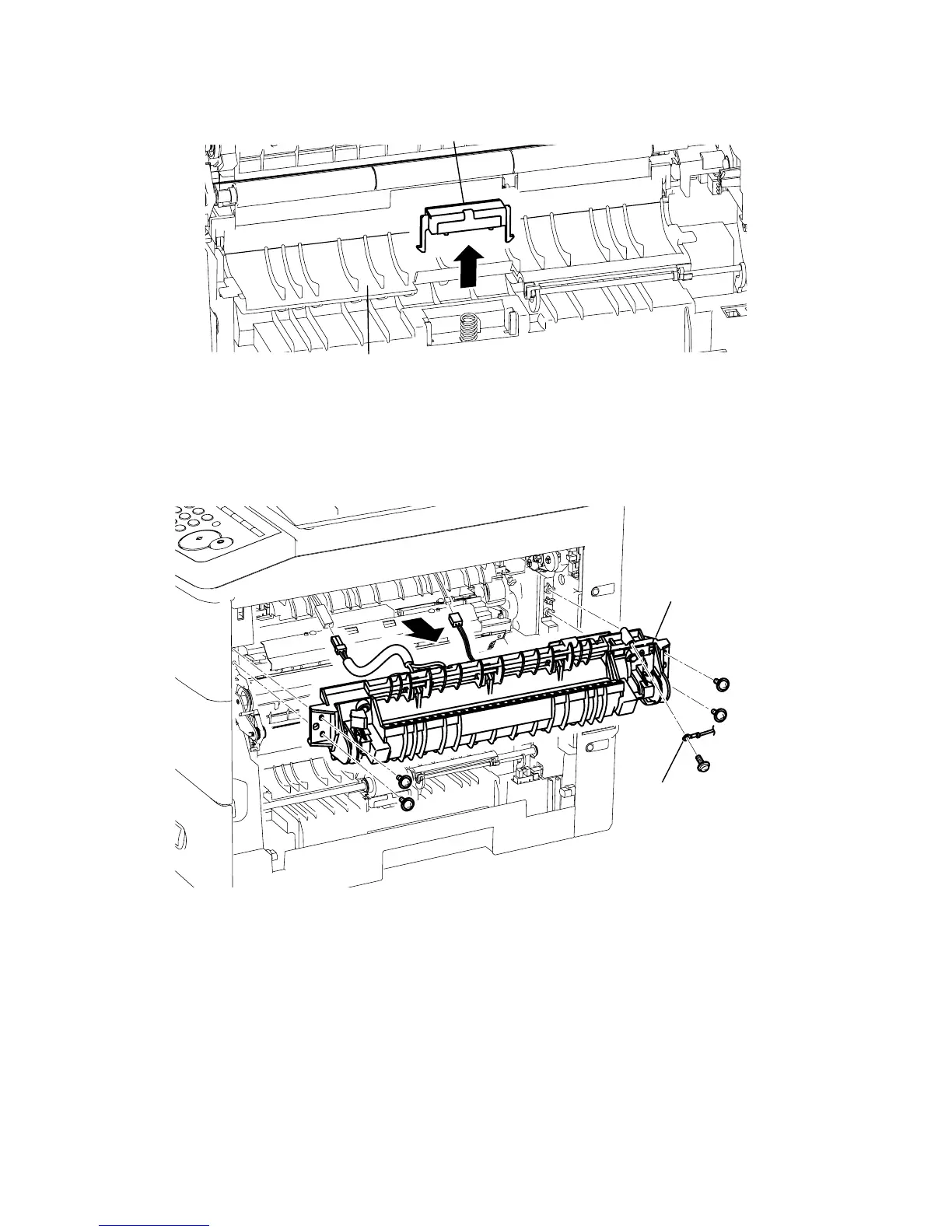

Remove the PAD PRESSURE MP.
Note:
When reattaching the Pad pressure MP, align the notch with the counterpart on the body.
Pad pressure MP
Guide paper MPDUP
ASSY FUSER
1)
Open the Cover jam access.
2)
Remove the Ground wire and four Printer fuser mounting screws, and then remove the harness.
3)
Remove the ASSY FUSER.
ASSY FUSER
Ground wire
342
344
