5-17

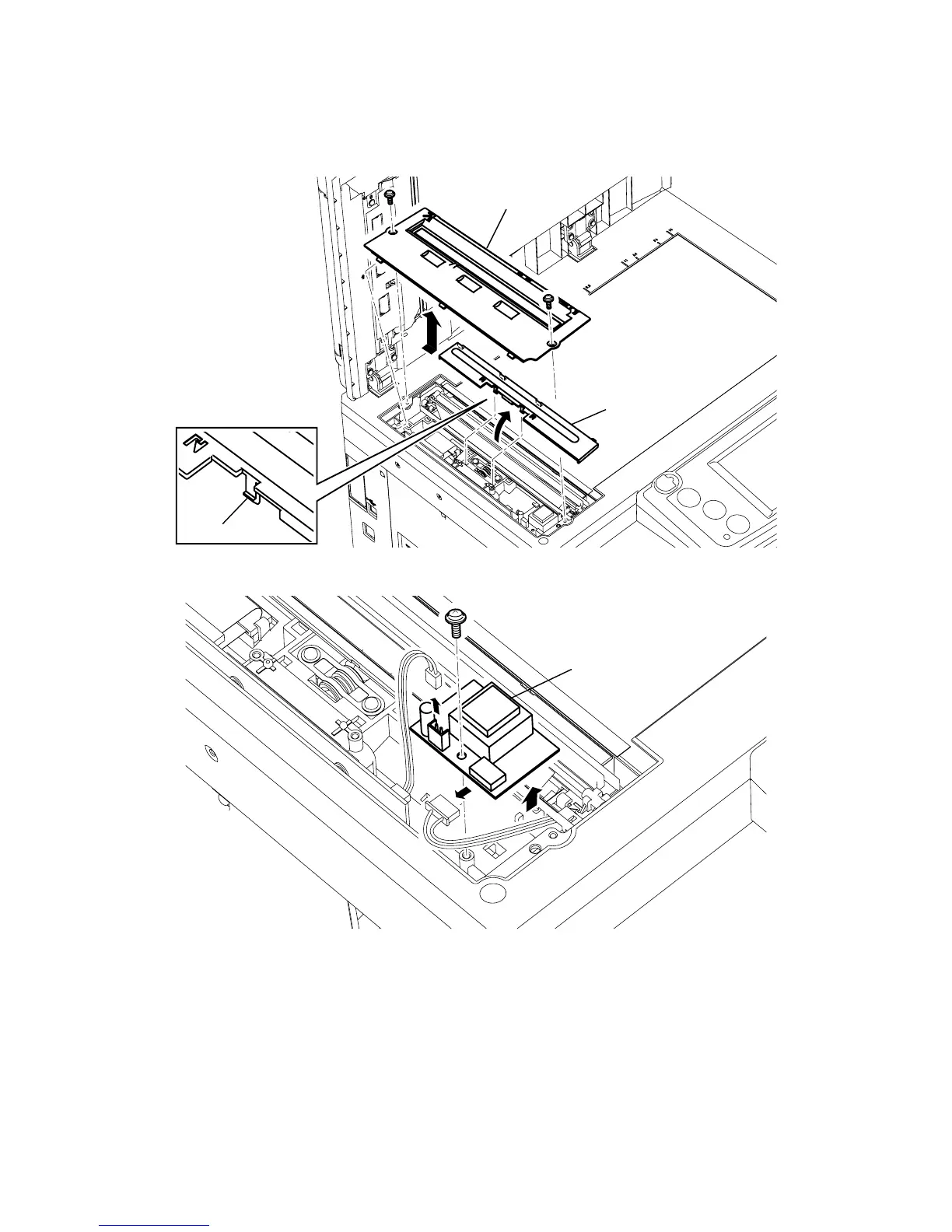

PCB INVERTER (MFX-2050/1450)
1)
Open the Cover platen.
2)
Remove two Cover contact mounting screws, then release three locking tabs, and then remove the
Cover contact.
3)
Remove two Cover lens locking snap fits, and four locking tabs, and then remove the Cover lens.
Sna
p
fit
Cover contact
Cover lens
4)
Remove the PCB INVERTER mounting screw, then disconnect two connectors and two locking tabs,
and then the PCB INVERTER.
PCB INVERTER
CN2
CN1
306
308
