5-18
PCB INVERTER (F-565/525)
1)
Remove the Cover ADF base. (See page 5-7)
2)
Remove the Cover top PPF. (See page 5-13)
3)
Remove the Cover lens. (See page 5-19)
4)

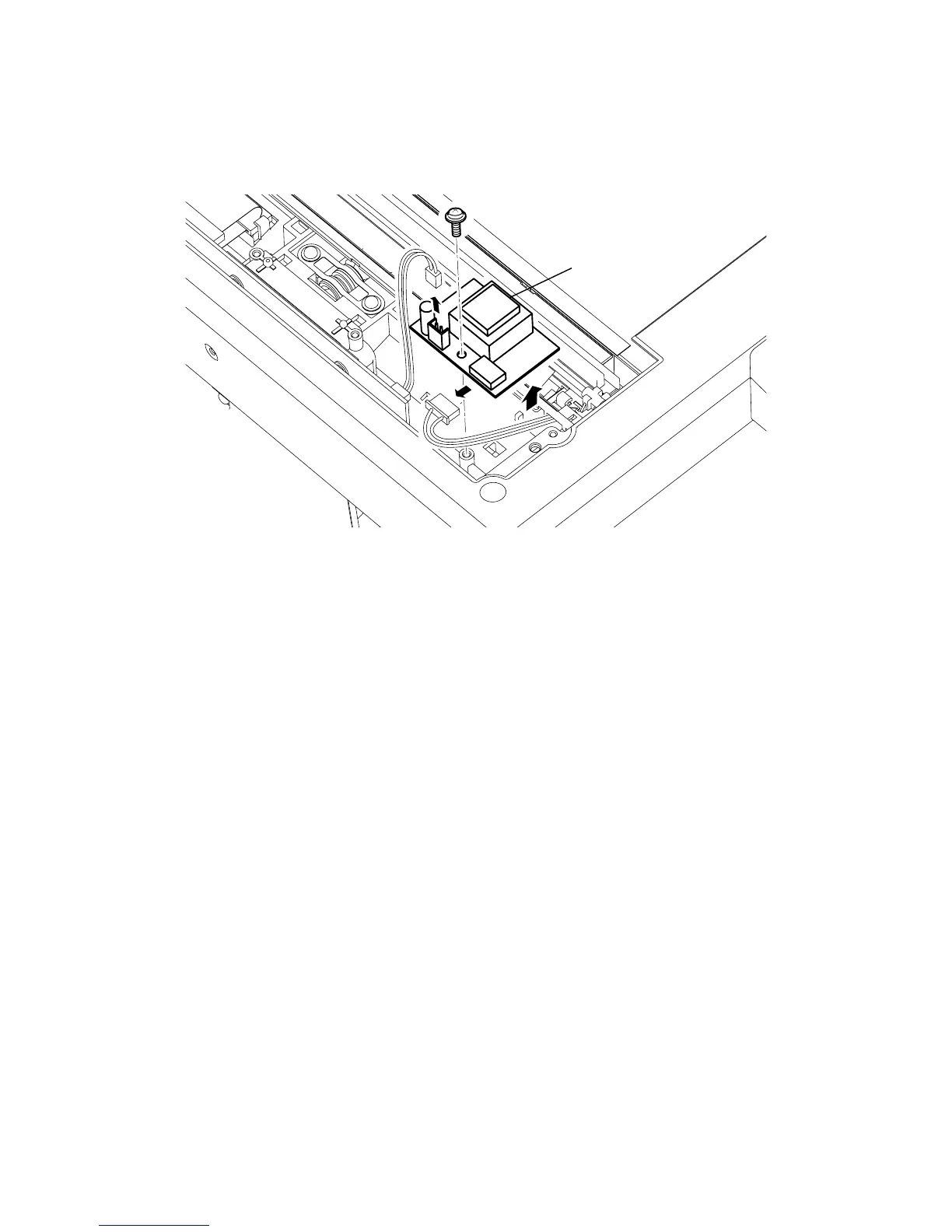

Remove the PCB INVERTER mounting screw, then disconnect two connectors and two locking tabs,
and then the PCB INVERTER.
PCB INVERTER
CN2
CN1
307
309
