5-13

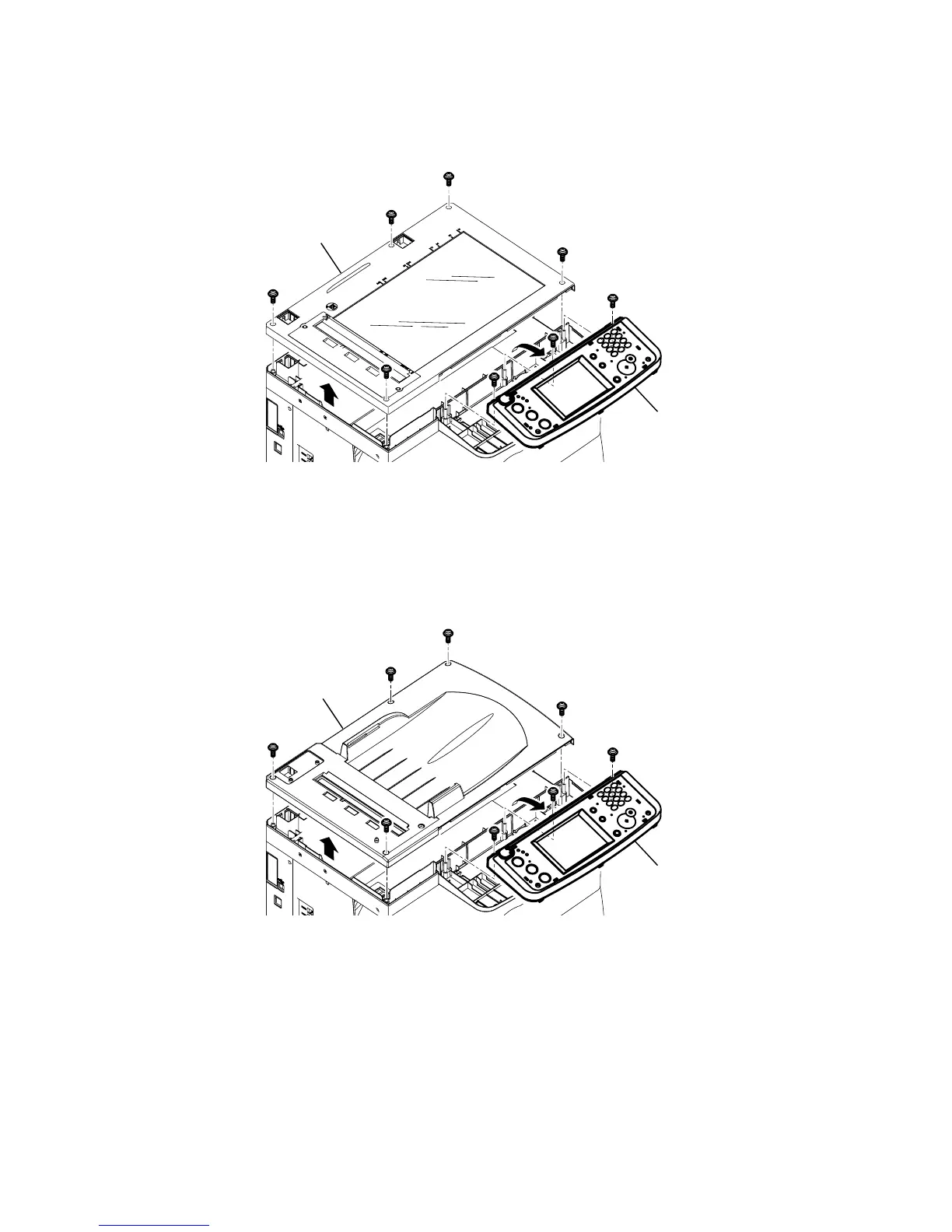

COVER PANEL NGP (MFX-2050/1450)
1)
Remove the Cover platen. (See page 5-7)
2)
Remove five Cover top mounting screws, and then removes the Cover top.
3)
Remove three Cover panel NGP mounting screws, then release three locking tabs, and then remove
the COVER PANEL NGP.
Cover top
Cover panel NGP
COVER PANEL NGP (F-565/525)
1)
Remove the Cover ADF base. (See page 5-7)
2)
Remove five Cover top PPF mounting screws, and then remove the Cover top PPF.
3)
Remove three Cover panel NGP mounting screws, then release three locking tabs, and then remove
the COVER PANEL NGP.
Cover top PPF
Cover panel NGP
302
304
