5-11

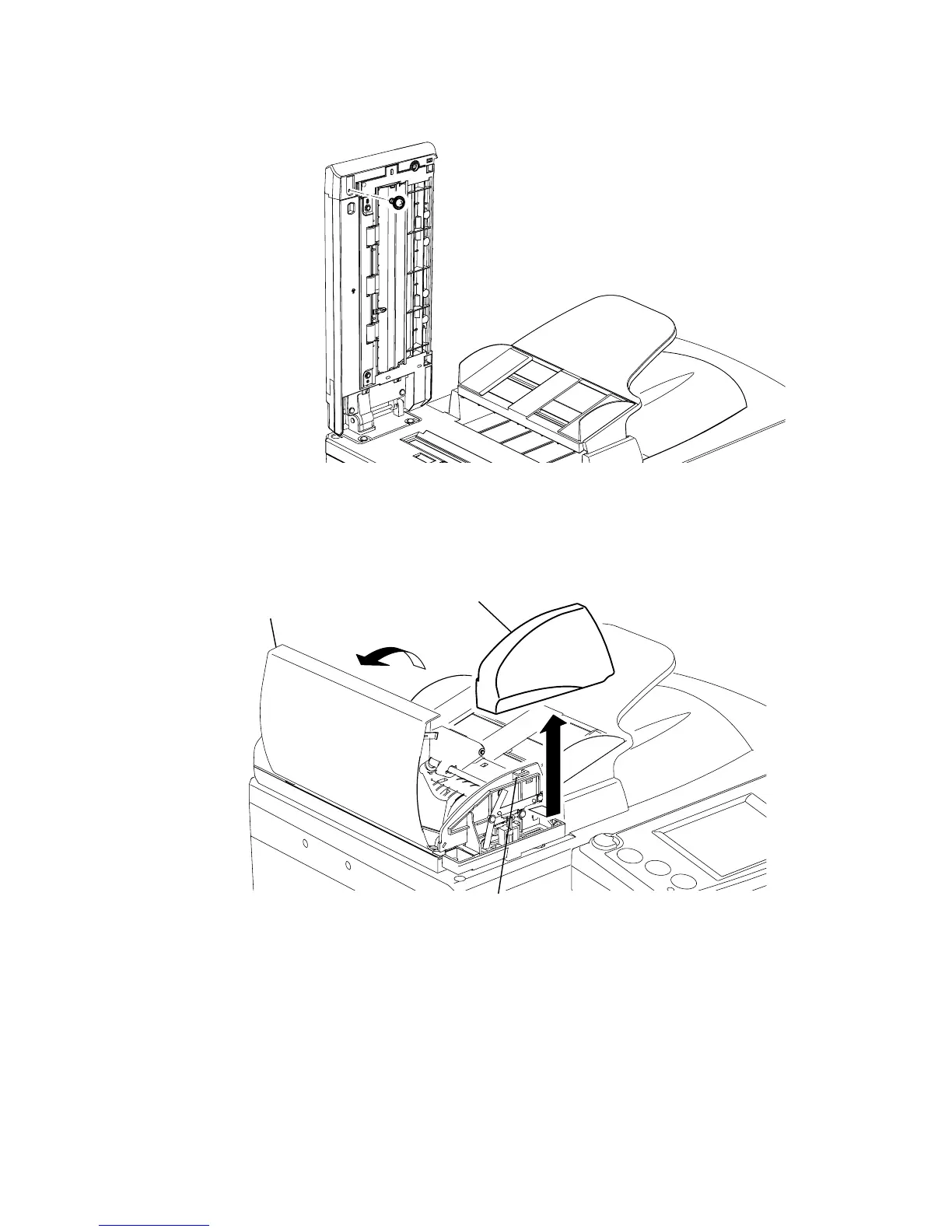

COVER TX SIDE F (F-565/525)
1)
Open the Cover ADF base.
2)
Remove the Cover TX side F mounting screw.
3)
Close the Cover ADF base.
4)
Open the Guide outer.
5)
Release the locking tab, and then remove the COVER TX SIDE F.
Guide outer
T
ab
Cover Tx side F
300
302
