5-10

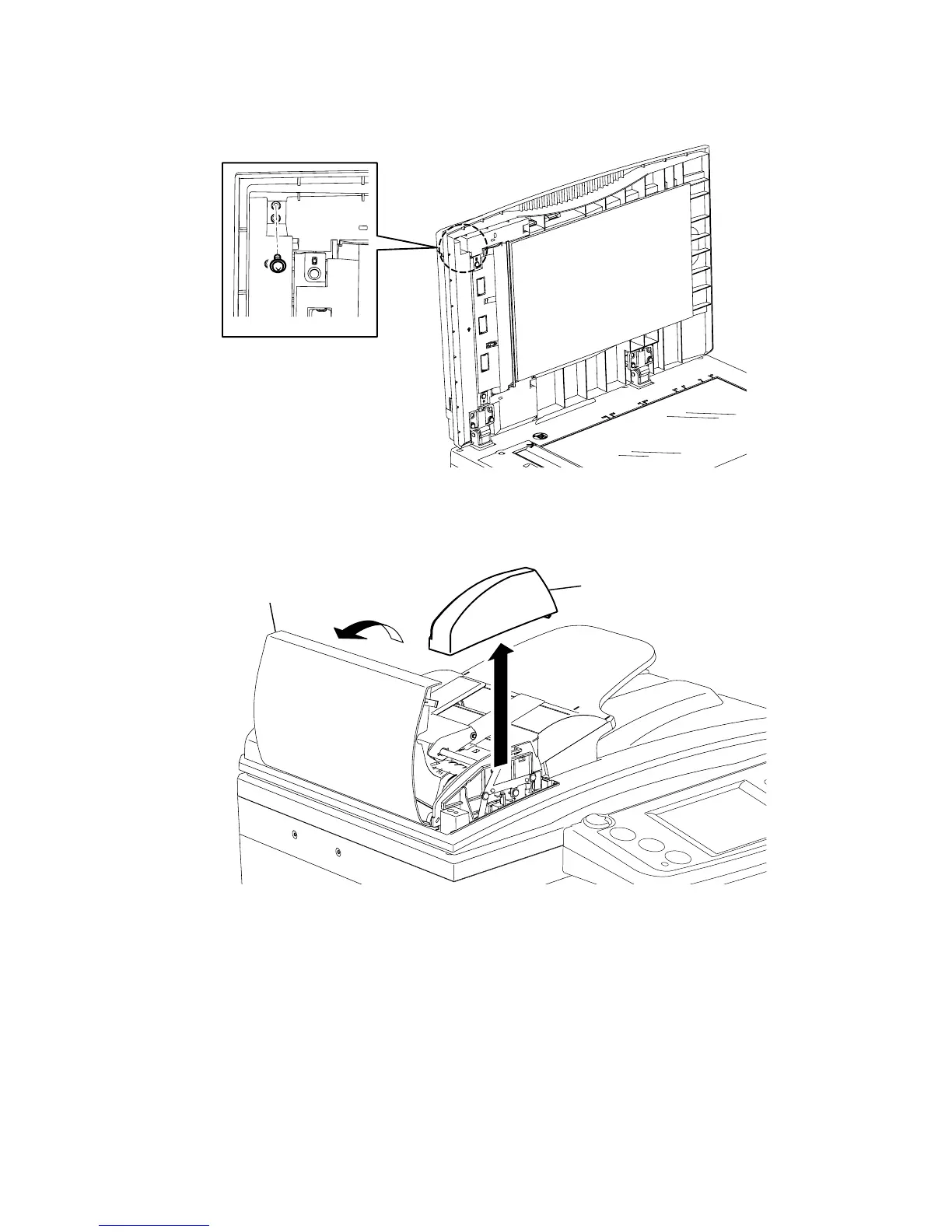

COVER TX SIDE F (MFX-2050/1450)
1)
Open the Cover platen.
2)
Remove the Cover TX side F mounting screw.
3)
Close the Cover platen.
4)
Open the Guide outer.
5)
Release the locking tab, and then remove the COVER TX SIDE F.
Guide outer
Cover Tx side F
