5-61

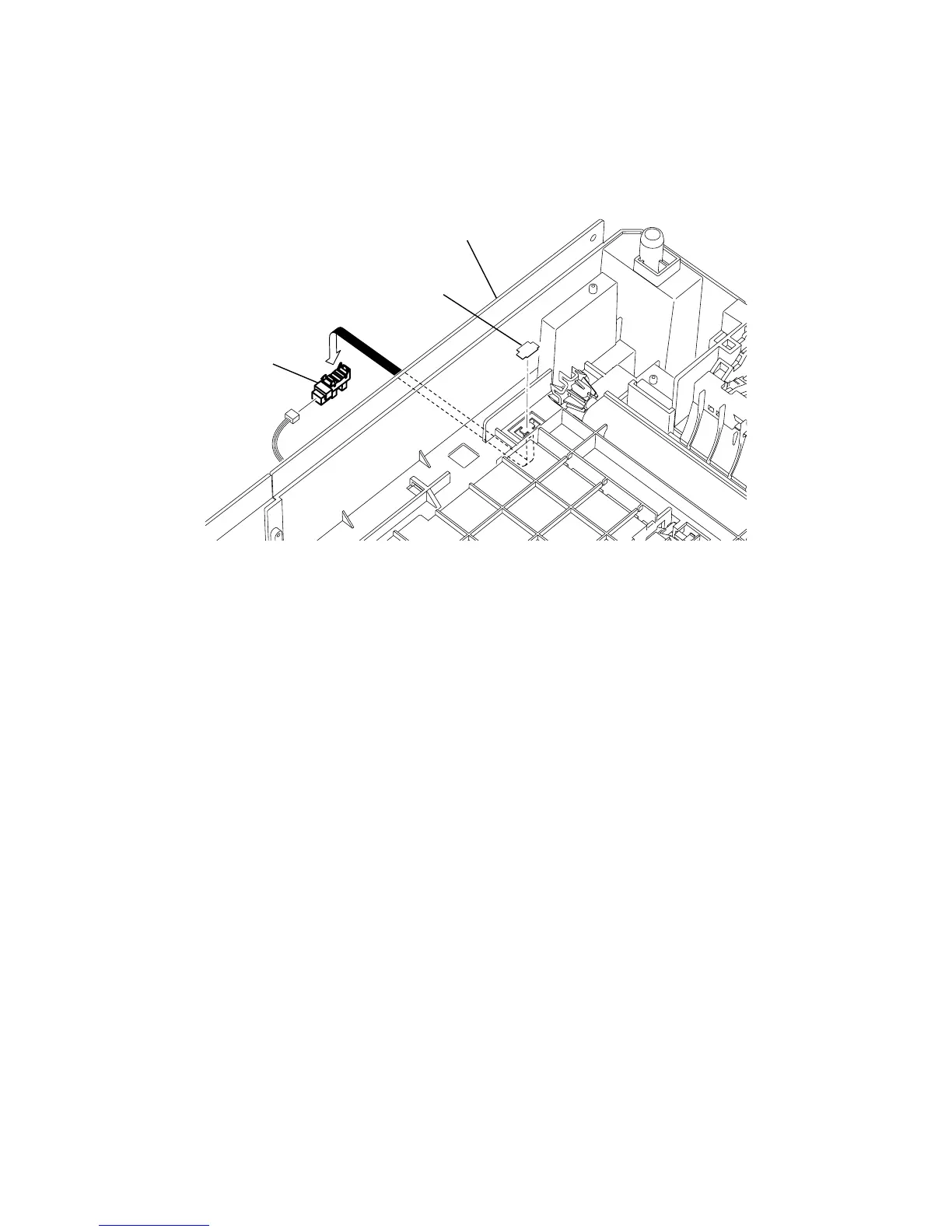

SENSOR OPEN2
1)
Separate the Chassis cassette 2nd from the Main frame.
2)
Pull out the Cassette 2nd.
3)
Remove the Roller feed 2ND. (See page 5-57)
4)
Remove the Plate frame B. (See page 5-58)
5)
Release the tab, and then remove the Sensor OPEN2.
Sensor stopper
Chassis 2nd
OPEN2
350
352
