Fusing Temperature Control Circuit

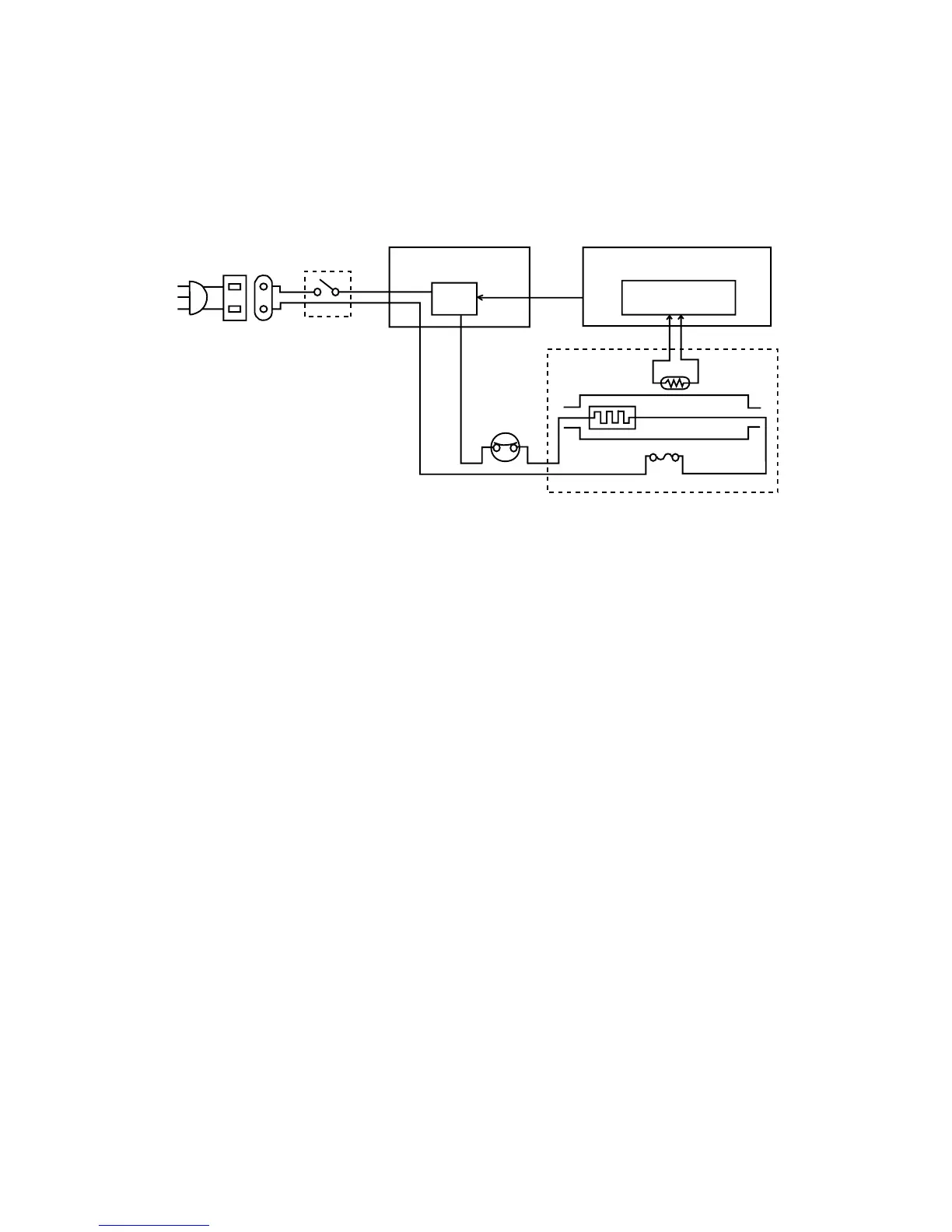

The Thermistor detects the surface temperature of the Heater Roller and inputs that analog voltage
into the Main Control PCB. Corresponding to this data, the Heater Lamp ON/OFF signal is output to
the Heater ON/OFF switch of the power supply unit, causing the Heater Lamp to turn ON or OFF to
control the fusing temperature.
When the Heater Lamp is not turned OFF even if the Thermistor detects a high temperature
malfunction, the thermostat shuts down the power to the heater lamp. When the thermostat is
malfunction, the thermal cut-off shuts down the power to the heater lamp.
Fusing temperature
1) Warming Up After the initialization of the printer, warming up of the printer starts and the
Heater Lamp turns ON until the temperature of the Heater Roller reaches ap-
prox. 180 °C or 200 °C according to the machine type.
2) Printing When the printer obtains the printing command from its controller, the Heater
Roller is maintained at 180 °C or 195 °C according to the machine type.
After printing, the printer turns to standby mode. The fuser kept at low tem-
perature.
3) Standby mode The Heater Roller maintained at approx. 110 °C or 130 °C according to the
machine type.
4) Energy save mode In this mode, saving the power.
