MyBinding DC-545HC - Elevator Switch Height Adjustment; Objective; How to Make Adjustments

111

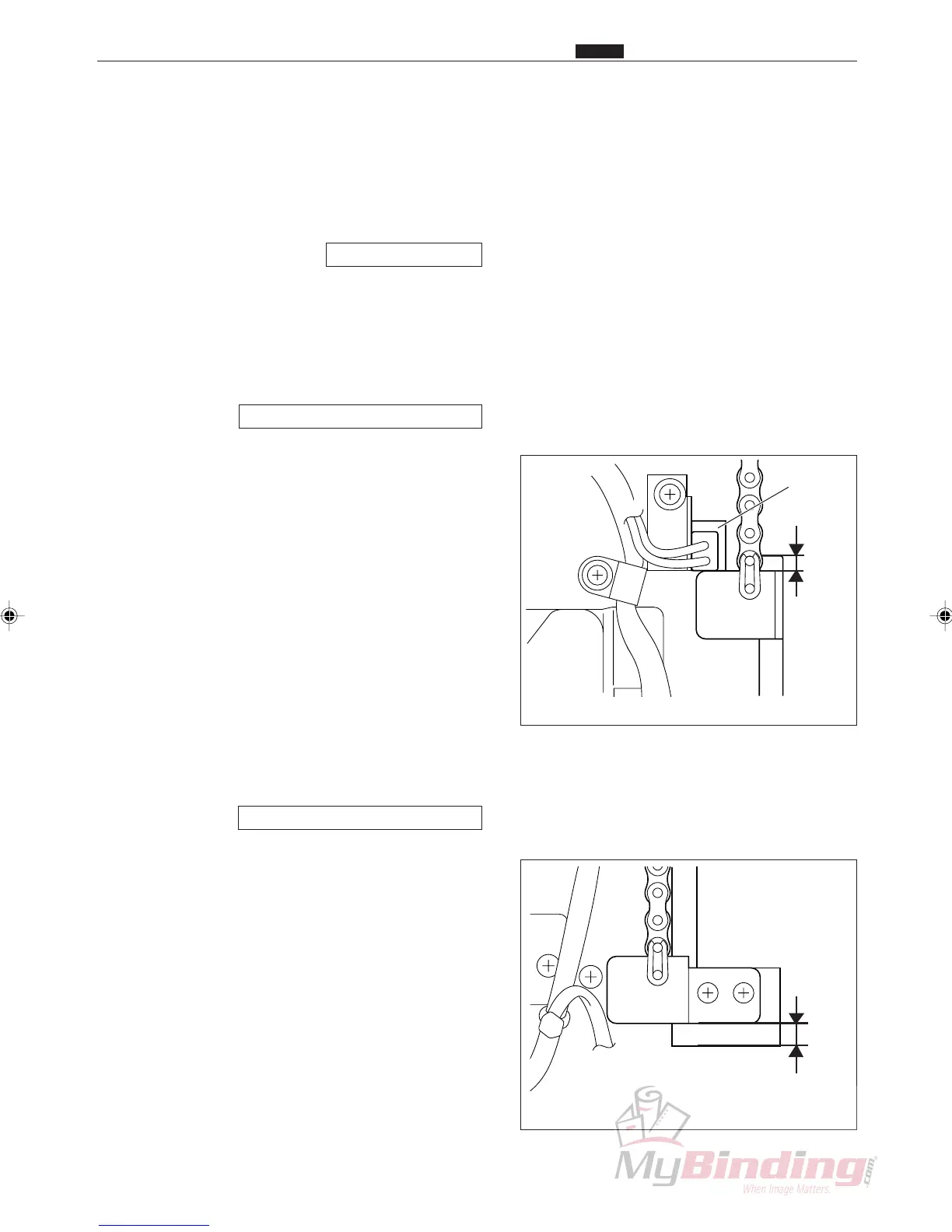

⁄2 Elevator Switch Height Adjustment
Upper
Switch
4 to
5mm
5 to
6mm
⁄2 Elevator Switch Height Adjustment
Chap.4
1. Objective
Adjusting the upper and lower limits of the elevator.
• Removing the Elevator Switch
\See page 54, 55
2. How to make adjustments
• Upper Limit Switch adjustment
q Access H-29.
HELP mode H-29 \ see p.148
w Press the <+> key to adjust the movement of the
Upper Limit Switch (LA028) within the range
shown below.
• Lower Limit Switch adjustment
q Access H-29.
HELP mode H-29 \ see p.148
w Press the <-> key to adjust the movement of the
Lower Limit Switch (LA028) within the range
shown below.
