58

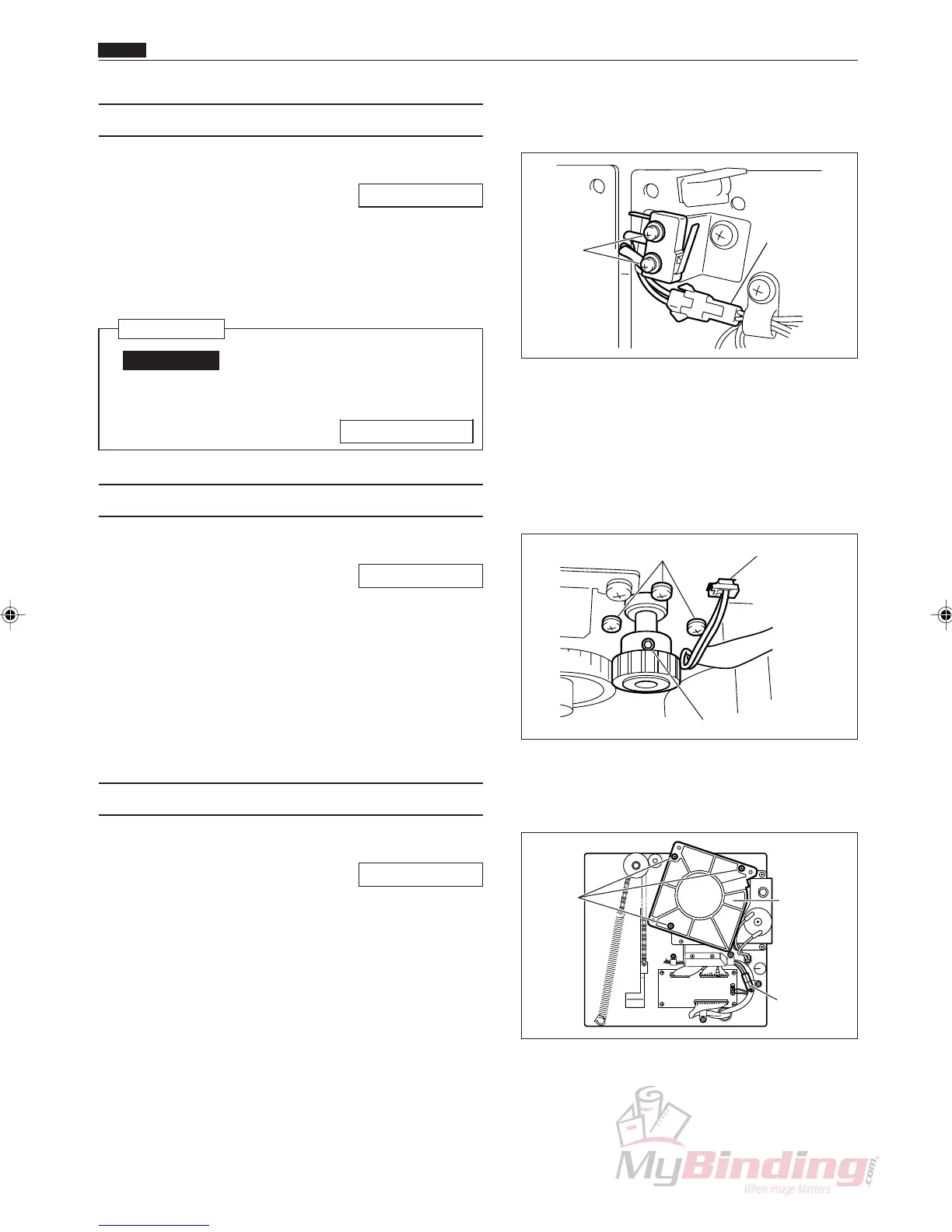

(13) Removing the AF-100 Cover Switch
q Remove the AF-100 cover L unit.
\See page 49
w Remove the connector for the switch. (1 position)
e Take out the 2 screws, and remove the AF-100 cover
switch.
Reinstallation
IMPORTANT:
• Adjust the position in which to install the
AF-100 cover switch.
\See page 112
(14) Removing the Elevator Motor
q Remove the AF-100 cover R unit.
\See page 49
w Loosen the set screws, and remove the motor gear.
e Take out the 3 screws, and remove the motor.
r Remove the connector from inside the frame.
(1 position)
(15) Removing the Fan Motor (Suction)
q Remove the AF-100 cover R unit.
\See page 49
w Remove the connector for the fan motor. (1 position)
e Take out the 3 screws, and remove the fan motor.
Screws
Connector
Screws Connector
Set Screw
Connector
Screws
Fan Motor
Chap.3
x Feed Section
