2. Operation
1) After paper feeding has finished (after the feed
stepping motor stops) the margin slitter returns to the
home position under the following conditions.
q The first process after the power was turned on.
w After all the covers have been opened.
e After the machine stops due to an error.
r There is no paper in the feed tray, after paper is
loaded in the feed tray again.
t After the job has been changed.
2) When the margin slitter moves from the home
position to the position indicated for the job, if the
margin slitter moves 8 mm and light is still not being
transmitted at the slitter sensor, then E5: SLITTER
ERROR is displayed and the machine stops.
\See page 136
Possible range for each slitter
Name Possible range
Left Margin Slitter 0 to 120 mm
Right Margin Slitter 200 to 320 mm
NOTE :
• 3.2 mm is the smallest possible margin
width.

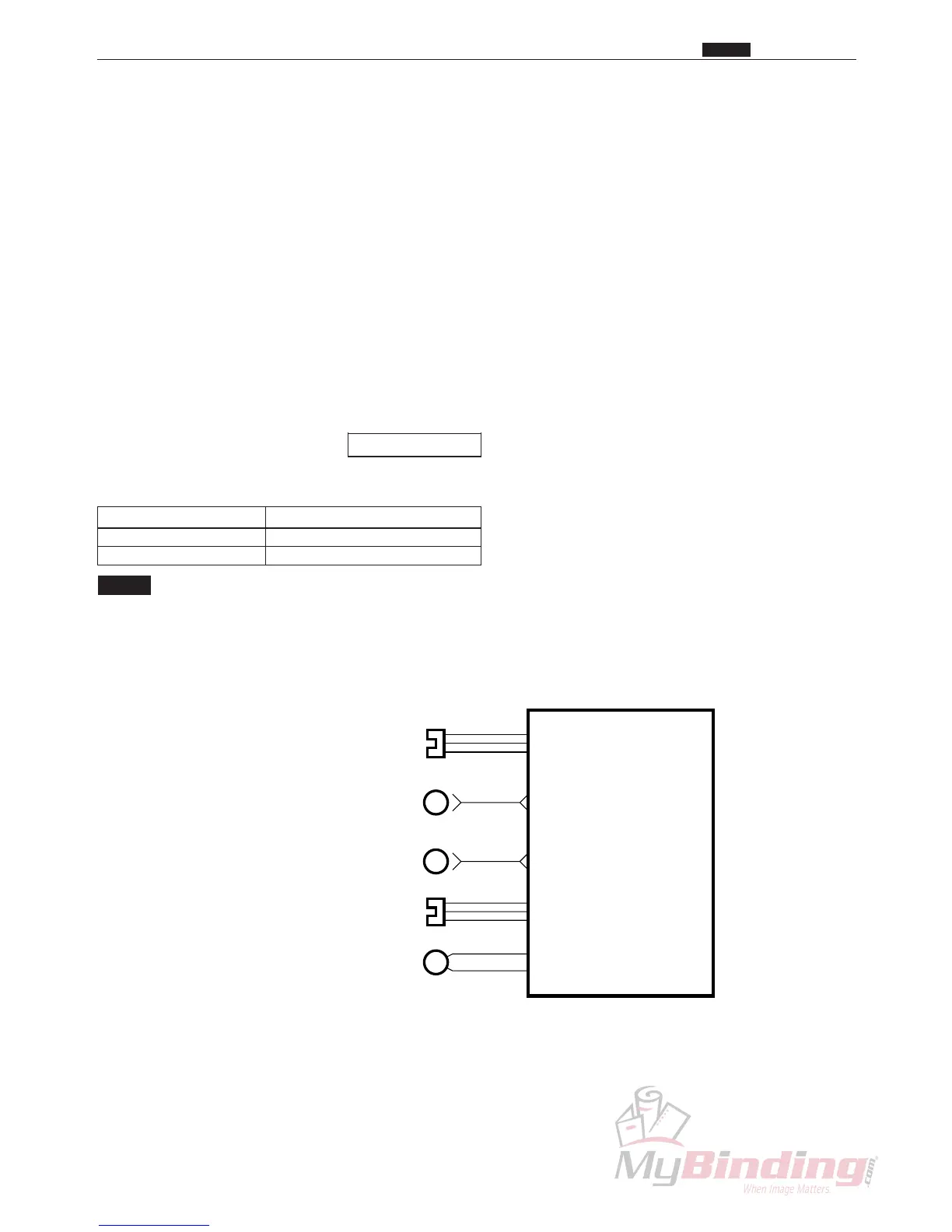

Circuit diagram
Chap.2
c Margin Slitter
CN6-3
-3
-2
CN8-1
3
2
1
BLUE
YELLOW
RED
-6
CN7-1
-4
Main P.W.B. unit
N4-V300*
-23
-22
CN4-21
3
2
1
BLUE
PEACH
RED
M
M
-14
CN3-9
M
~~
Left Margin Slitter Sensor
CA003
Right Margin Slitter Sensor
CA003
Slitter Driving Motor
L8-X1010
Left Margin Slitter Position Motor
M7-X111*
Right Margin Slitter Position Motor
M7-X111*
