56

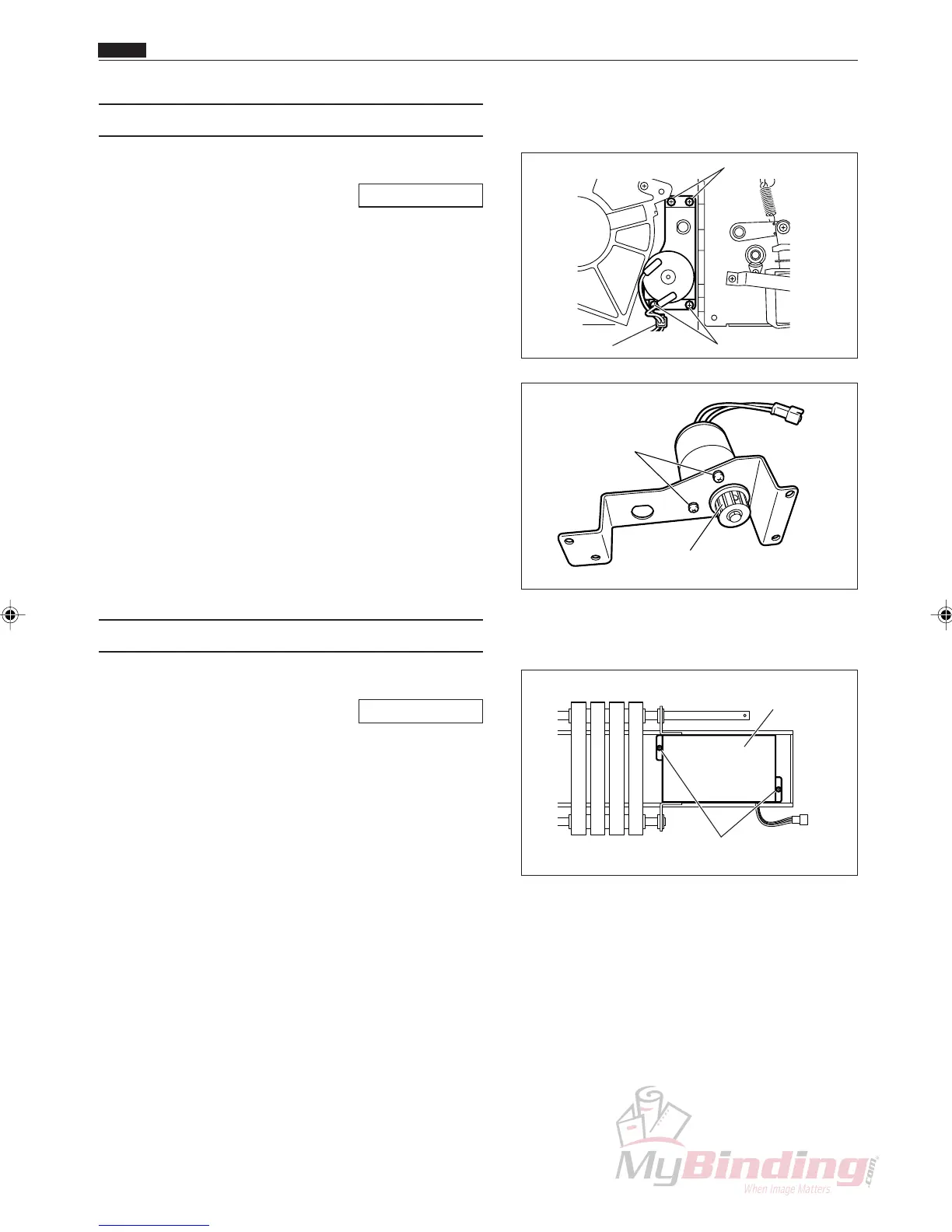

(10) Removing the Feed Motor
q Remove the AF-100 cover R unit.
\See page 49
w Remove the connector for the motor. (1 position)
e Take out the 4 screws, and remove the bracket.
r Loosen the set screws, and remove the pulley unit.
t Take out the 3 screws, and remove the feed motor.
(11) Removing the Shutter Solenoid
q Remove the suction assembly.
\See page 53
w Take out the 2 screws, and remove the lid.
Connector
Blacket & Screws
Blacket & Screws
Pulley Unit & Set Screw
Screws
Screws
Lid
Chap.3
x Feed Section
To Next Page
