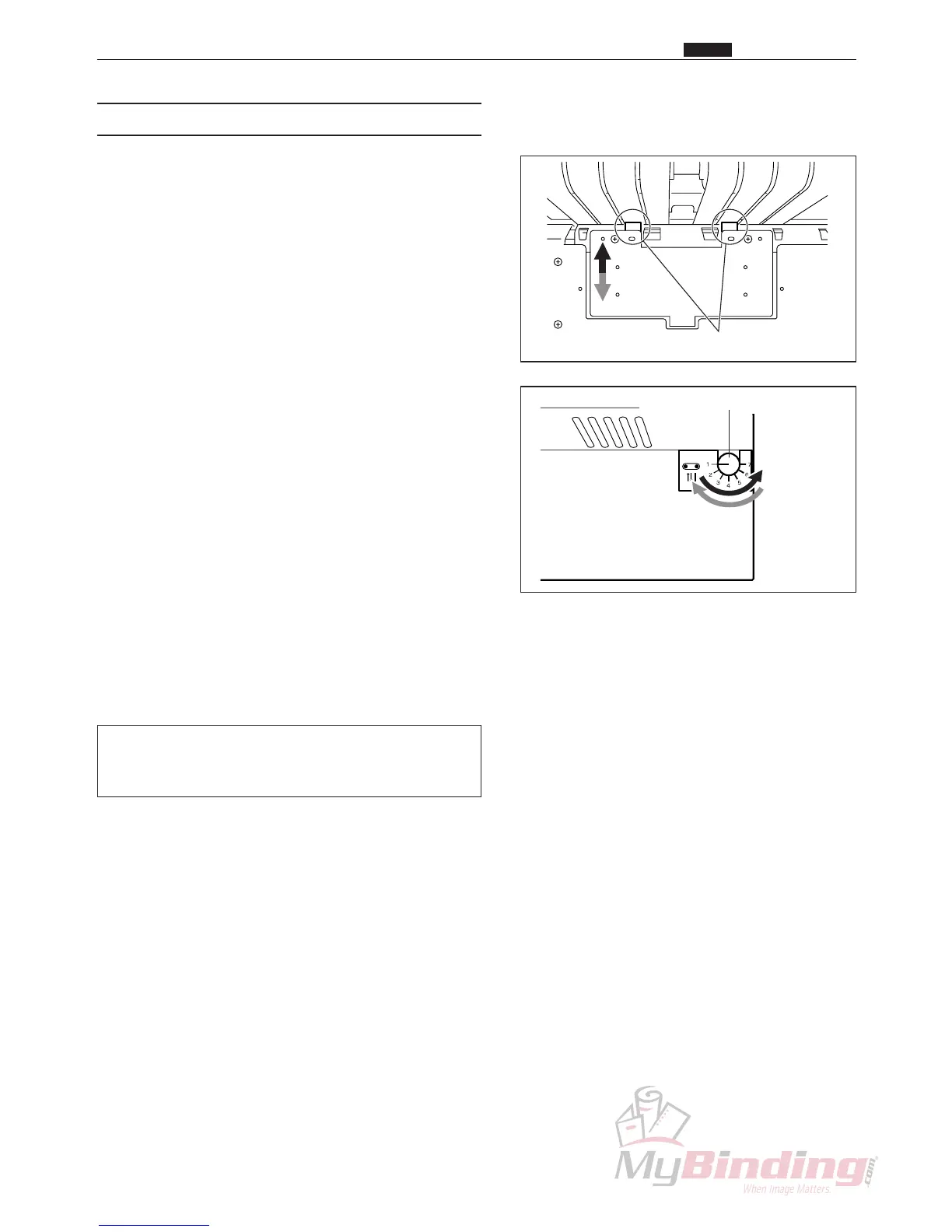

(5) Separator Gap
Description
The separator gap is a mechanism between the separator
and the suction belt that allows paper that is sucked on
to the suction unit to be transferred one sheet at a time
to the paper path.
This gap is regulated by turning the knob to raise and
lower the separator.
Turn the knob so that the numbers increase to make the
gap narrower. The separator rises and the gap narrows.
Turn the knob so that the numbers decrease to make the
gap wider. The separator falls and the gap widens.
Raise the separator if the paper being transferred is
double feed.
Lower the separator if paper is mis-feeding.
Separator
Separator Adjustment Knob
