64
Chap.3
v Margin Slitter Section

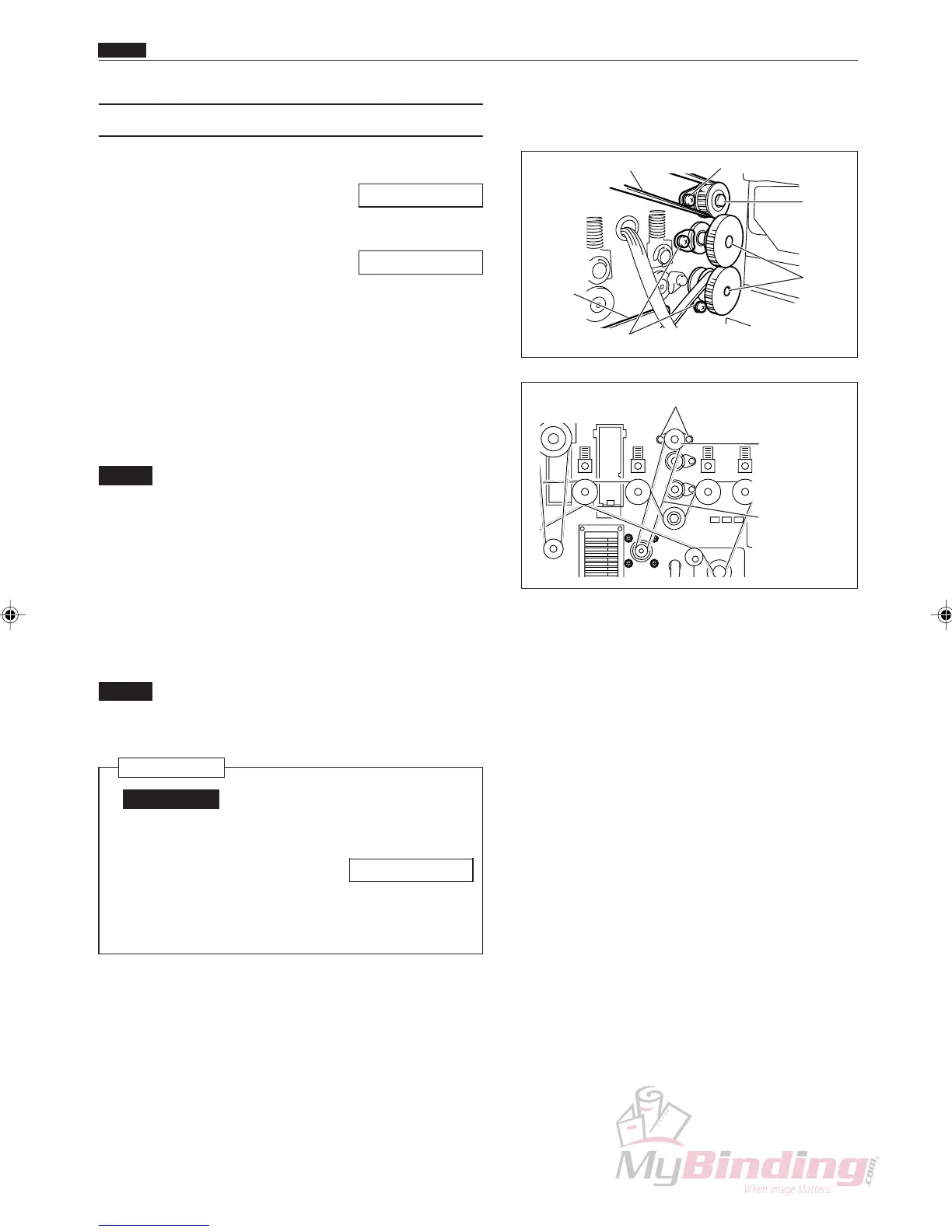

(7) Removing the Left Margin Slitter
q Remove the cover R unit from the DC-545.
\See page 49
w Remove the cover L unit from the DC-545.
\See page 50
e Take out the 1 screw, and remove the clamper on the
operation side. (2 positions)
r Loosen the 4 screws and slide the motor plate
towards the feeder.
t Face the key groove on the shaft downwards, and
pull it out on the operation side. (2 positions)
NOTE :
• Do not drop the bearings from opposite the
operation side into the machinery. (2 posi-
tions)
• Do not drop the left or right margin slitter key
into the machinery. (4 positions)
y Remove the timing belt.
u Take out the 2 screws, and remove the lead screw.
NOTE :
• Do not drop the bush that is on the lead
screw into the machinery.
Reinstallation
IMPORTANT:
• Make adjustments after installing the
slitter.
\See page 95
• Adjust the play in the Lead Screw to be
less than 0.1 mm.
Timing Belt
Motor
Plate
Clamper & Screws
Screws
Lead
Screw
Shafts
Lead Screw
Screws
Timing Belt
To Next Page
