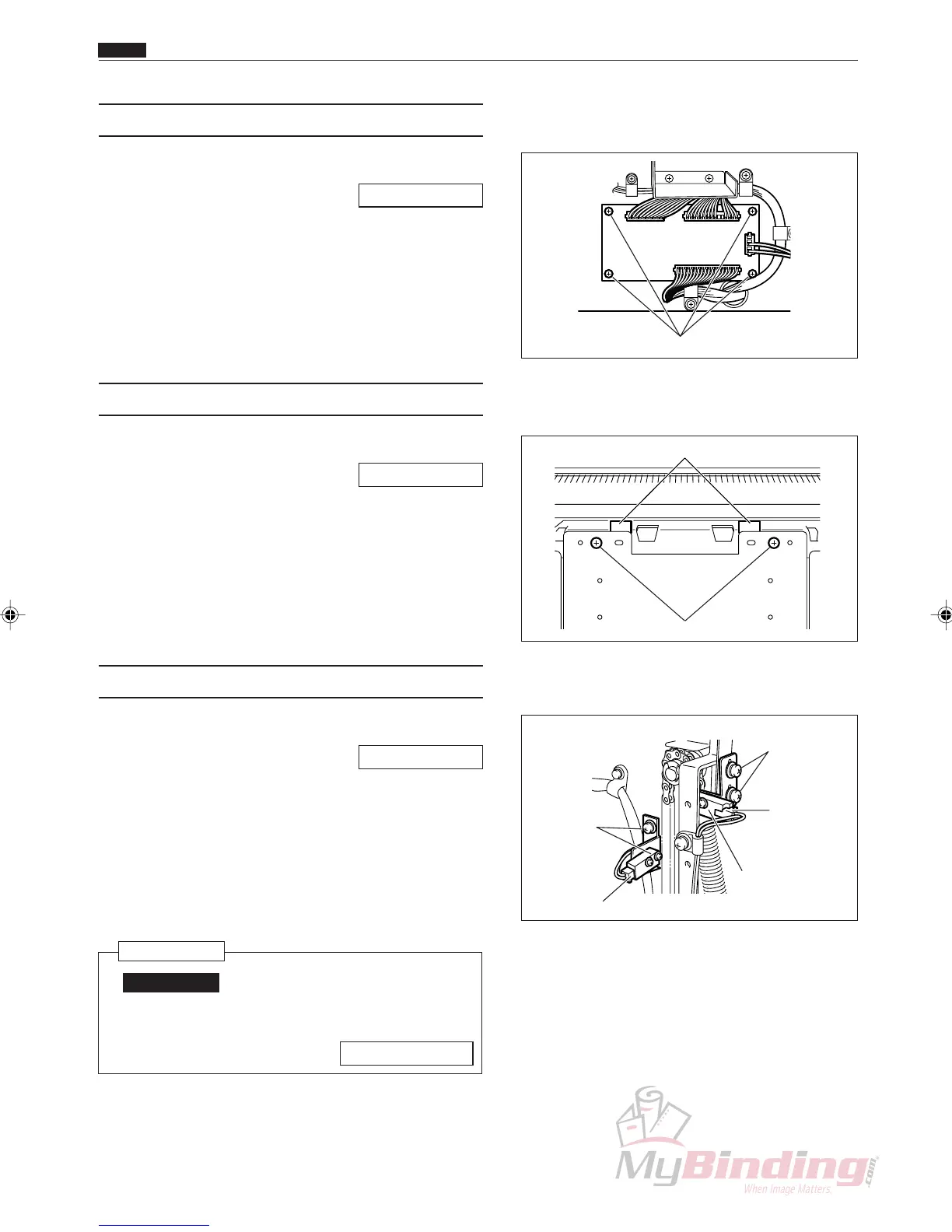

(5) Removing the Feed PCB Unit
q Remove the AF-100 cover R unit.
\See page 49
w Remove the connector for the feed PCB unit.
(4 positions)
e Take out the 4 screws, and remove the feed PCB
unit.
(6) Removing the Separator
q Remove the suction assembly.
\See page 53
w Take out the 2 screws, and remove the separator.
(7) Removing the Elevator Upper Switch
q Remove the AF-100 cover L unit.
\See page 49
w Remove the connector for the upper switch.
(1 position)
e Take out the 2 screws, and remove the angle.
r Take out the 2 screws, and remove the elevator
upper switch.
Reinstallation
IMPORTANT:
• Adjust the position in which to install the
upper switch.
\See page 111
Separator
Screws
Connector
Connector
Upper Angle
& Screws
Elevator Lower
Switch
Lower Angle
& Screws
Chap.3
x Feed Section
Screws
