83

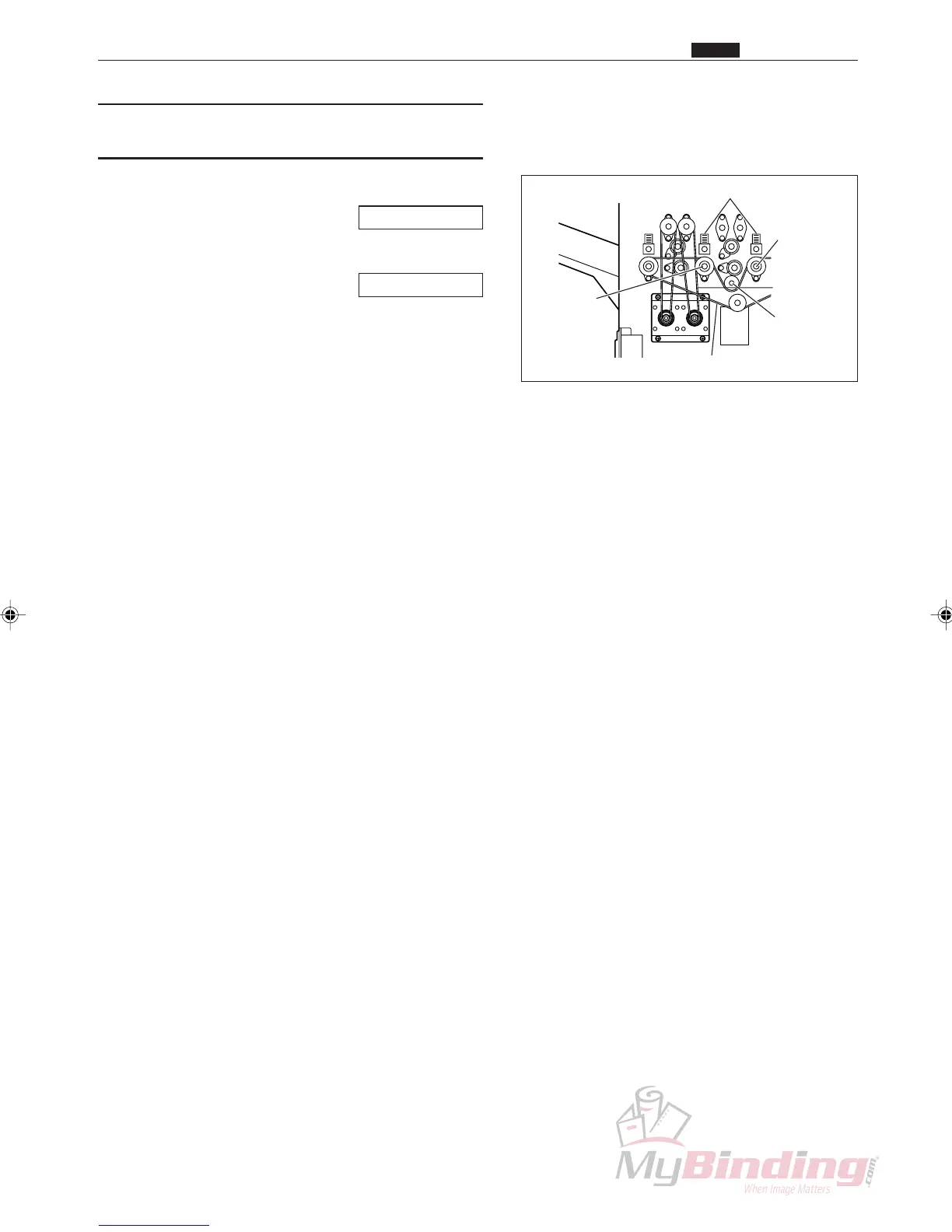

(7) Removing the 6th and 7th Rollers
(Lower)
q Remove the cover R unit from the DC-545.
\See page 49
w Remove the cover L unit from the DC-545.
\See page 50
e Take out the screw, and remove the pillar.
(1 position)
r Remove the main drive belt (rear).
t Loosen the set screws, and remove the pulley unit.
y Open the cover (rear) on the DC-545.
u Remove the spring. (2 positions)
i Remove the E rings from the 6th and 7th rollers
(upper). (2 positions)
o Remove the 6th and 7th rollers (upper).
!0 Take out the screw, and remove the clampers.
(2 positions)
!1 Remove the bearings. (2 positions)
!2 Remove the 6th and 7th rollers (lower).
Pillar
Springs, E-Rings, Bushes
6th Roller
& Bearings
7th Roller
& Bearings
Main Belt (Rear)
, Driving Section
Chap.3
To Next Page
