MyBinding DC-545HC - Margin Slitter Section; Removing the Margin Slitter Driving Motor; Removing the Right Margin Slitter Position Motor

60
Chap.3

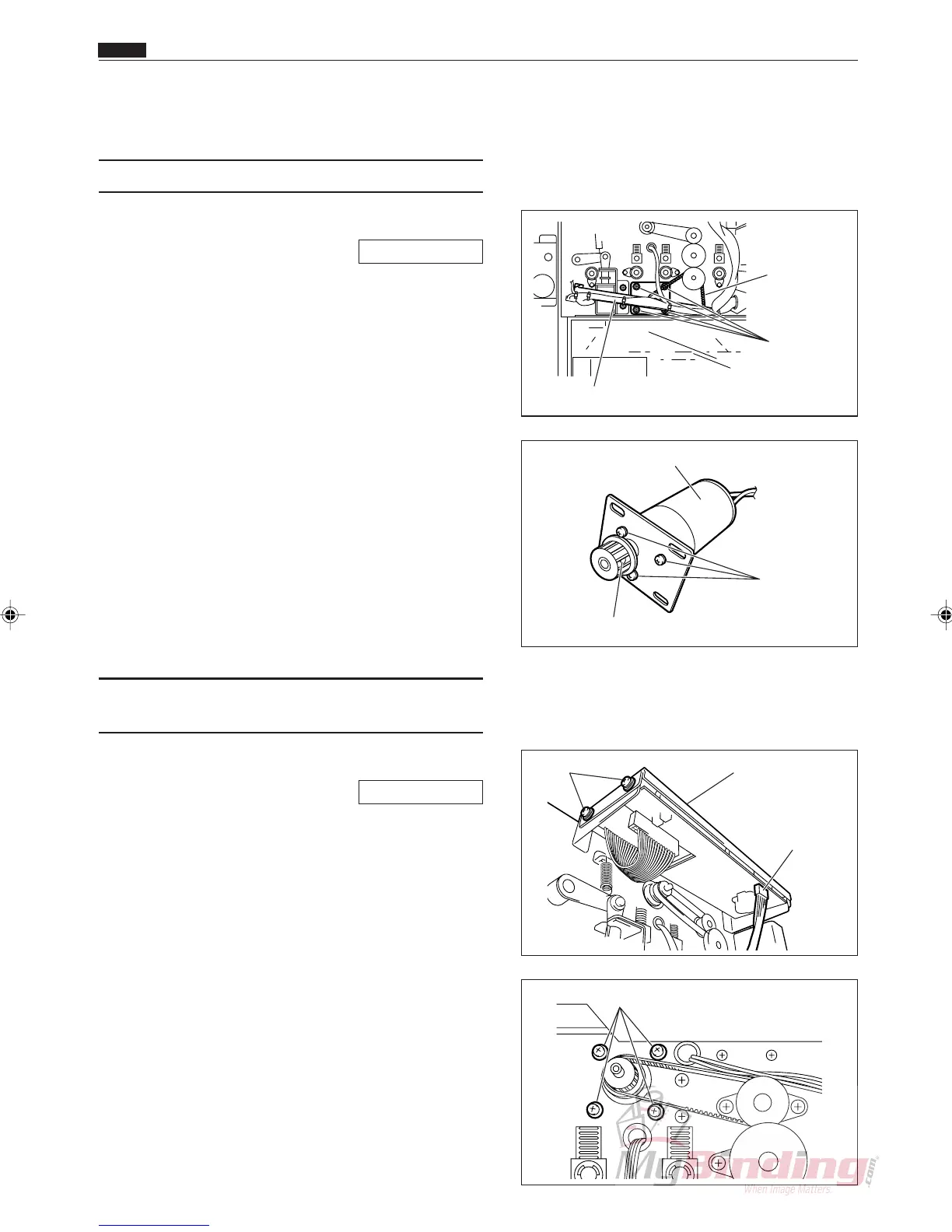

v Margin Slitter Section
v Margin Slitter Section
(1) Removing the Margin Slitter Driving Motor
q Remove the cover R unit from the DC-545.
\See page 49
w Take out the 2 screws, and remove the bundled cable
plate.
e Take out the 4 screws, and remove the margin slitter
driving motor.
r Remove the timing belt.
t Extract the motor, and remove the connector.
(1 position)
y Take out the set screw, and remove the pulley unit.
u Take out the 3 screws, and remove the margin slitter
driving motor.
(2) Removing the Right Margin Slitter
Position Motor
q Remove the cover R unit from the DC-545.
\See page 49
w Take out the 4 screws, and remove the panel bracket.
e Take out the 4 screws, and remove the right margin
slitter position motor.
r Remove the connector for the motor. (1 position)
Screws
Bundled Cable Plate
Timing Belt
Margin Slitter Driving Motor Assembly
Pulley Unit & Set Screw
Screws
Screws
Screws
Connector
Control Plate Assembly
