v Margin Slitter Section
Chap.3

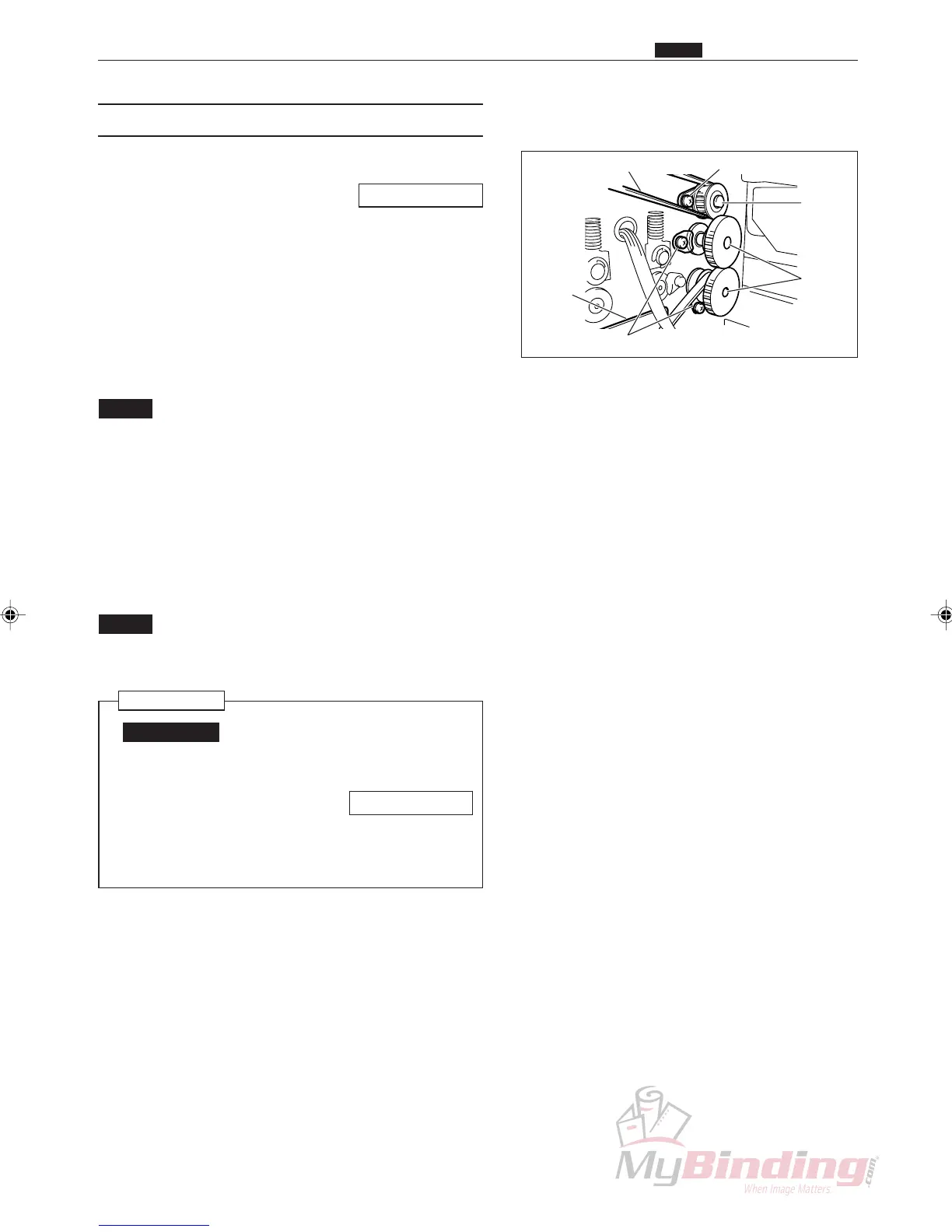

(6) Removing the Right Margin Slitter
q Remove the cover R unit from the DC-545.
\See page 49
w Take out the screw, and remove the clamper.
(2 positions)
e Loosen the 4 screws and slide the motor plate
towards the exit tray.
r Face the key groove on the shaft downwards, and
pull it out on the operation side. (2 positions)
NOTE :
• Do not drop the bearings from opposite the
operation side into the machinery. (2 posi-
tions)
• Do not drop the left or right margin slitter key
into the machinery. (4 positions)
t Remove the timing belt.
y Take out the 2 screws, and remove the lead screw.
NOTE :
• Do not drop the bush that is on the lead
screw into the machinery.
Reinstallation
IMPORTANT:
• Make adjustments after installing the
slitter.
\See page 95
• Adjust the play in the Lead Screw to be
less than 0.1 mm.
Timing Belt
Motor
Plate
Clamper & Screws
Screws
Lead
Screw
Shafts
