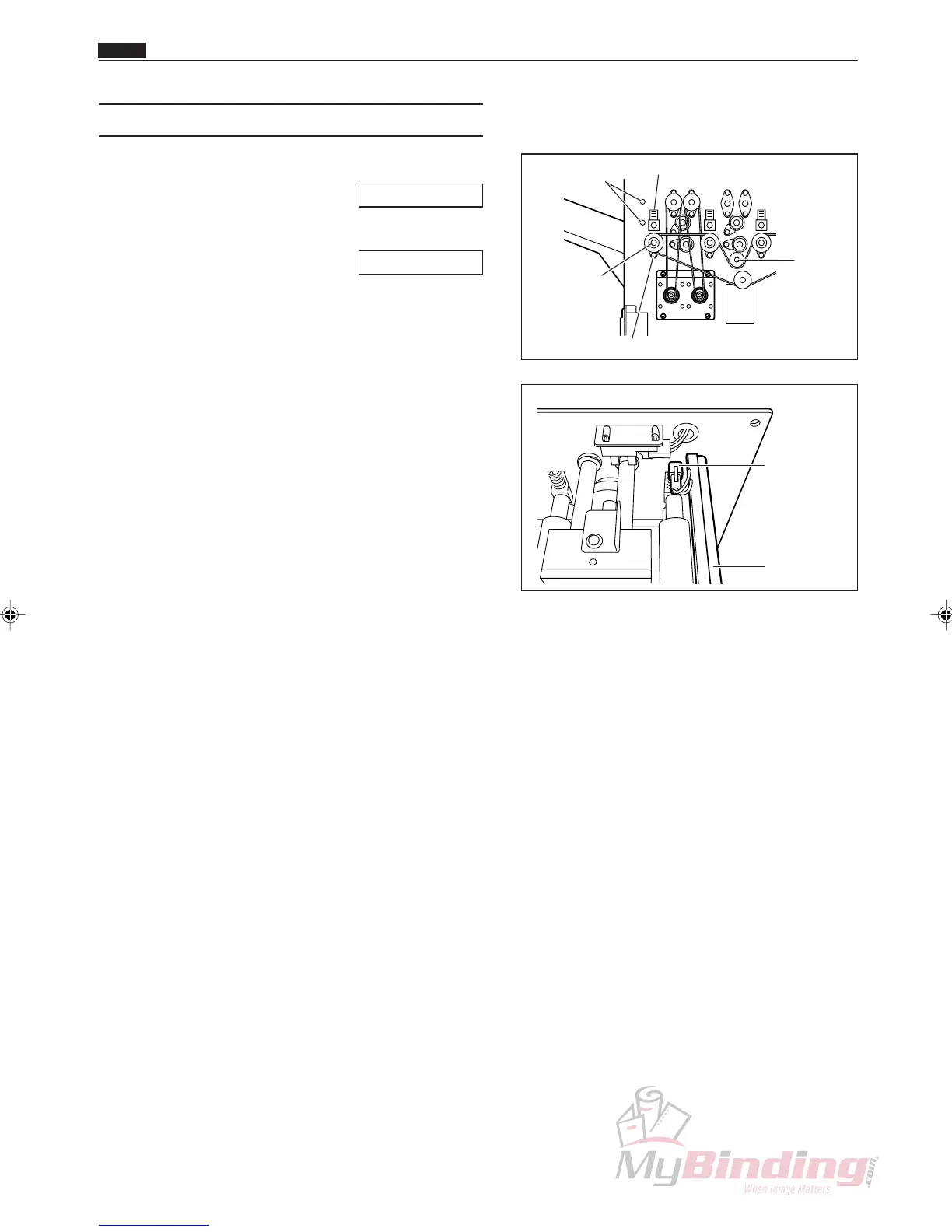

(8) Removing the 8th Roller (Lower)
q Remove the cover R unit from the DC-545.
\See page 49
w Remove the cover L unit from the DC-545.
\See page 50
e Remove the belt tensioner from the main drive belt
(rear).
r Remove the main drive belt (rear).
t Loosen the set screws, and remove the pulley unit.
y Open the cover (rear) on the DC-545.
u Take out the 4 screws, and remove the rear plate.
i Remove the connector for the rear plate. (1 position)
o Remove the spring. (2 positions)
!0 Remove the E rings from the 8th roller (upper).
!1 Remove the 8th roller (upper).
!2 Take out the screw, and remove the clamper.
(2 positions)
!3 Remove the bearings. (2 positions)
!4 Remove the 8th roller. (lower)
Springs & E-Rings & Bushes
Screws
8th Roller
& Bearings
Clampers & Screws
Piller
Connector
Rear Plate
Chap.3
, Driving Section
To Next Page
