b Creaser Unit
Chap.2
b Creaser Unit
1. Description
The paper is creased vertically in relation to the direction the paper is moving.
One crease can be done in approximately 1.5 seconds.
Turning on the power starts the creaser motor in standby in the home position.
2. Operation
1) Main transfer stops temporarily when the paper reaches the crease position.
2) The creaser motor starts and cutting begins.
3) The creaser motor stops when the creaser position sensor goes from off to on, and the main transfer starts
again. If the creaser position sensor does not change (if light is transmitted then it continues to transmit) 2.0
seconds after the creaser motor starts running, then J8: CREASE LOCK is displayed and the machine stops.
\See page 134

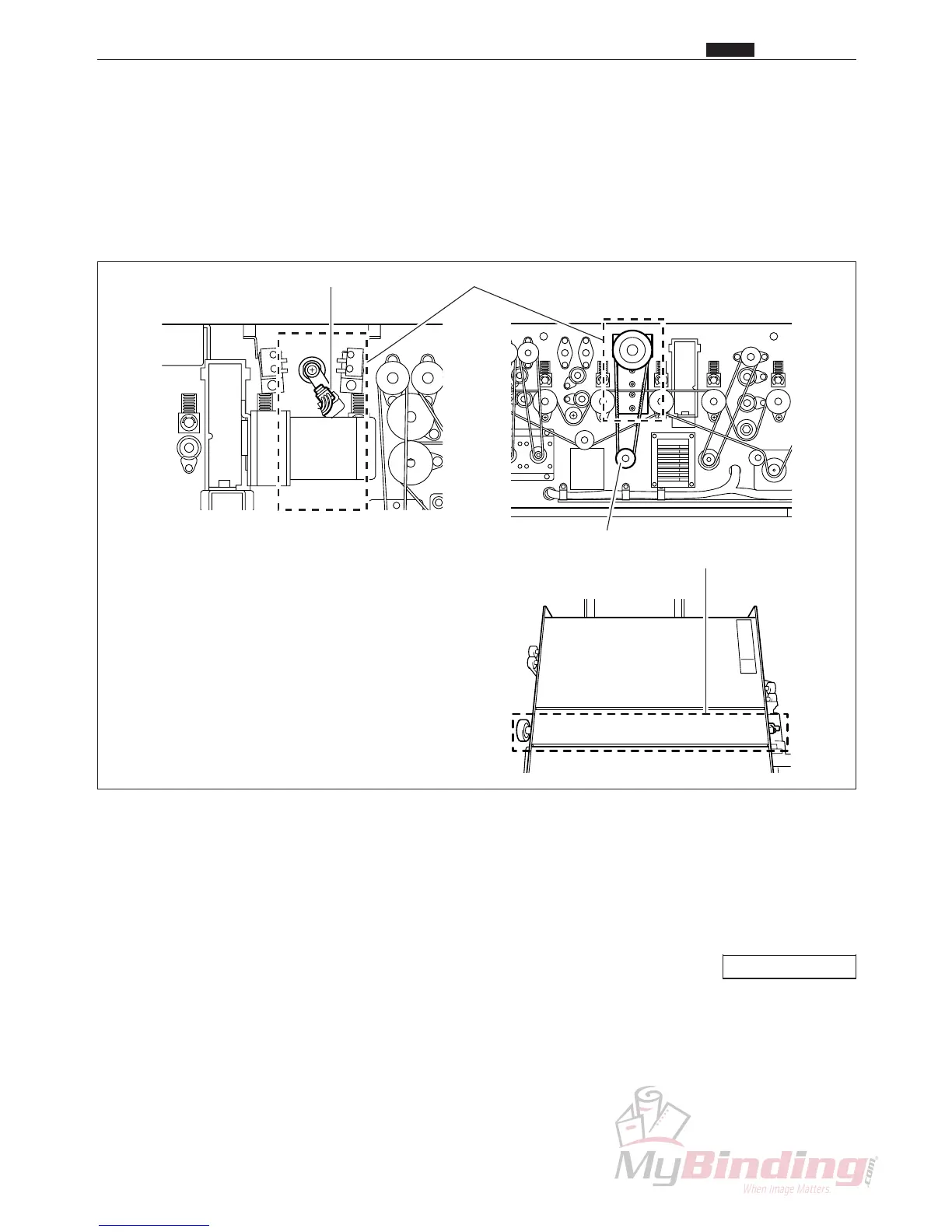

Creaser Position Sensor
Creaser Unit
Creaser Unit
Creaser Motor
