82

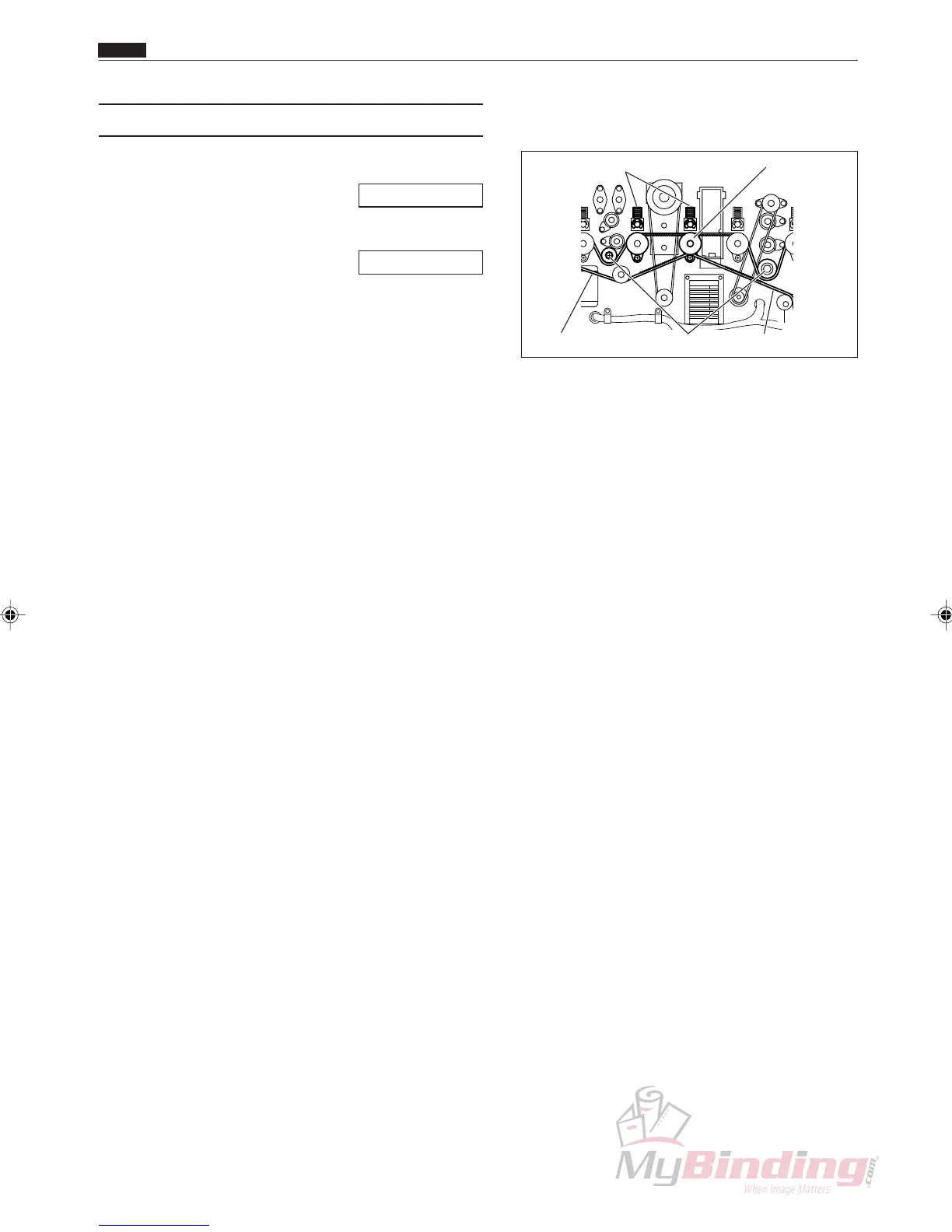

(6) Removing the 5th Roller (Lower)
q Remove the cover R unit from the DC-545.
\See page 49
w Remove the cover L unit from the DC-545.
\See page 50
e Take out the screw, and remove the pillars.
(2 positions)
Remove the main drive belt (front).
r Remove the main drive belt (rear).
t Loosen the set screws, and remove the pulley unit.
y Open the cover (rear) on the DC-545.
u Remove the spring. (2 positions)
i Remove the E rings from the 5th roller (upper).
(2 positions)
o Remove the 5th roller (upper).
!0 Take out the screw, and remove the clampers.
(2 positions)
!1 Remove the bearings. (2 positions)
!2 Remove the 5th roller (lower).
Main Belt (Front)
Springs, E-Rings, Bushes
Main Belt (Rear) Pillar
5th Roller
Chap.3
, Driving Section
