MyBinding DC-545HC - Removing the Left Margin Slitter Position Motor

61
v Margin Slitter Section
Chap.3

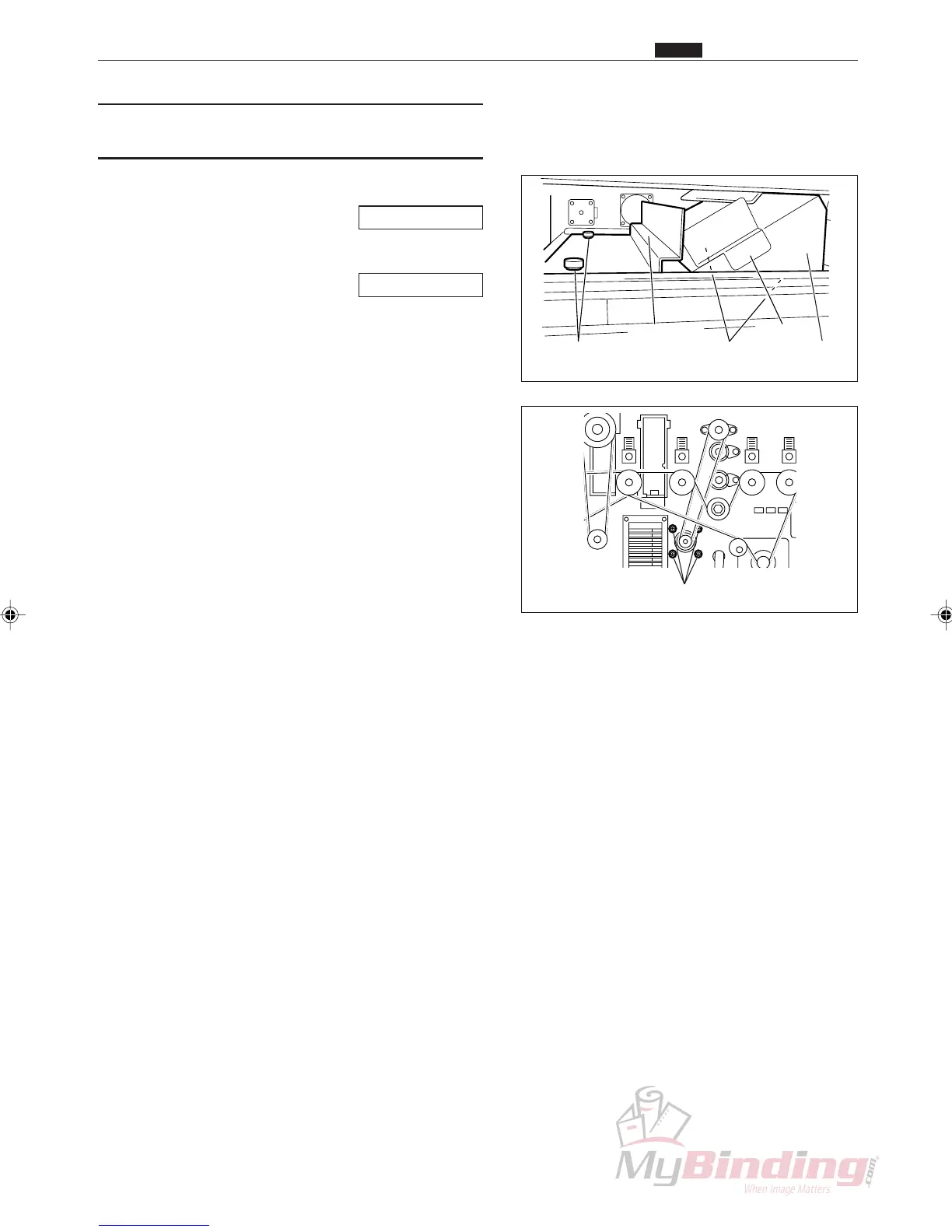

(3) Removing the Left Margin Slitter
Position Motor
q Remove the cover L unit from the DC-545.
\See page 50
w Take out the 6 screws, and remove the lid.
\See page 50
e Open the door in the stand, and remove the waste
tray.
r Take out the 2 screws, and remove the cover.
t Undo the thumb screws, and remove the guide unit.
y Remove the connector for the motor. (1 position)
u Take out the 4 screws, and remove the left margin
slitter position motor.
Guide
Guide Unit
Thumb
Screws
Screws Cover
Screws
