MyBinding DC-545HC - Removing the Margin Slitters Upper Blade

65
v Margin Slitter Section
Chap.3

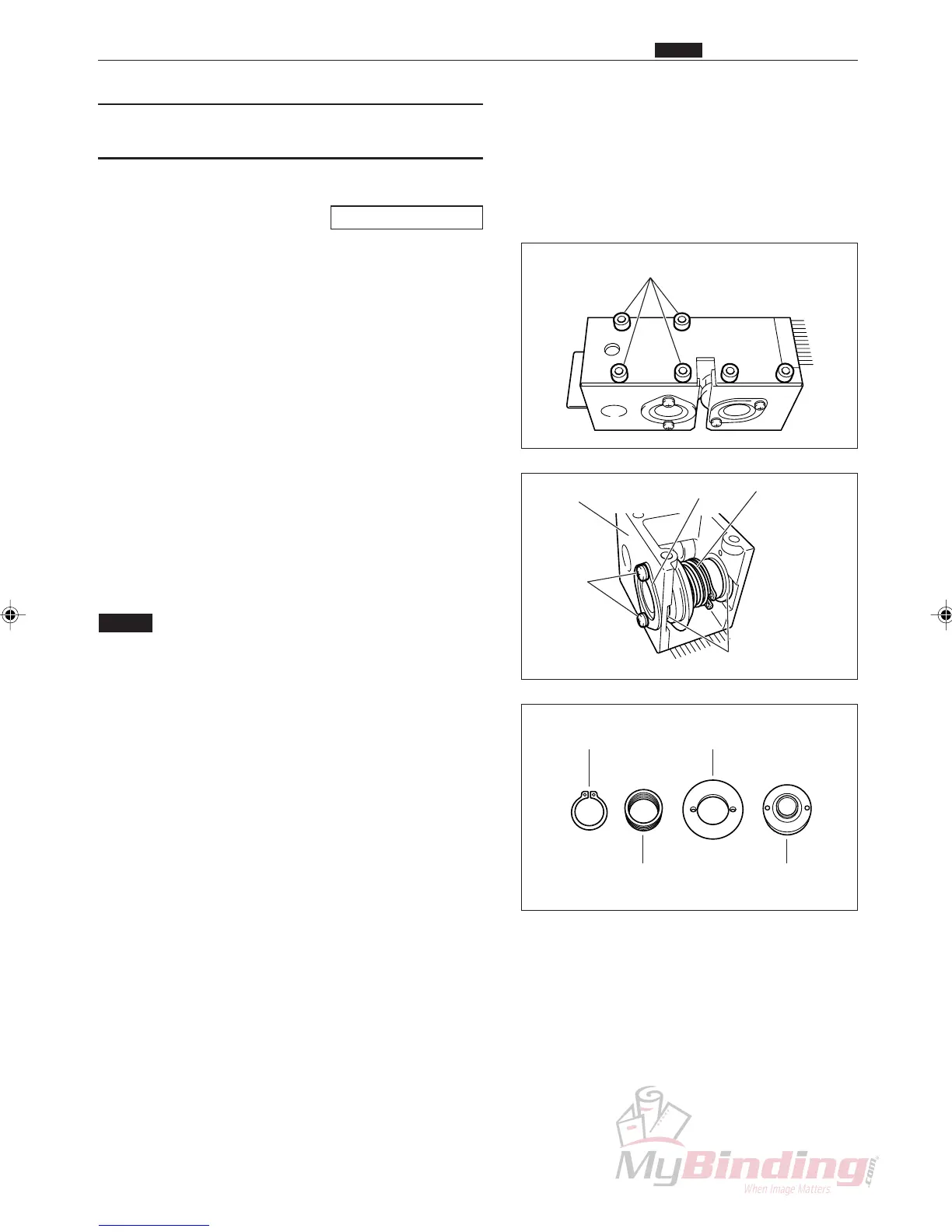

(8) Removing the Margin Slitter’s Upper
Blade
q Remove the right margin slitter, left margin slitter.
\See page 63, 64
w Take out the 4 screws, and remove the upper
assembly.
e Take out the 2 screws from the upper assembly, and
remove the lid. (2 positions)
r Remove the bearings. (2 positions)
t Remove the upper blade assembly.
NOTE :
• Be careful not to cut yourself on the edge of
the blade.
y Remove the C-clip, and then remove the disk,
spring, and the upper blade.
Screws
Upper Assembly Lid Upper Blade
Assembly
Screws
Bearings
Boss
C-Clip
Spring
Upper Blade
