Chap.2
z Paper Feed Unit

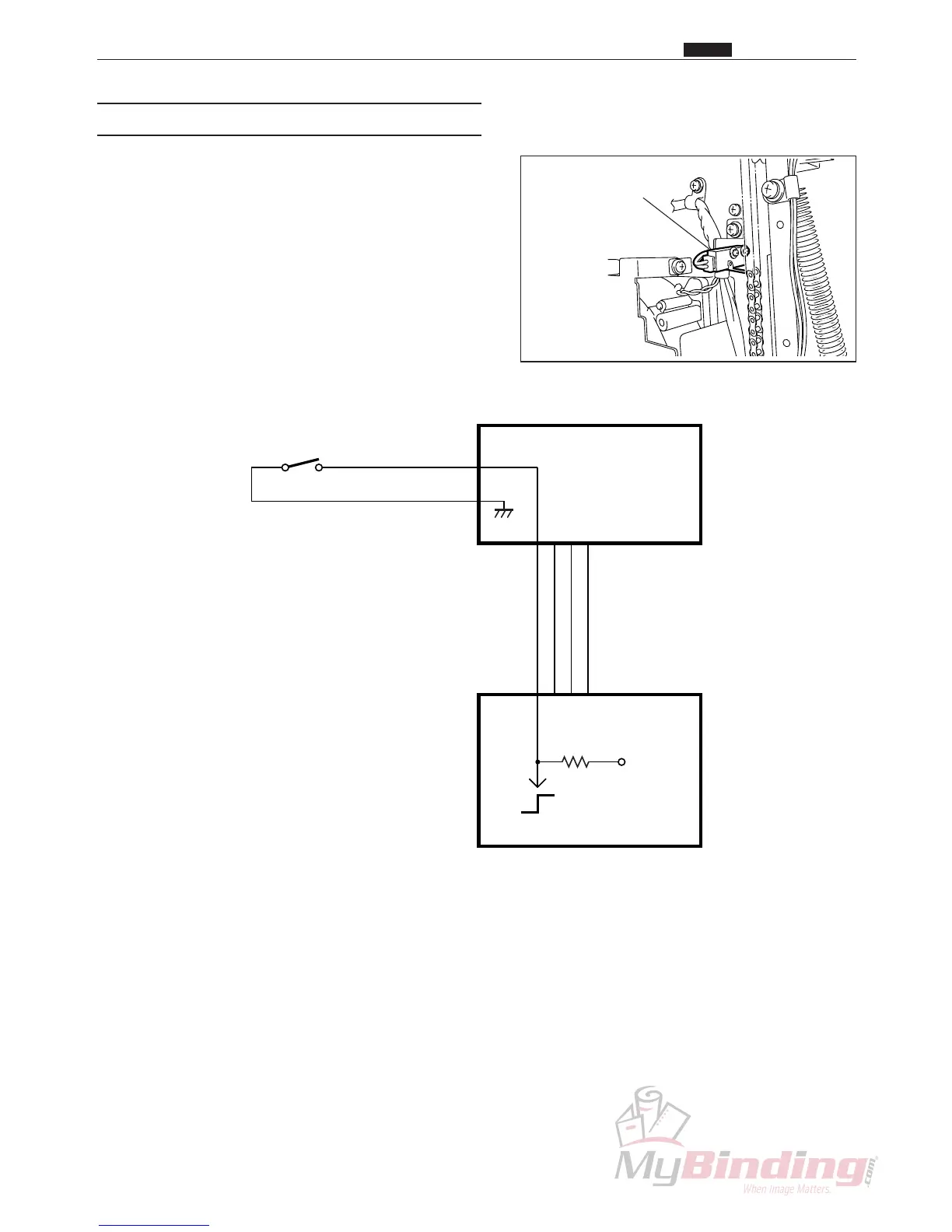

(7) Elevator Upper Switch
Description
The feed tray stops when the angle that is attached to
the chain that raises and lowers the feed tray turns the
micro switch on.
The feed tray is determined to be at its upper limit when
the micro switch is on, and the feed tray will not rise
any higher.
Circuit diagram
Elevator Upper SW
PURPLE
PURPLE
CN4-3
-4
Elevator Upper SW
5V
GND GND
CN1-9CN1-9
-11
-12
CN11-10
-11
-12 -17
ELEVATOR UPPER SW
LA028
Feed P.W.B. unit N4-V303*
Main P.W.B. unit N4-V300*
0
5V
5V
ON:0V
OFF:5V
