MyBinding DC-545HC - Center Left Slitter

75

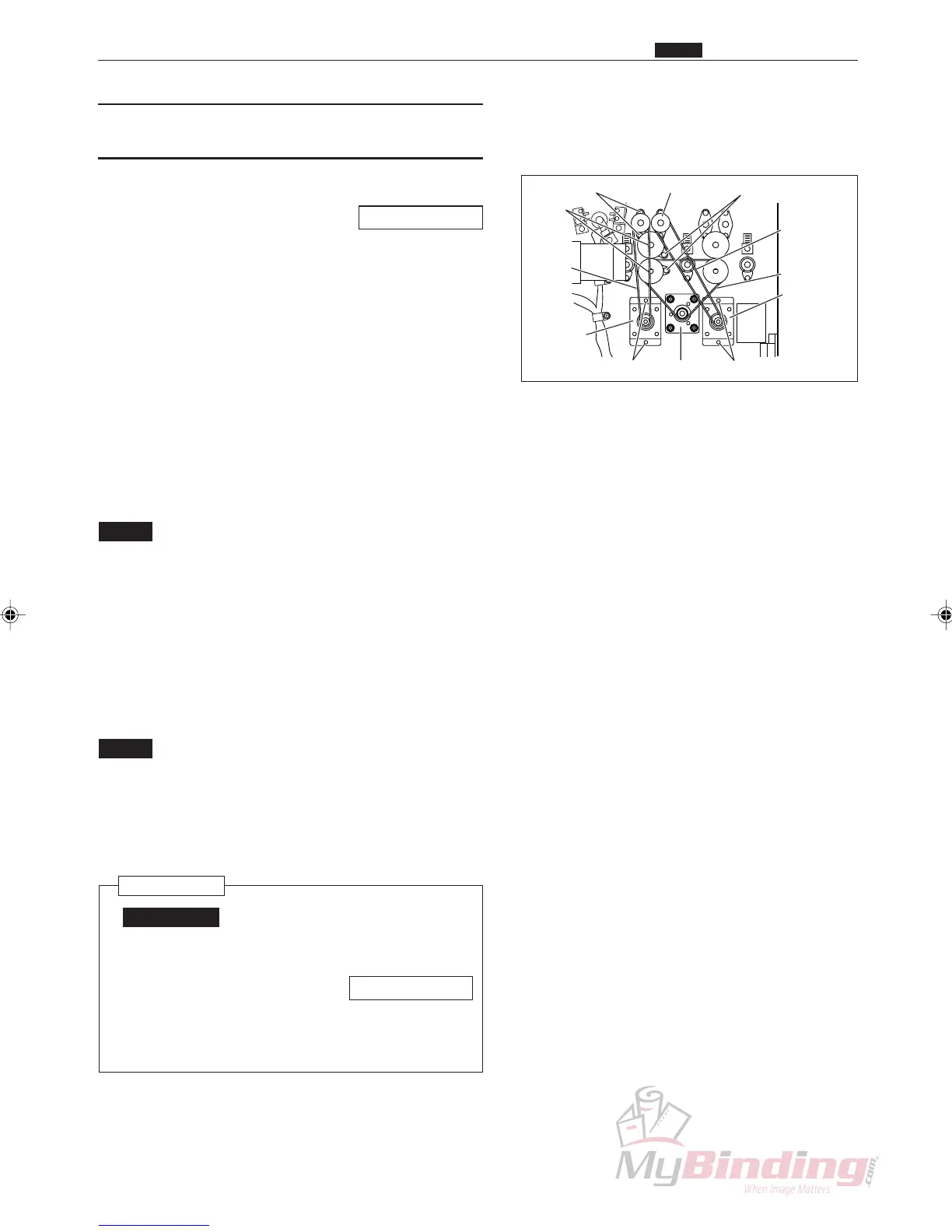

(10) Removing the Center Right Slitter and
Center Left Slitter
q Remove the cover R unit from the DC-545.
\See page 49
w Loosen the 2 screws on the center right (left) slitter
motor plate, and remove the position belt.
(2 positions)
e Loosen the 4 screws on the motor plate, and remove
the timing belt. (1 position)
r Take out the screw, and remove the clamper.
(2 positions)
t Face the key groove on the shaft downwards, and
pull it out on the operation side.
(2 positions)
NOTE :
• Do not drop the bearings from opposite the
operation side into the machinery.
(2 positions)
• Do not drop the center right slitter or center
left slitter keys into the machinery.
(4 positions)
y Take out the 2 screws, and remove the lead screw.
(2 positions)
NOTE :
• Do not drop the collar or disc that are on the
lead screw into the machinery.
• Do not install the center right slitter and the
center left slitter in the wrong positions
during assembly.
Reinstallation
IMPORTANT:
• Make adjustments after installing the
slitter.
\See page 95
• Adjust the play in the Lead Screw to be
less than 0.1 mm.
Shafts
Screws
Lead Screw
Clampers & Screws
Position Belt
Timing Belt
Center Right
Slitter Motor
Plate
ScrewsScrews Motor Plate
Center Left
Slitter Motor
Plate
Position
Belt
m Center Slitter Section
Chap.3
