62
Chap.3
v Margin Slitter Section
(4) Removing the Right Margin Slitter
Sensor
q Open the cover (front) of the DC-545.
w Remove the connector for the sensor. (1 position)
e Remove the right margin slitter sensor from the
angle.
Reinstallation
IMPORTANT:
• Make adjustments after installing the
sensor.
\See page 95

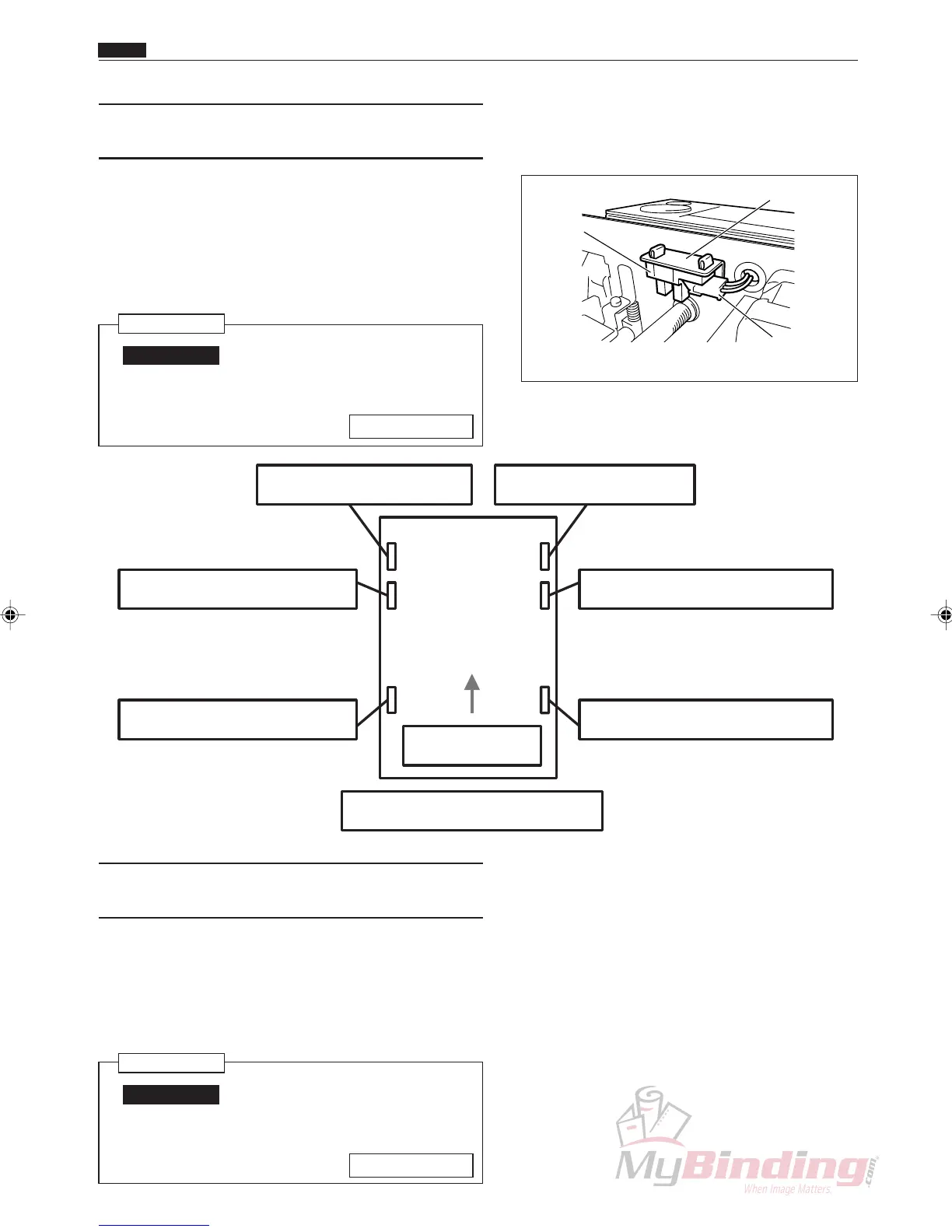

This image shows the right margin slitter sensor.
Sensor
Angle
Connector
Feed Direction
Optional 1 Slitter Sensor Optional 2 Slitter Sensor
Center Left Slitter Sensor Center Right Slitter Sensor
Left Margin Slitter Sensor Right Margin Slitter Sensor
DC-545 Position Sensor Layout
(5) Removing the Left Margin Slitter
Sensor
q Open the cover (front) of the DC-545.
w Remove the connector for the sensor. (1 position)
e Remove the left margin slitter sensor from the angle.
Reinstallation
IMPORTANT:
• Make adjustments after installing the
sensor.
\See page 95
