MyBinding DC-545HC - Removing the 1 St Roller (Lower); Removing the 2 Nd and 3 Rd Rollers (Lower)

80

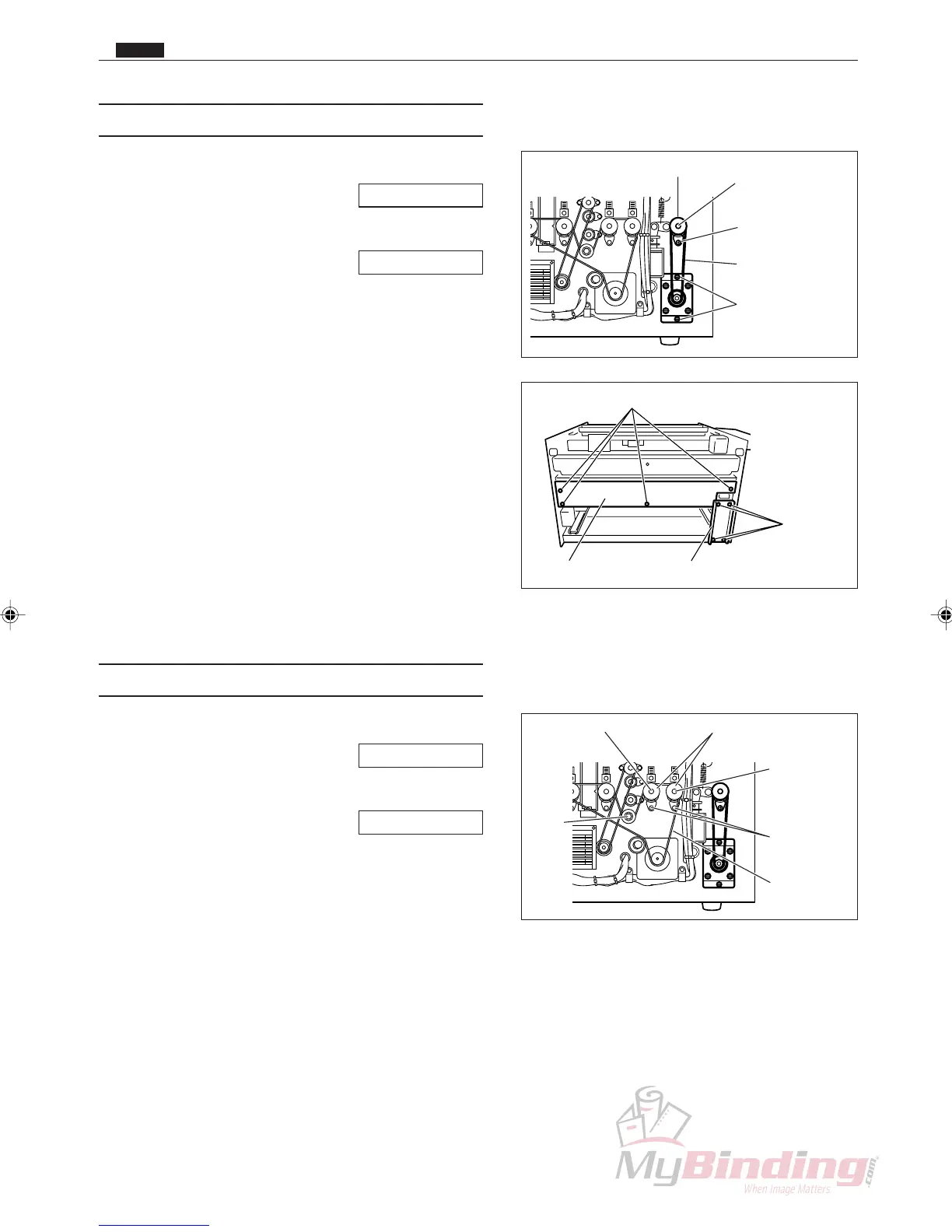

(3) Removing the 1st Roller (Lower)
q Remove the cover R unit from the DC-545.
\See page 49
w Remove the cover L unit from the DC-545.
\See page 50
e Take out the 2 screws, and remove the motor plate.
r Remove the belt.
t Loosen the set screws, and remove the pulley unit.
y Take out the 4 screws, and remove the auxiliary
plate.
u Take out the 4 screws, and remove the lid.
i Take out the screw, and remove the clamper.
(2 positions)
o Remove the bearings. (2 positions)
!0 Remove the 1st roller.
(4) Removing the 2nd and 3rd Rollers (Lower)
q Remove the cover R unit from the DC-545.
\See page 49
w Remove the cover L unit from the DC-545.
\See page 50
e Take out the screw, and remove the pillar.
r Remove the main belt (front).
t Loosen the set screws, and remove the pulley unit.
y Take out the 4 screws, and remove the auxiliary plate.
u Take out the 4 screws, and remove the lid.
i Take out the screw, and remove the clamper.
(2 positions)
o Remove the bearings. (4 positions)
!0 Remove the 2nd and 3rd Roller.
Pulley Unit & Set Screw
1st Roller
& Bearings
Clamper & Screw
Timing Belt
Motor Plate
& Screws
Screws
Screws
Lid Auxiliary Plate
Main Belt
3rd Roller
& Bearings
Pillar
Pulley Units
& Set Screws
2nd Roller
& Bearings
Clampers
& Screws
Chap.3
, Driving Section
