36

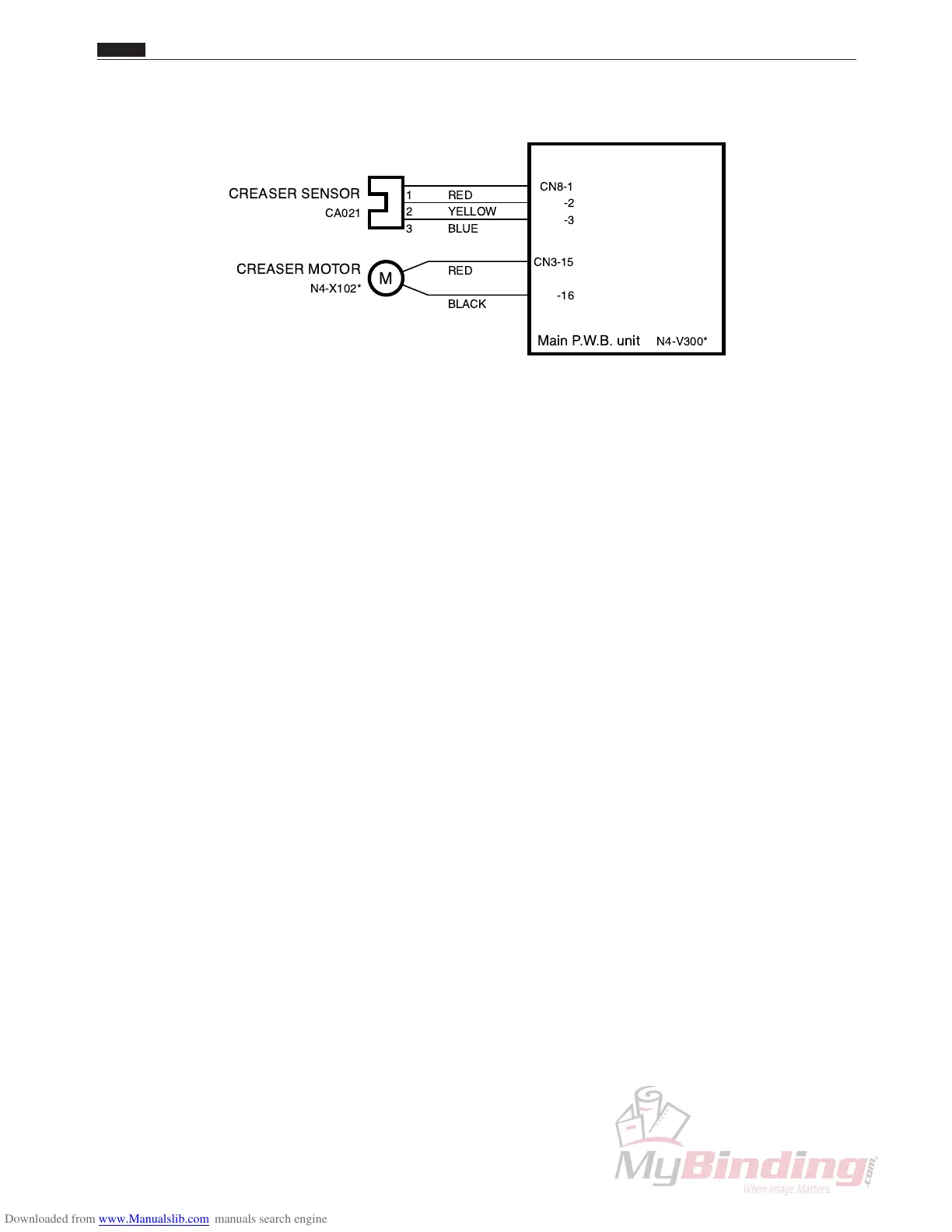

Circuit diagram
Chap.2
b Creaser Unit
RED
BLUE
YELLOW
1
3
2
CN8-1
-2
-3
Main P.W.B. unit N4-V300*
RED
BLACK
CN3-15
-16
CREASER MOTOR
N4-X102*
CREASER SENSOR
CA021
M
