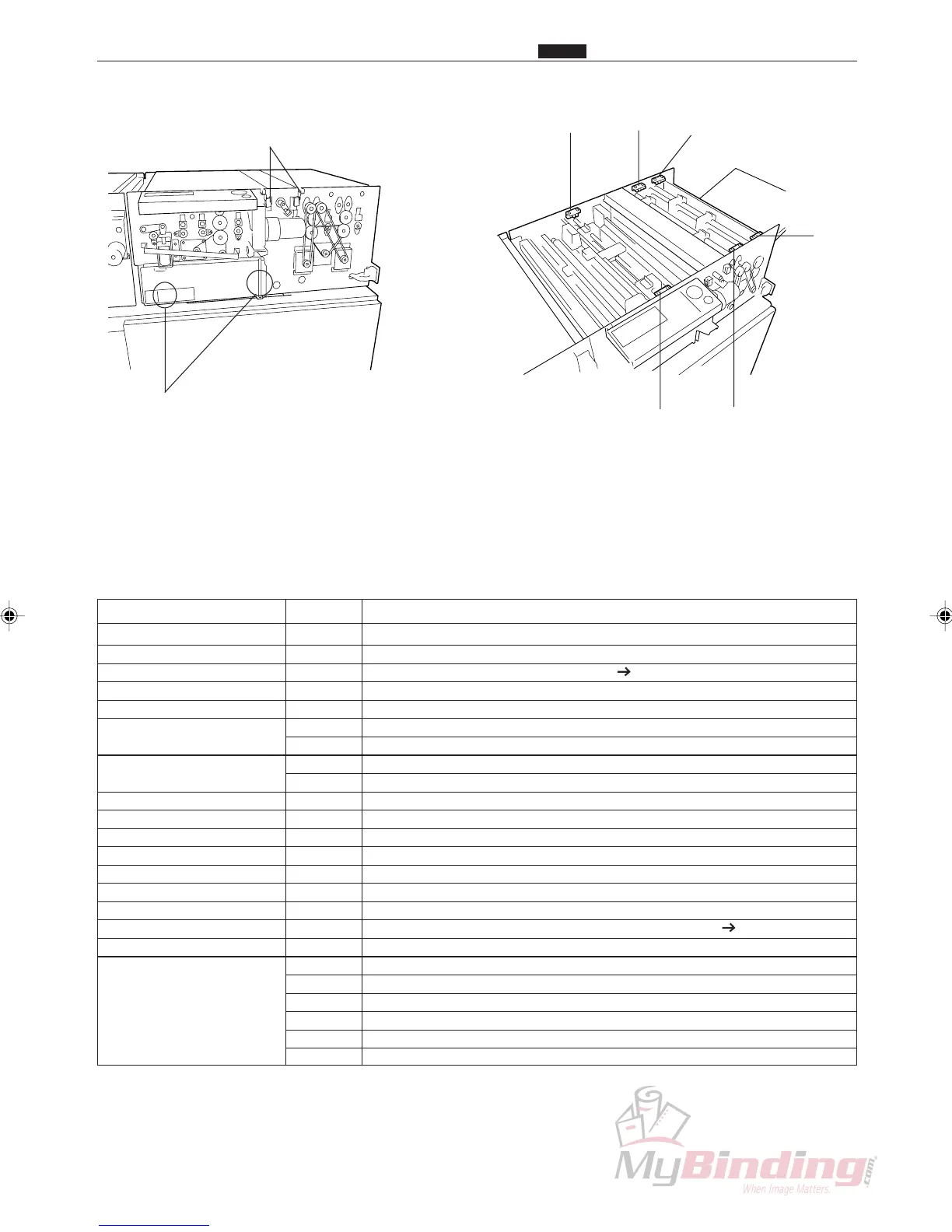

Part name Number Function
Operation panel and display
Switch to turn on the power
DC power supply (AC 100 to 240 V DC 24 V)
Main motor
Driver for the main motor
Slitter drive motor
Feed stepping motor
Margin slitter drive motor
Center slitter drive motor
Cutter drive motor
Score drive motor
For reading the bar codes and reg. marks
For saving job data
For controlling the DC-545
For controlling the gate (not used by DC-545HC)
Paper feed solenoid
Printed wiring board for the power supply (DC 24 V DC 5 V & 24 V)
For detecting cutter motor interlock and whether the cover is open or closed
Home position for the left margin slitter
Home position for the right margin slitter
Home position for the left center slitter
Home position for the right center slitter
Home position for the OP1 slitter
Home position for the OP2 slitter
Panel P.W.B. unit
Power switch
Switching power supply
Stepping motor
Motor driver
Stepping motor
Gear motor
DC Gear motor
DC Gear motor
CCD sensor
Memory P.W.B. unit
Main P.W.B. unit
Solenoid
Solenoid
Power P.W.B. unit
Micro Switch
Photo Micro Switch
19
21
23
24
2220
18
18(Interior)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
x Position and Function of Electronic Parts
