Firewall Protection
142
NETGEAR ProSAFE VPN Firewall FVS318G v2

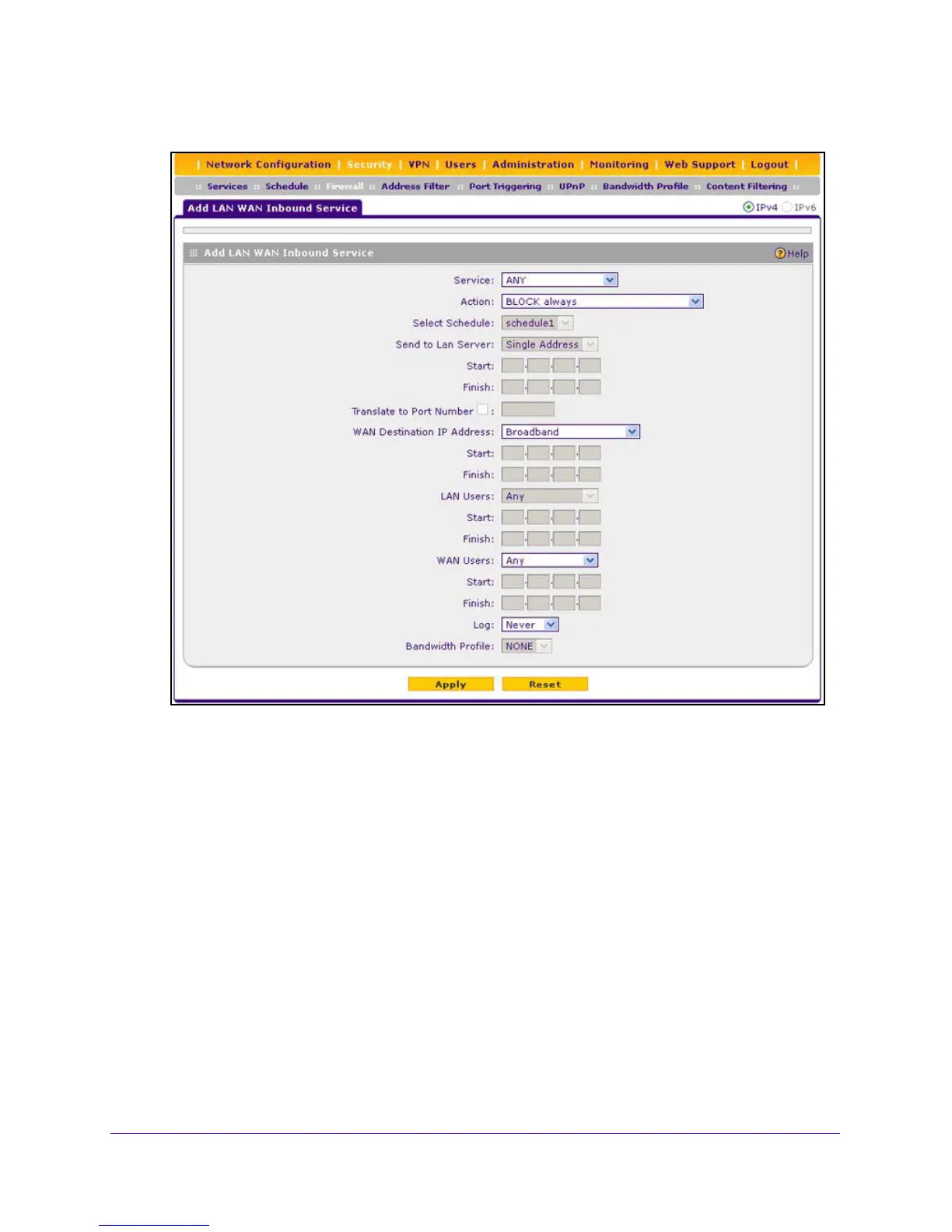

3. Under the Inbound Services table, click the Add table button.
4. Enter the settings as described in T
able 30 on page 131.
In addition to selections from the Service, Action, and Log list
s, you must make
selections from the following lists:
• W
AN Destination IP Address
• LAN Users
(This list is available only when the WAN mode is classical routing. When
the WAN mode is NAT, your network presents only one IP address to the Internet.)
• WAN Users
Unless your selectio
n from the Action
list is BLOCK always, you also must make
selections from the following lists:
• Select Sc
hedule
• Send to Lan Server
The f
ollowing configuration is optional:
• Translate to Port Number
• Bandwidth Profile
To Next Page
