Firewall Protection
151
NETGEAR ProSAFE VPN Firewall FVS318G v2

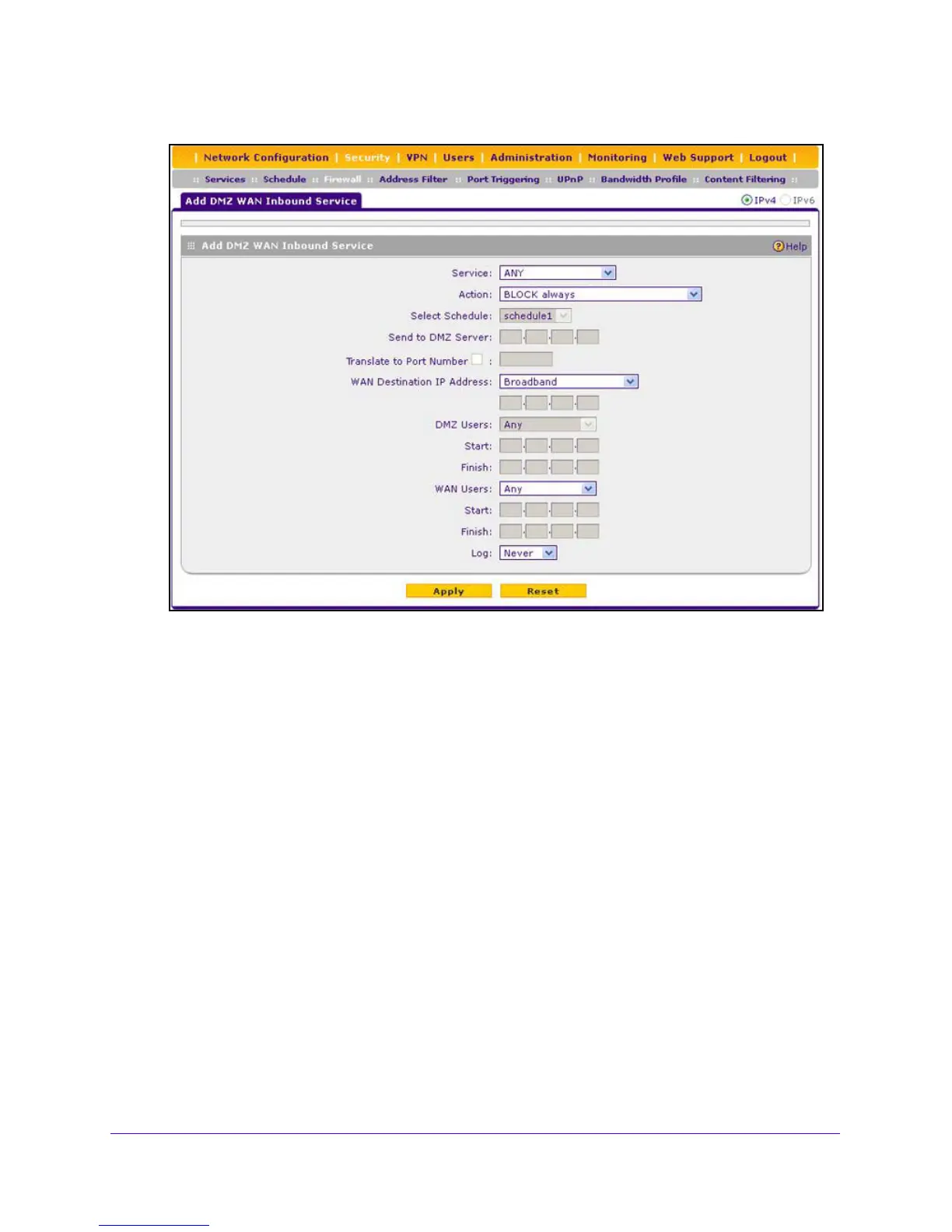

3. Click the Add table button under the Inbound Services table.
4. Enter the settings as described in T
able 30 on page 131.
In addition to selections from the Service, Action, and
Log lists, you must make
selections from the following lists:
• WAN Destination IP Address
• DMZ Users (This list is
available only when the WAN mode is Classical Routing.
When the WAN mode is NAT, your network presents only one IP address to the
Internet.)
• WAN Users
Unless yo
ur selection from the Action list is BLOCK a
lways, you also must make
selections from the following lists:
• Sel
ect Schedule
• Send to DMZ Server
T
he Translate to Port Number f
ield is optional.
5. Click the Ap
ply button.
Your changes are saved.
