Setting the Banks
3-45
ZW
User’s Manual
Saving the Bank/System Settings
Save the bank/system settings to the controller.
• The settings of all banks are saved regardless of the currently selected bank number.
• After you have made or changed settings, be sure to save the setup data. All settings will be deleted if
you turn the power OFF without saving the data.
Here is an explanation of the procedure for saving the bank/system settings.
Operating procedure

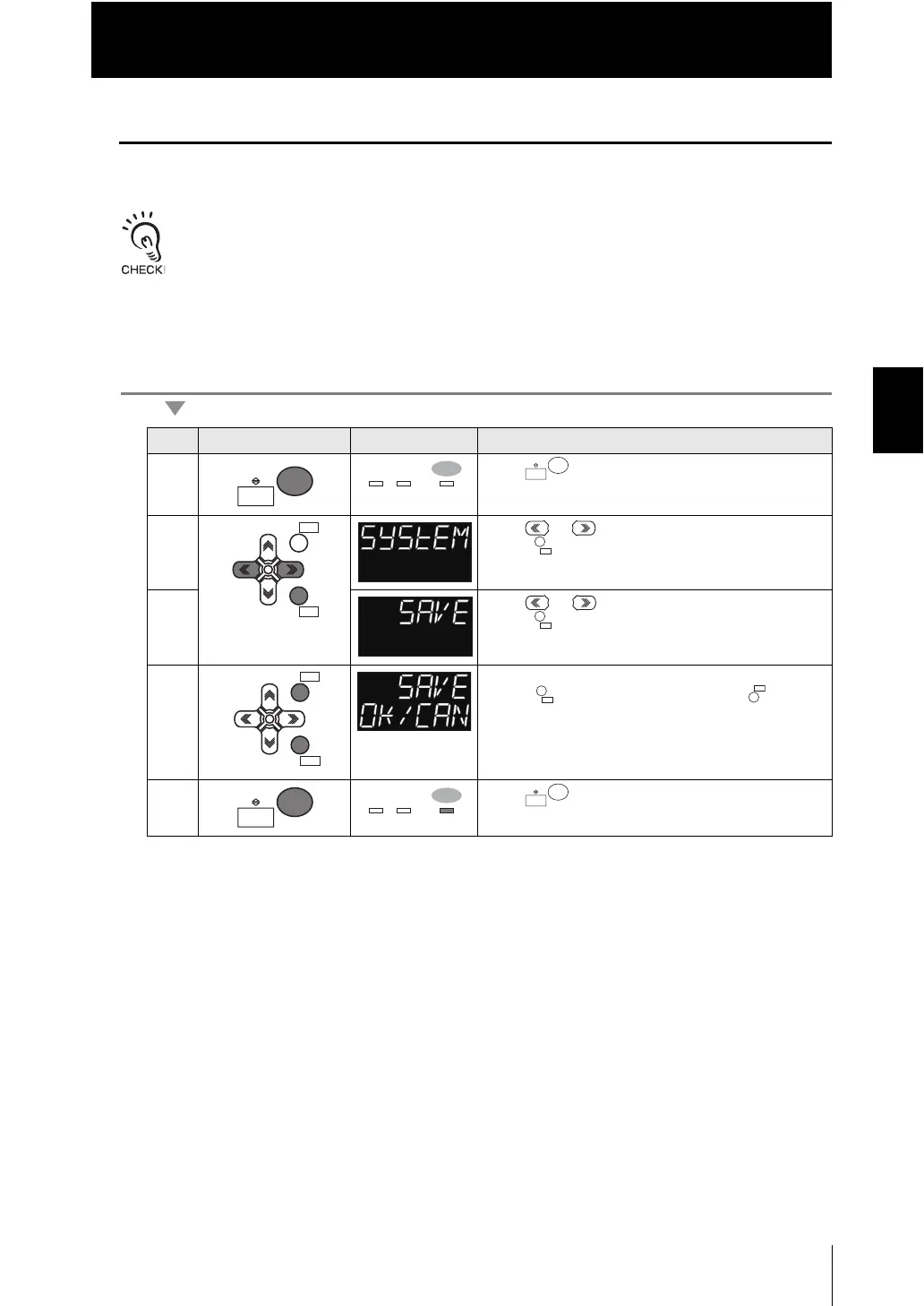

Steps Key operation Display Description
1 Press key for two seconds to enter the FUN
mode.
2 Press or keys to select either of "BANK" and
press key.
3 Press or keys to select either of "SAVE" and
press key.
4 "OK/CAN" is displayed on the sub-display.
Press key to save the setting or key to
cancel.
5 Press key for two seconds to enter the RUN
mode.
RUN
RUN
FUN
FUN
TEACH
TEACH
L
H L RUNRUN
