1-10
Chapter 1 MEASUREMENT SETUP
ZW
User’s Manual
Chapter 1
About Installation and Connection

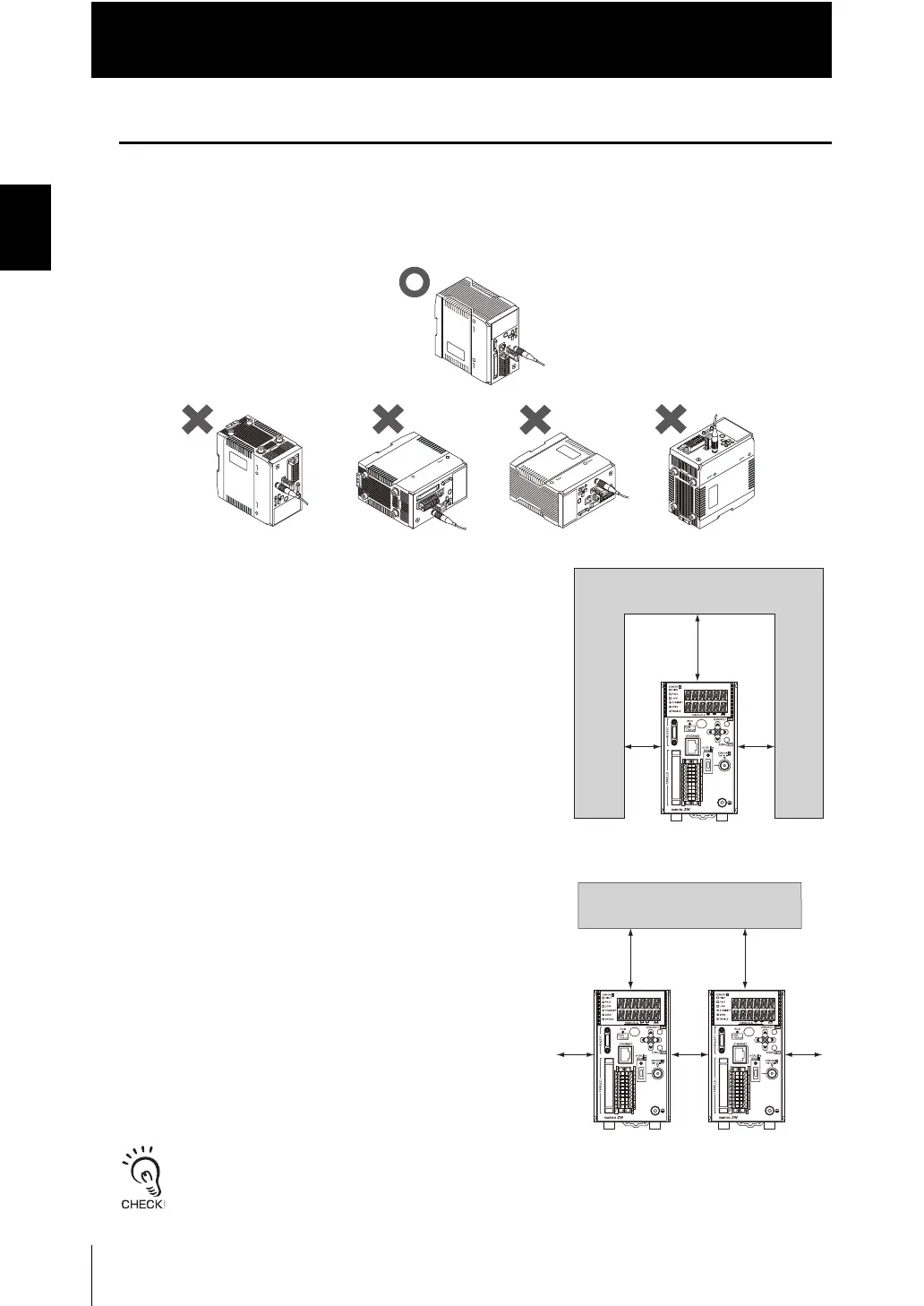

Installation of Controller
■ Precautions for installation
Install the Controller in the orientation indicated by the circle mark in the following
figure. Do not install it laying on its side or upside down.
For adequate intake and/or exhaust, keep the
Controller clear by 30 mm or more on its top, and
by 10 mm or more from either side.
To secure the Sensor Head and cables connected
safely, keep the front of the Controller clear by 65
mm or more.
If more than one Controller must be placed in
parallel, place them 10 mm or more apart each
other, keep them clear by 30 mm or more on their
top and 30 mm or more under them.
Do everything possible to avoid installation in a location with vibration.
10
mm
30 mm
10
mm
10
mm
30 mm
10
mm
10
mm
30 mm
