Chapter 2 BASIC OPERATION
Chapter 2
Overview of Setting and Measurement
2-3
ZW
User’s Manual

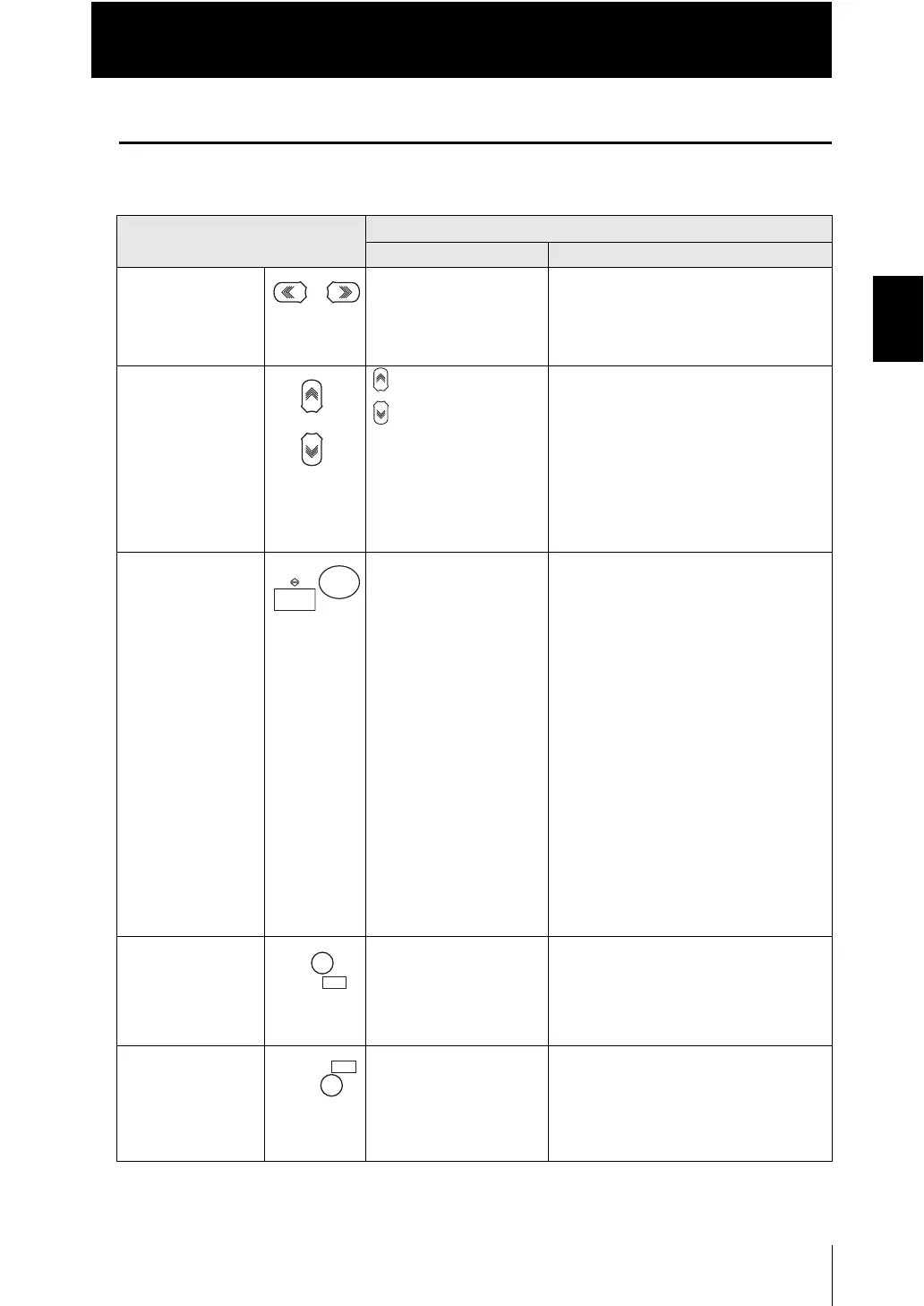

Functions of Operating Keys
The following table lists the names and functions of the operating keys on the controller:
Name
Functions
RUN mode FUN mode
(LEFT) key
(RIGHT) key
Changes sub-display
content.
Functions differently depending on the
settings.
- Toggles functional displays.
- Selects a digit for values.
- Cancels settings.
(UP) key
(DOWN) key
key: Executes trigger
input.
key: Executes reset
input.
* These keys are only
available if key inputs for
the hold functions have
been enabled in the FUN
mode. (See Page p.3-
34).
Functions differently depending on the
settings.
- Switches between selecting menus.
- Selects setting values.
Mode switching key Hold down for at least two
seconds to enter the FUN
mode.
Hold down for at least two seconds to enter
the RUN mode.
- For operating mode switching, "SWITCH"
is displayed on the main display and "OK/
CAN" is displayed on the sub-display.
Press the ZERO/SET key to switch the
mode.
- When the mode is switched from FUN
mode to RUN mode, "SAVE" is displayed
on the main display and "OK/CAN" is
displayed on the sub-display.
Press the ZERO/SET key to save the
settings and switch the operating mode.
Press the ZERORST/ESC key to switch
the operating mode without saving the
settings.
If you press for less than 2 seconds, the
display shifts to RUN mode task switching
and the threshold value setting menu.
Also, this starts teaching to set threshold
values when setting a threshold value.
ZERO/SET key Executes a zero reset. Functions differently depending on the
selections.
- Applies the selected conditions or values.
- Switches to a lower menu.
ZERORST/ESC key Hold down for at least two
seconds to cancel a zero
reset.
Functions differently depending on the
selections.
- Cancels a selected condition or value.
- Switches to an upper menu.
Hold down for at least two seconds to jump
to the top menu on the FUN mode.
ZERO/
SET
ZERORST/
ESC
To Next Page
