Chapter 3 SETTINGS FOR FUNCTIONS
Chapter 3
Setting Measurement Items
3-5
ZW
User’s Manual
Setting Measurement Items
Obtain the waveform data based on the specified sensing condition, and calculate the
height/thickness of up to four surfaces included in the measuring range.
Count the measurement surface closest to the Sensor Head first.
Set the following measurement item based on the desired output for each task.
• The following are the initial values preset for the tasks.
-TASK1: HEIGHT [HEIGHT]
-TASK2 - TASK4: NONE [NONE]
• To check the measurement surface, use the SmartMonitor ZW to check the light reception
waveform status.
(Refer to Smart Monitor ZW Operation Manual).
Setting [Display] Description [Display]
Height [HEIGHT] Measures the height.
Specifies either of the following:
- Edge 1st [EDGE1]
- Edge 2nd [EDGE2]
- Edge 3rd [EDGE3]
- Edge 4th [EDGE4]
- Light Peak [PEAK] (default value) (the surface receiving the largest amount
of received light within the measuring range)
Thick [THICK] Measures the thickness.
Specifies either of the following for each of SURFACE1 [TOP] and
SURFACE2 [END]:
- Edge 1st [EDGE1]
- Edge 2nd [EDGE2]
- Edge 3rd [EDGE3]
- Edge 4th [EDGE4]
- Light Peak [PEAK] (default value) (the surface receiving the largest amount
of received light within the measuring range)
Calculation [CALC] Performs calculations using the output for each task.
None [NONE] Select this when you don't perform the measurement.

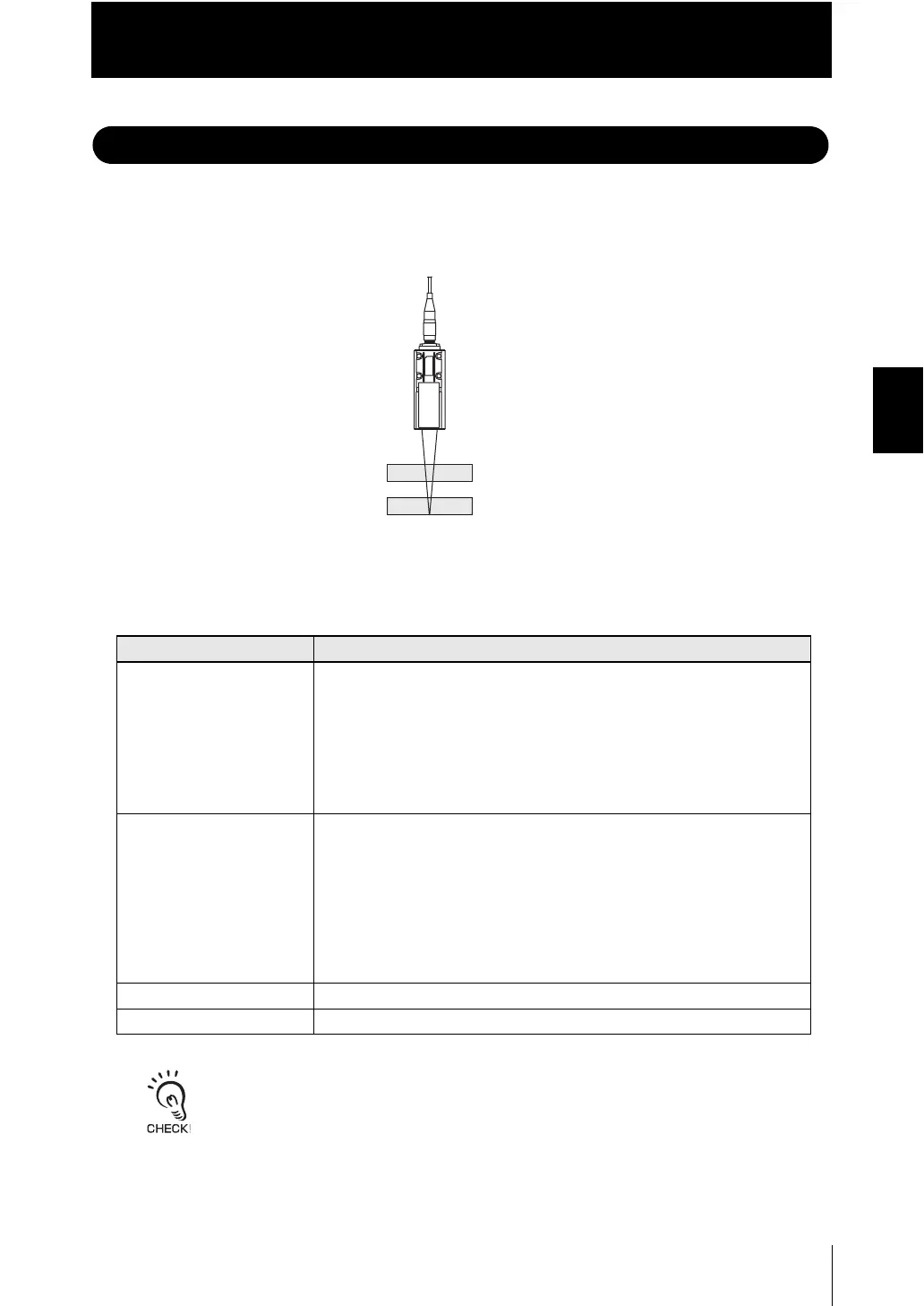

Sensor head
Edge 1st
Edge 2nd
Edge 3rd
Edge 4th
