Omron ZW Series User Manual

2-10
Chapter 2 BASIC OPERATION
ZW
User’s Manual
Chapter 2
Functions and Operations during Measurement
Functions and Operations during Measurement

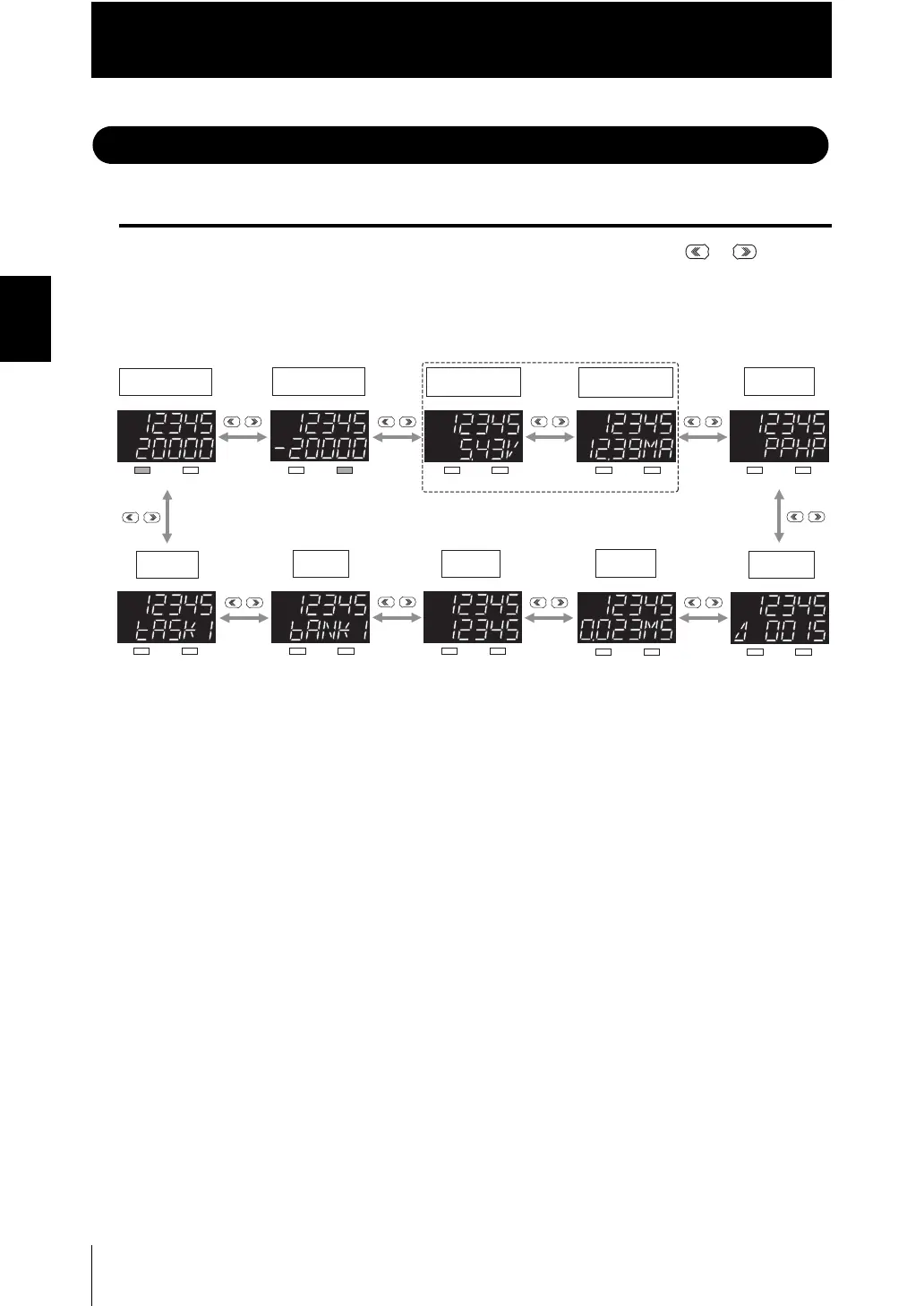

Switching the Display during RUN mode
In RUN mode, you can switch measured value display by pressing the / keys
during the operation.
You can check the threshold value and analog output value while displaying the measured
value on the main display.
• "Displayed task" can be selected from TASK1 to TASK4.
• The above display screenshots are only samples and may different from actual displays.
(Note)
An output item not selected on the analog output (Voltage output/Current output) is displayed as "------" on the
sub-display. For example, if "Voltage output" is selected on the analog output, the analog current output value is
displayed as "------" on the sub-display.
■ Details displayed on the main display
The measured values always appear on the main display.
The measured values are initialized as follows:
• Reference value 0: measurement center distance
• + display: NEAR (close range) side
• - display: FAR (far range) side
H lit
HIGH threshold
value
LOW threshold
value
Analog voltage
output value
Analog current
output value
Judgement
result
Exposure
time
Resolution
Distance
Displayed
task
Effective
bank
Effective
bank
L unlit
H unlit L lit H unlit L unlit
H unlit L unlit H unlit L unlit
H unlit L unlit
H unlit L unlit
H unlit L unlit
(Note)
