Setting the System
Display/set the system environment.
Checking Information
Displays the set measuring cycle and information of the controller and Sensor Head.
As an example, here is an explanation of the procedure for displaying the serial number of
the Sensor Head.
Operating procedure
Setting [Display] Description
Measuring cycle [CYCLE] Displays the currently set measuring cycle (unit: ms).
Controller Information
[C.INFO]
Version [VER] Displays the model information of the controller.
MAC address
[MAC.ADR]
Displays the MAC address that is set.
Sensor head
Information [H.INFO]
Model [MODEL] Displays the model information of the Sensor Head obtained
from the Calibration ROM (ZW-S_ _).
Serial No. [SER.NO] Displays the serial number of the Sensor Head (last 6 digits).

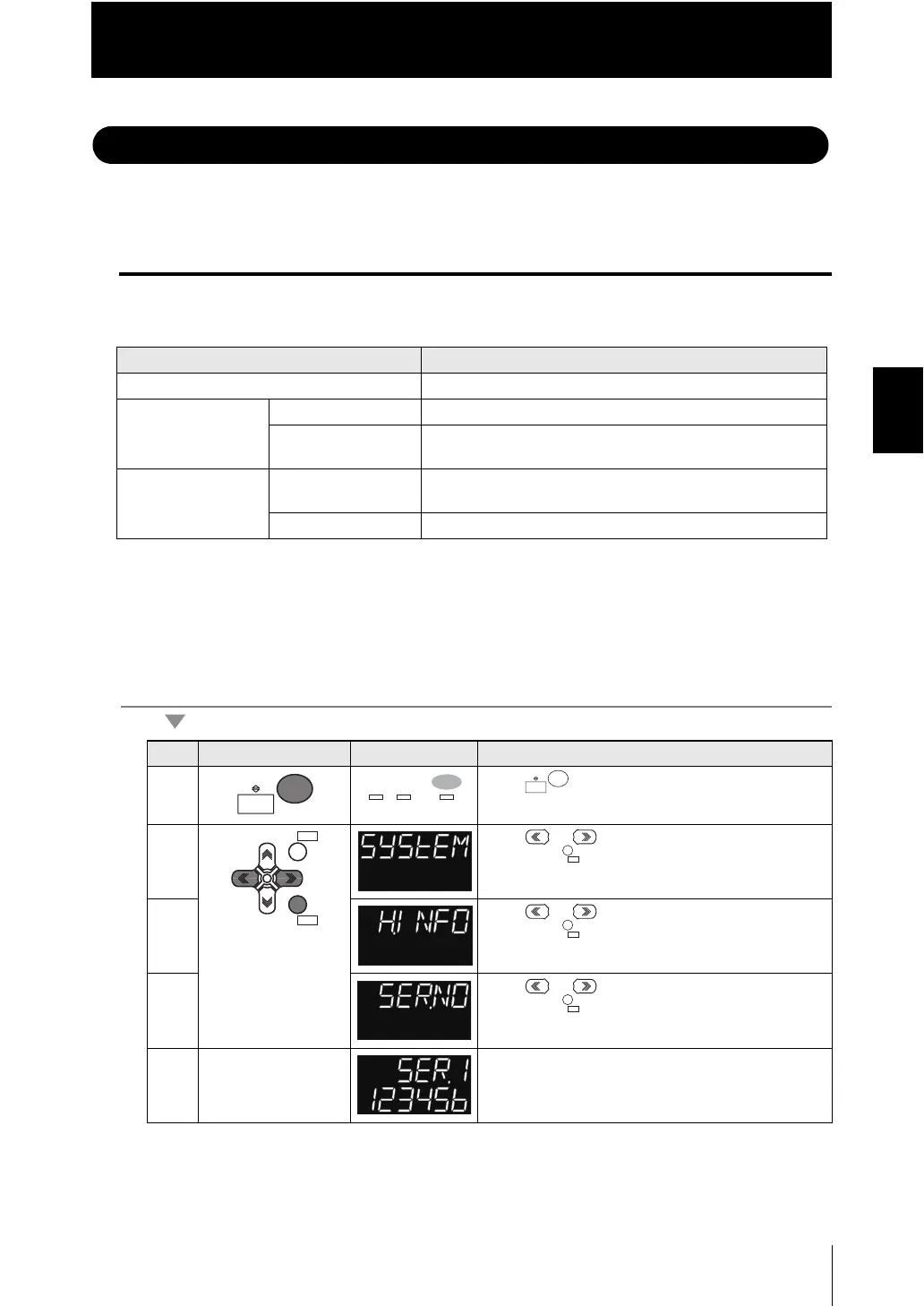

Steps Key operation Display Description
1 Press key for two seconds to enter the FUN
mode.
2
-
Press or keys to select either of "SYSTEM"
and press key.
3 Press or keys to select either of "H.INFO"
and press key.
4 Press or keys to select either of "SER.NO"
and press key.
5 - "SER.1" is displayed on the main display and the
upper-order digit is displayed on the sub-display.
