Bank Switching
Switches banks.
As an example, here is an explanation of the procedure for setting BANK2:
Operating procedure
You can also switch the bank by entering the non-procedural command or from Smart Monitor ZW.
Current bank setting command <BS command> p.5-20
Smart Monitor ZW Operation Manual

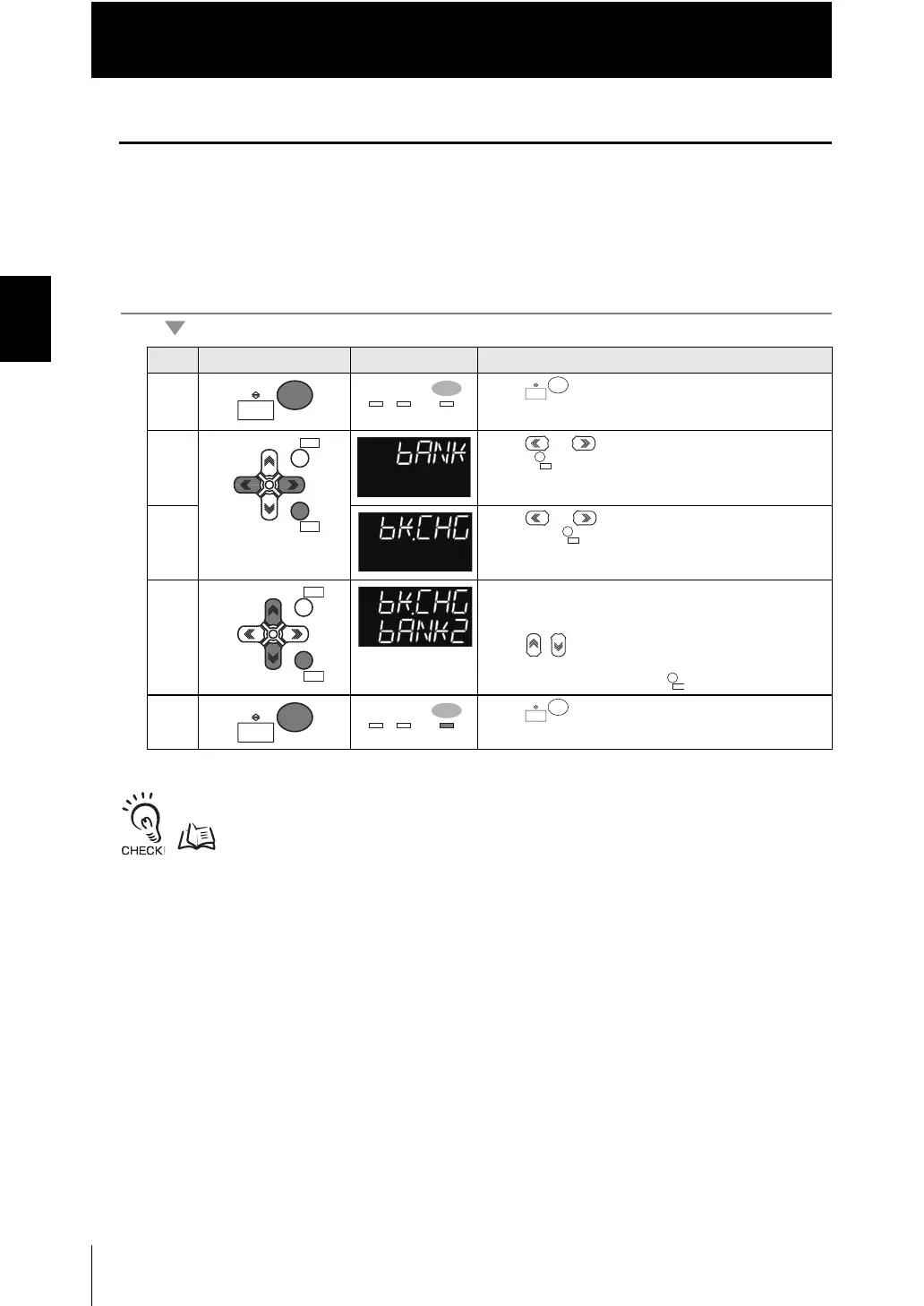

Steps Key operation Display Description
1 Press key for two seconds to enter the FUN
mode.
2 Press or keys to select either of "BANK" and
press key.
3 Press or keys to select either of "BK.CHG"
and press key.
4 Select BANK2 for the bank number.
The current setting value is displayed on the sub-
display.
Press / keys to enter the editing mode, and the
sub-display blinks.
Select "BANK2" and press key.
5 Press key for two seconds to enter the RUN
mode.
