Chapter 2 BASIC OPERATION
Chapter 2
Functions and Operations during Measurement
2-19
ZW
User’s Manual

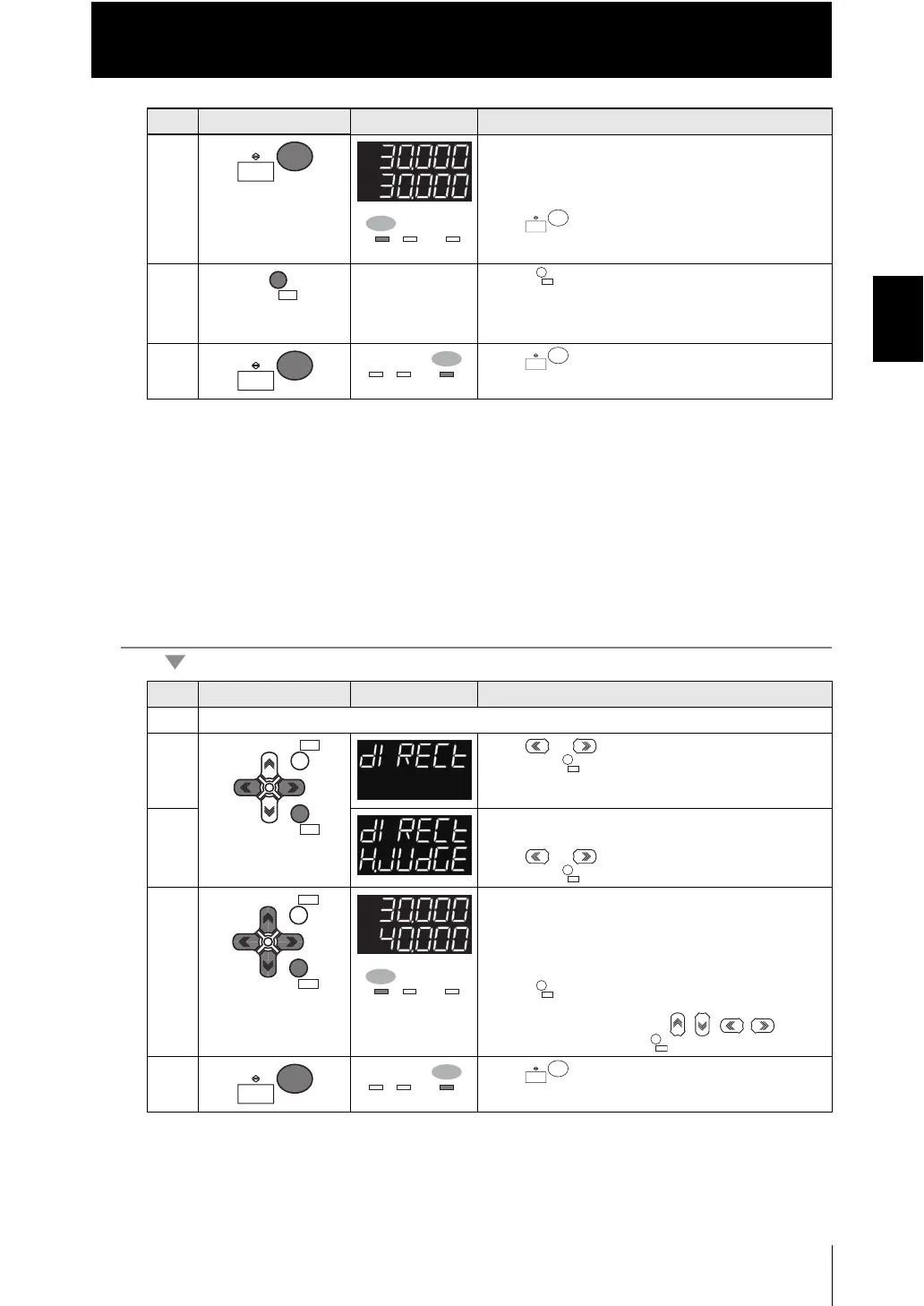

■ Direct
The threshold values can be set by directly inputting numerical values.
As an example, here is an explanation of the procedure for setting a HIGH threshold
value by entering "40.000" directly.
Operating procedure
7 The current measured value is displayed on the main
display and the current set threshold value is
displayed on the sub-display. (At that time, the
THRESHOLD-H indicator lights up.)
Press key to display the current measured
value on the lower line.
8 - Press key to start a teaching.
The indicator for the current measured value on the
main display lights up, applying the value as a
threshold value.
9 Press key for two seconds to enter the RUN
mode.
Steps
Key operation Display Description
1 - 4 For moving to “JUDGE” see steps 1 to 4 in p.2-18
5 Press or keys to select either of "DIRECT"
and press key.
6 Select "HIGH threshold value" as the threshold value
type.
Press or keys to select either of "H.JUDGE"
and press key.
7 Set "40.00" as the HIGH threshold value.
The current measured value is displayed on the main
display and the current set threshold value is
displayed on the sub-display. (At that time, the
THRESHOLD-H indicator lights up.)
Press key to enter the editing mode, and the
sub-display blinks.
To edit numerical values use / / / keys.
Enter "40.00" and press key.
8 Press key for two seconds to enter the RUN
mode.
Steps
Key operation Display Description
RUN
LIT
ZERO/
SET
RUN
FUN
TEACH
ZERORST/
ESC
ZERO/
SET
ZERORST/
ESC
ZERO/
SET
RUN
LIT
ZERO/
SET
ZERO/
SET
RUN
FUN
TEACH
RUN
FUN
TEACH
To Next Page
