4-12
Chapter 4 I/O SETTINGS
ZW
User’s Manual
Chapter 4
Settings for I/O
Settings for I/O
The following describes settings for I/O.

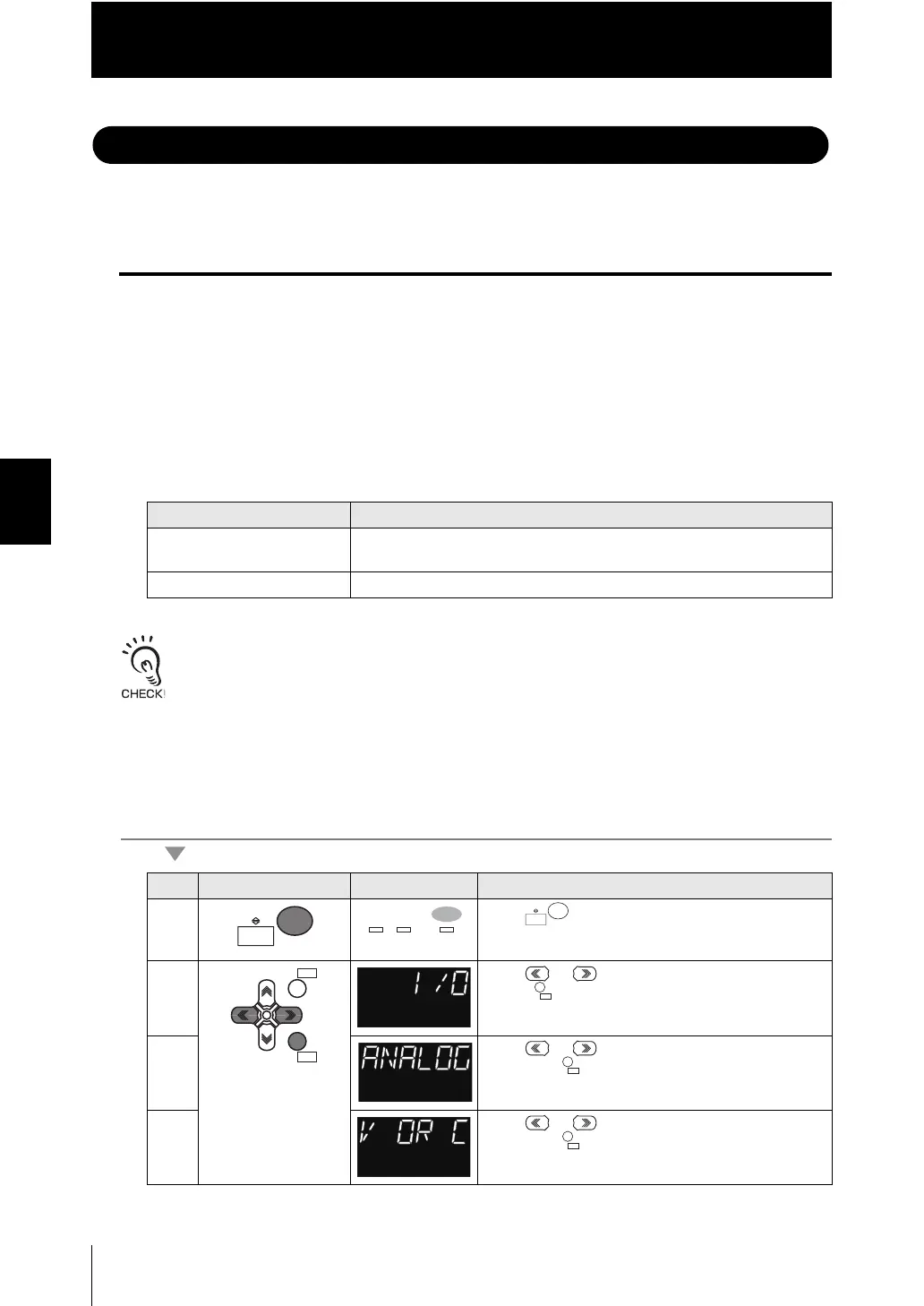

Settings for Analog Output
The following describes the settings for outputting the current measurement results from
the analog output of the 20-pole terminal block.
■ Output destination setting
With analog output, the measurement results can be output converted into a current
from 4 to 20 mA or a voltage from -10 to +10 V.
Selects which to output, the current or the voltage.
The same output destination is set for all banks. The output destination cannot be set separately for
individual banks.
As an example, here is an explanation of the procedure for outputting the voltage.
Operating procedure
Setting [Display] Description [Display]
Voltage output [VOLT]
(Default value)
Voltage output
Current output [CUR.] Current output
Steps
Key operation Display Description
1 Press key for two seconds to enter the FUN
mode.
2 Press or keys to select either of "I/O" and
press key.
3 Press or keys to select either of "ANALOG"
and press key.
4 Press or keys to select either of "V OR C"
and press key.
RUN
FUN
TEACH
RUN
FUN
TEACH
ZERORST/ZERORST/
ESCESC
ZERO/ZERO/
SETSET
ZERO/
SET
To Next Page
