Chapter 5 Ethernet/RS-232C COMMUNICATION
Chapter 5
Connecting Using Ethernet Cable
5-5
ZW
User’s Manual
Connecting Using Ethernet Cable

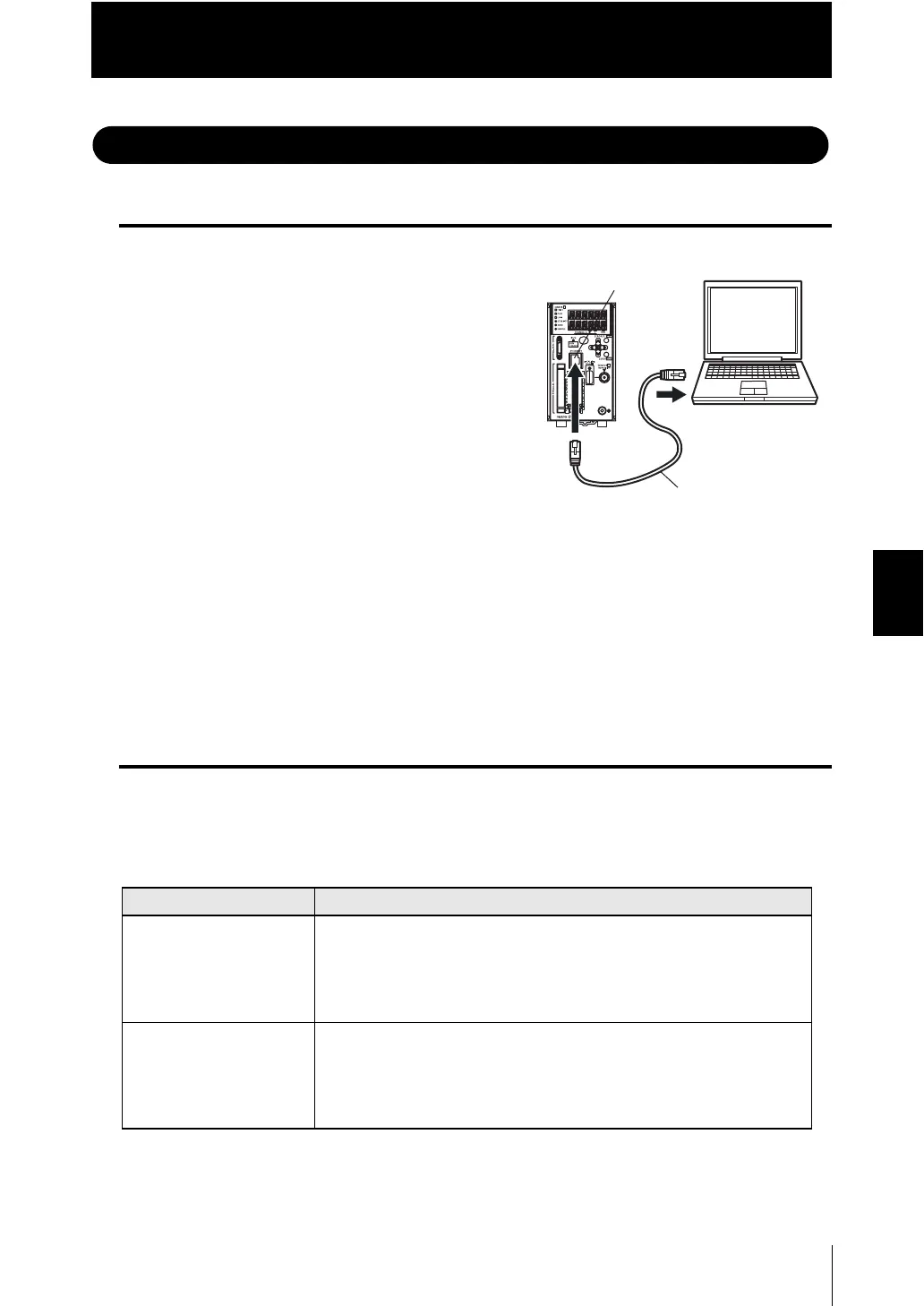

Connection Method
1. Insert one end of the Ethernet cable
into the Ethernet connector of the
controller.
2. Insert another end of the Ethernet
cable into the Ethernet connector of
the external device.
(Note)
Prepare commercially available Ethernet cable satisfying the following requirements:
-Category 5e or more, 30 m or less
-RJ45 connector (8-pin modular jack)
-For direct connection: Select cross cable.
-For connection through a network hub: Select straight cable.
Communication Settings
Set the Ethernet communication of the controller.
Set the IP address and subnet mask.
Set a three-digit value for each setting as shown below.
Setting [Display] Description
IP address [IPADDR] IP1.IP2.IP3.IP4
IP1 : 1 to 223 (default value: 192)
IP2 : 0 to 255 (default value: 168)
IP3 : 0 to 255 (default value: 250)
IP4 : 1 to 254 (default value: 50)
Subnet mask [SUBNET] SUB1.SUB2.SUB3.SUB4
SUB1 : 0 to 255 (default value: 255)
SUB2 : 0 to 255 (default value: 255)
SUB3 : 0 to 255 (default value: 255)
SUB4 : 0 to 255 (default value: 0)
Ethernet connector
Ethernet cable
(Note)
To Next Page
