Chapter 6 SPECIFICATIONS AND EXTERNAL DIMENSIONS
ZW
User’s Manual
Chapter 6
Accessories
Accessories
Extension Fiber Cable
■ ZW-XF02R/XF05R/XF10R/XF20R/XF30R
Item
Specifications
ZW-XF02R ZW-XF05R ZW-XF10R ZW-XF20R ZW-XF30R
Ambient temperature Operating: 0 to +50 °C
Storage: -15 to +60 °C (with no icing or condensation)
Ambient humidity Operating and storage: 35 % to 85 % (with no condensation)
Vibration resistance
(destructive)
10 to 55 Hz, 0.35-mm single amplitude, 50 min each in X, Y, and Z directions
Shock resistance
(destructive)
150 m/s
2
, 3 times each in six directions (up/down, left/right, forward/backward)
Fiber length 2 m 5 m 10 m 20 m 30 m
Materials Case: PC, Connector part: Brass
Minimum bending
radius
20 mm
Weight Approx. 30 g Approx. 40 g Approx. 60 g
Approx. 110 g Approx. 150 g
Accessories Connecting Adapter (ZW-XFC), Instruction sheet

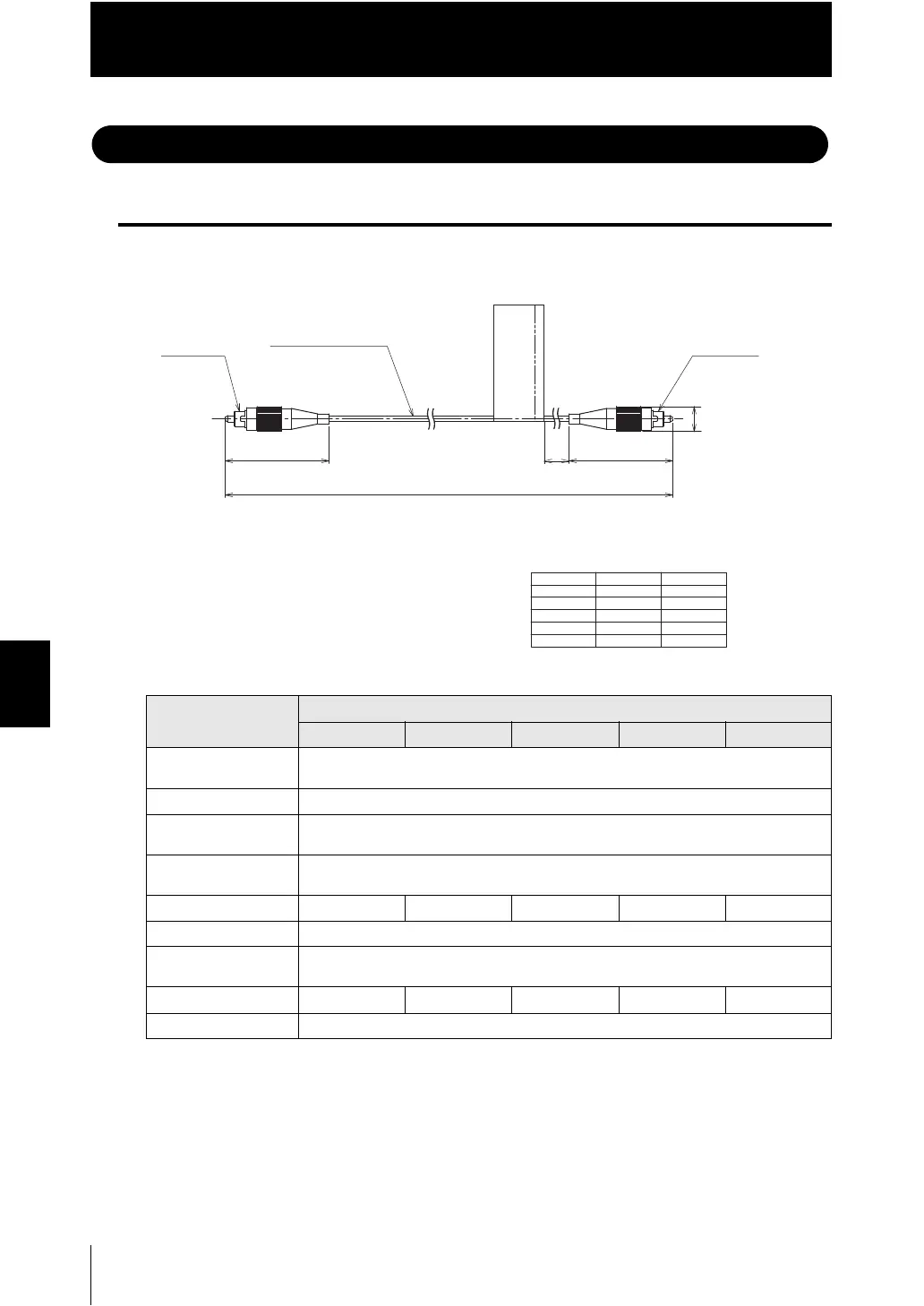

䋨42䋩䋨42䋩
L
FC connector
Fiber Cable䋨φ2.0䋩
* The following table lists cable lengths per models.
Type Specification L䋨mm䋩
ZW-XF02R 2 m 2000±20
ZW-XF05R 5 m 5000±50
ZW-XF10R 10 m 10000±100
ZW-XF20R 20 m 20000±200
ZW-XF30R 30 m 30000±300
FC connector
*
(φ10)
䋨Unit㪑㩷mm䋩
䋨50䋩
