Chapter 1 MEASUREMENT SETUP
Chapter 1
Part Names and Functions
1-3
ZW
User’s Manual

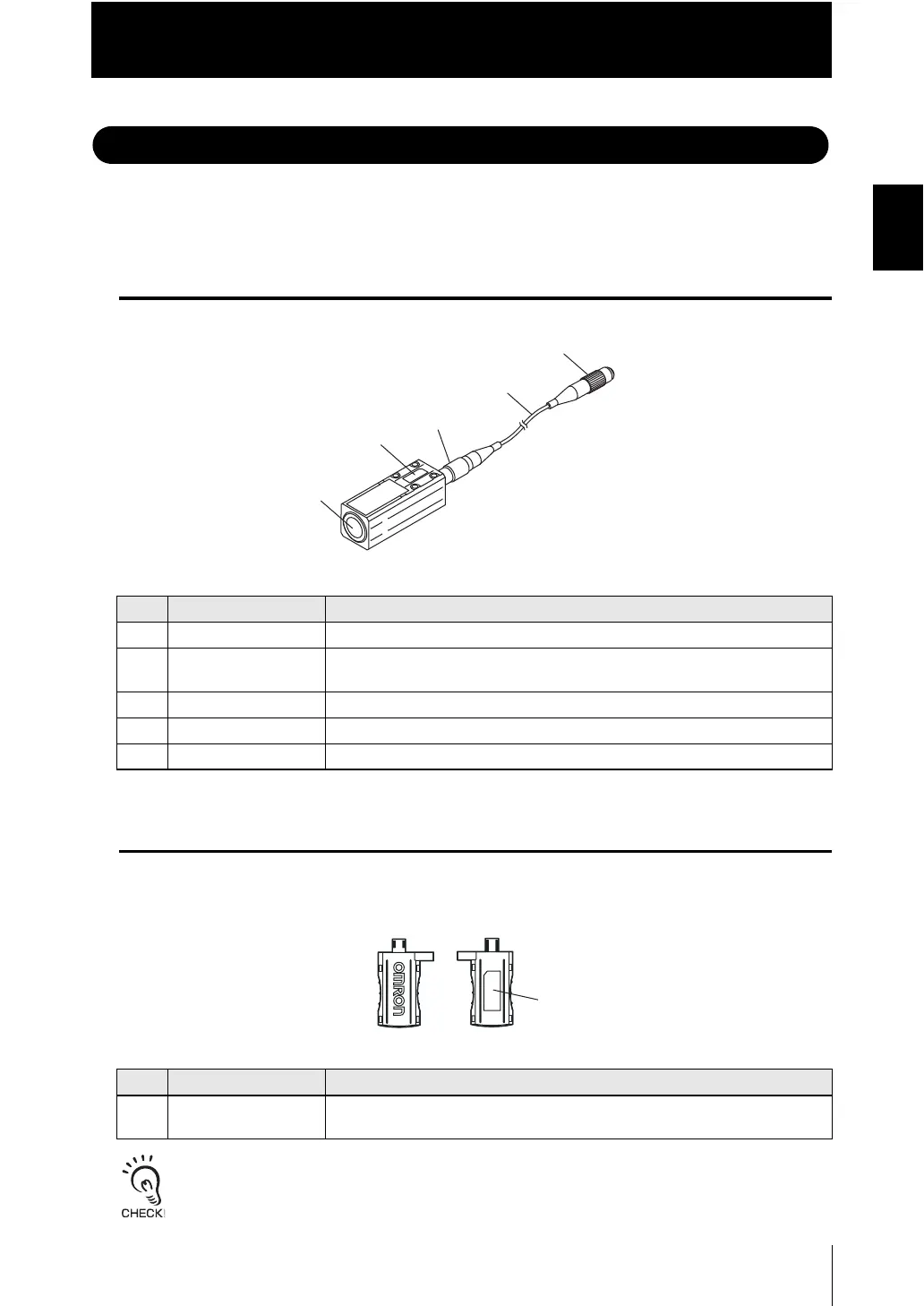

Part Names and Functions
The following describes the names and functions of parts of the Sensor Head, Calibration
ROM and Controller.
Sensor Head
Calibration ROM
This ROM is associated with the sensor on a one-to-one basis, and operates connected to
the Controller.
Use with the Calibration ROM always connected. If the Calibration ROM is not connected, an error is
displayed.
No. Names Functions
1 Projector/receiver Projects and receives light.
2 Serial number Serial number.
Only a calibration ROM with the same serial number is available.
3 Fiber interface Interfaces the Sensor Head and optical fiber (unremovable).
4 Fiber Cable Sends or receives light signals to/from the Controller.
5 Fiber Connector Couples the Controller and fiber cable.
No. Names Functions
1 Serial number Serial number.
Only a Sensor Head with the same serial number is available.
