Omron ZW Series User Manual

2-6
Chapter 2 BASIC OPERATION
ZW
User’s Manual
Chapter 2
Overview of Setting and Measurement
Multi-task and Bank Data
■ Multi-task function
In the ZW Series, you can set multiple measurement processing for one sensing
setting. This measurement processing is called a "task (TASK)."

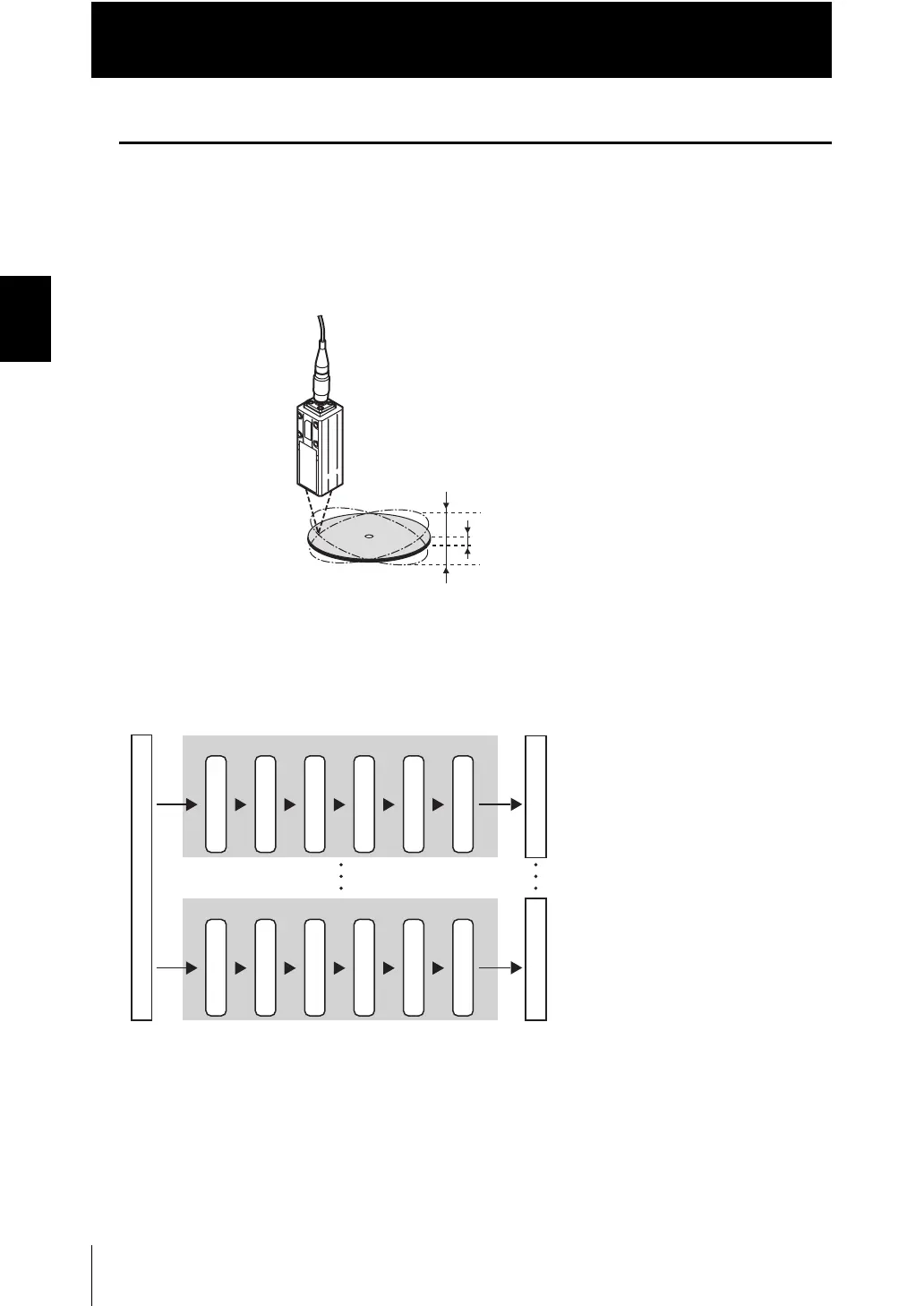

Example: Measure the height and surface fluctuation simultaneously
For tasks, "TASK1" to "TASK4" are available for registration.
You can measure and judge up to four characteristic points simultaneously because
you can measure the desired measurement items such as peak, bottom, and average
for each task.
Height (TASK1)
Surface fluctuation (TASK2)
Measurement processing flow in TASK1
* For the output, the following four types
are supported:
䇭㪄Analog output
䇭䇭
Select one TASK that you want to output.
䇭㪄Judgment output
䇭䇭
Select one TASK that you want to output.
䇭䇭
䇭㪄Binary output
䇭 Can output data from four tasks at a
time.
䇭㪄Serial output (Ethernet/RS-232C)
䇭䇭Can output data from four tasks at a
time.
Sensing setting
Measurement processing flow in TASK4
Measurement item
Filter
Scaling
Hold
Zero reset
Judge
Measurement item
Filter
Scaling
Hold
Zero reset
Judge
Output * Output *
Measurement result
