Chapter 2 BASIC OPERATION
Chapter 2
Overview of Setting and Measurement
2-7
ZW
User’s Manual
■ Bank data
ZW series can hold up to eight sets of settings, which are called a "bank (BANK)".
When the device setup is changed, you can switch the bank externally.
● What is bank?

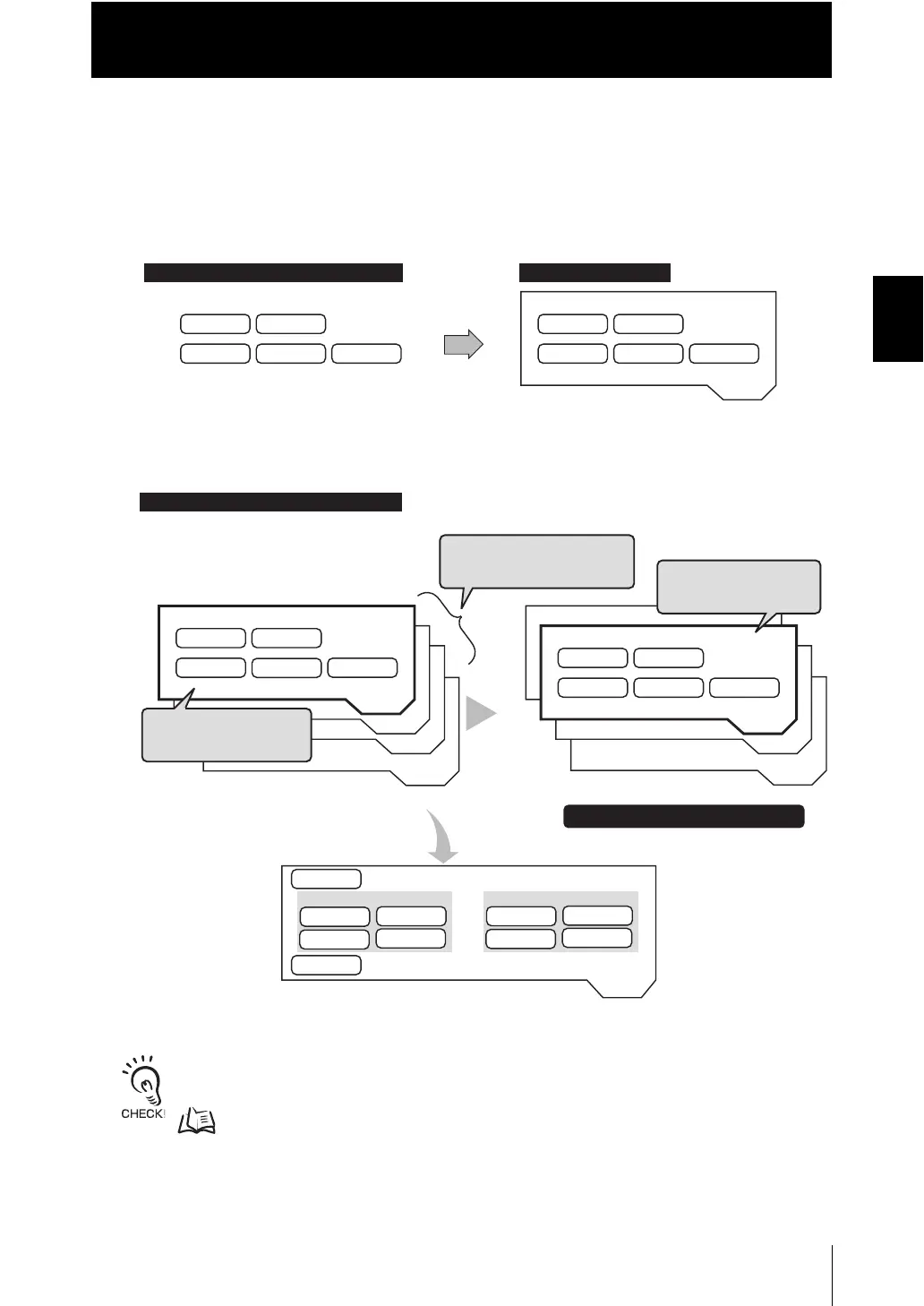

● Example of bank switching for settings
• If only the "threshold value" is different in the settings for a bank, by changing the mode of the bank,
you can increase the number of banks from 4 to 32.
Changing the Bank Mode p.3-43
• The output destination (current output value/voltage output value) in the I/O setting parameters is set
the same for all banks. The output destination cannot be set separately for individual banks.
Sensing
Filter
Threshold value
BANK
The sensing settings for measurement
are held as one bank.
Output
I/O
Sensing
Filter
Threshold value
Output
I/O
䉶䊮䉲䊮䉫 󰶚ቯὐ 䊐䉞䊦䉺
䈚䈐䈇୯
BANK8
䉶䊮䉲䊮䉫 󰶚ቯὐ 䊐䉞䊦䉺
಴ജ I/O⸳ቯ 䈚䈐䈇୯
BANK3
䉶䊮䉲䊮䉫 󰶚ቯὐ 䊐䉞䊦䉺
಴ജ I/O⸳ቯ 䈚䈐䈇୯
BANK2
BANK1
䉶䊮䉲䊮䉫 󰶚ቯὐ 䊐䉞䊦䉺
䈚䈐䈇୯
BANK8
䉶䊮䉲䊮䉫 󰶚ቯὐ 䊐䉞䊦䉺
಴ജ I/O⸳ቯ 䈚䈐䈇୯
BANK3
䉶䊮䉲䊮䉫 󰶚ቯὐ 䊐䉞䊦䉺
಴ജ I/O⸳ቯ 䈚䈐䈇୯
BANK1
BANK2
BANK1
TASK1
TASK4
䊶
䊶
䊶
䊶
䊶
䊶
䊶 䊶 䊶
Sensing
Filter
Threshold value
Output
I/O
I/O
Sensing
Filter
Threshold value
Output
Sensing
Filter
Threshold value
Output
I/O
Measurement point
Filter
Threshold value
Output
Measurement point
Sensing setting for product class B
If you register settings of various classes,
Measuring operation
with the contents set
in BANK1
Register the different settings
for changing the device setup.
Switch
to BANK2.
Measuring operation
with the contents set in
BANK2
It is easy to change the device setup.
TASK1 to TASK4 are
specified in the settings
for each bank.
Sensing setting for product class A
