Chapter 1 MEASUREMENT SETUP
Chapter 1
About Installation and Connection
1-15
ZW
User’s Manual

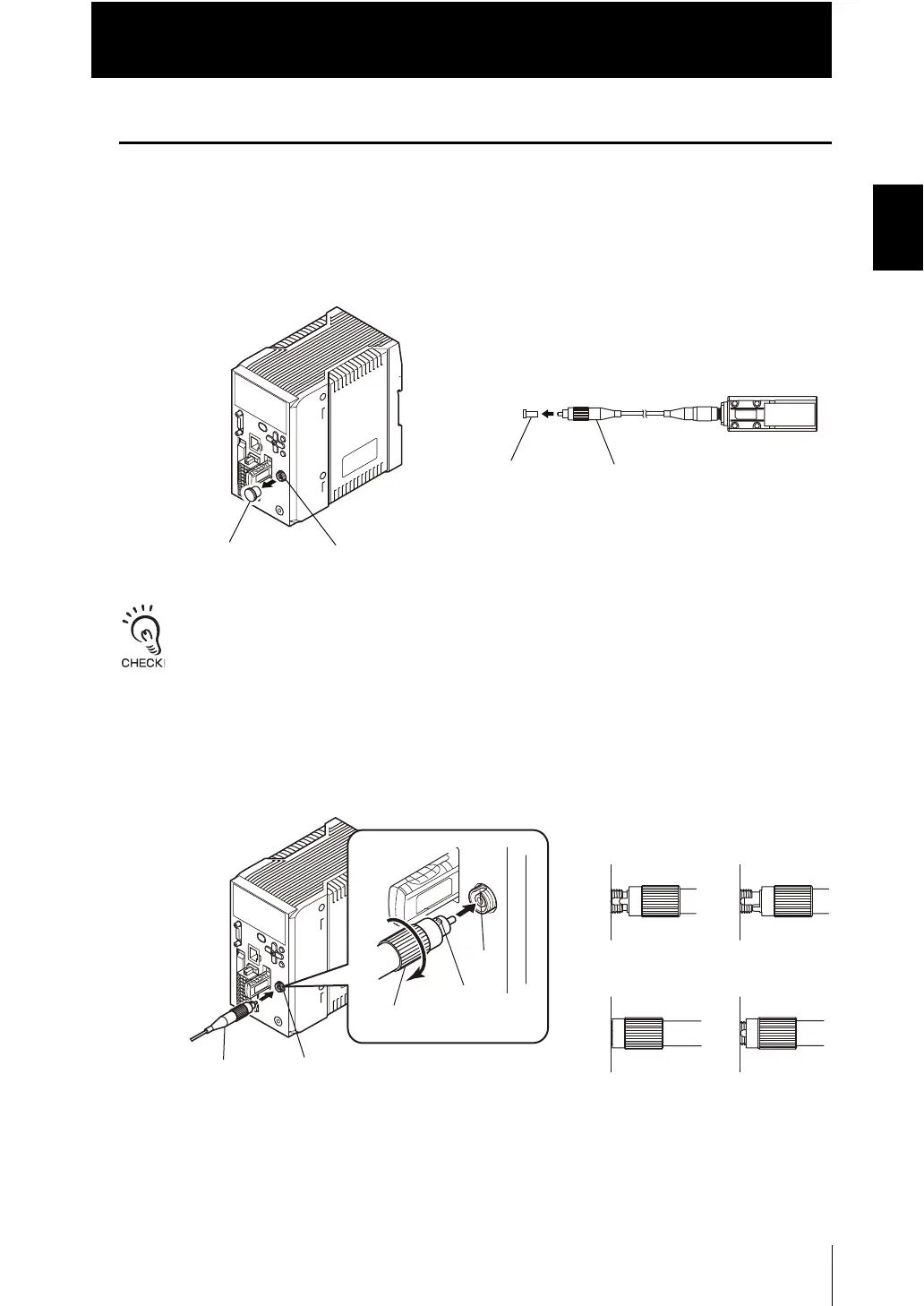

Connecting Fiber Cable
Connect the fiber cable on the Sensor Head to the Sensor Head connector on the
Controller as follows:
1. Remove the protective caps from the controller's fiber connector and the
fiber cable.
Do not discard but keep the protective cap handy.
2. Mate the convex section on the fiber cable with the groove on the fiber
connector and turn the threaded section clockwise while pushing in (see
figure 1).
In the "No good" status in figure 2 and figure 3, optic signals cannot be transmitted
and correct measurement is not possible. Always check that the system is in the
"Good" status.
Protective cap Fiber connector
Fiber cable
Protective cap
(Figure 1)
(Figure 2)
(Figure 3)
Threaded
section
Convex
section
Groove
Fiber cable Fiber
connector
Good
No good
Good
No good
