Chapter 6
SPECIFICATIONS AND EXTERNAL DIME
NSIONS
Chapter 6
Controller
6-11
ZW
User’s Manual

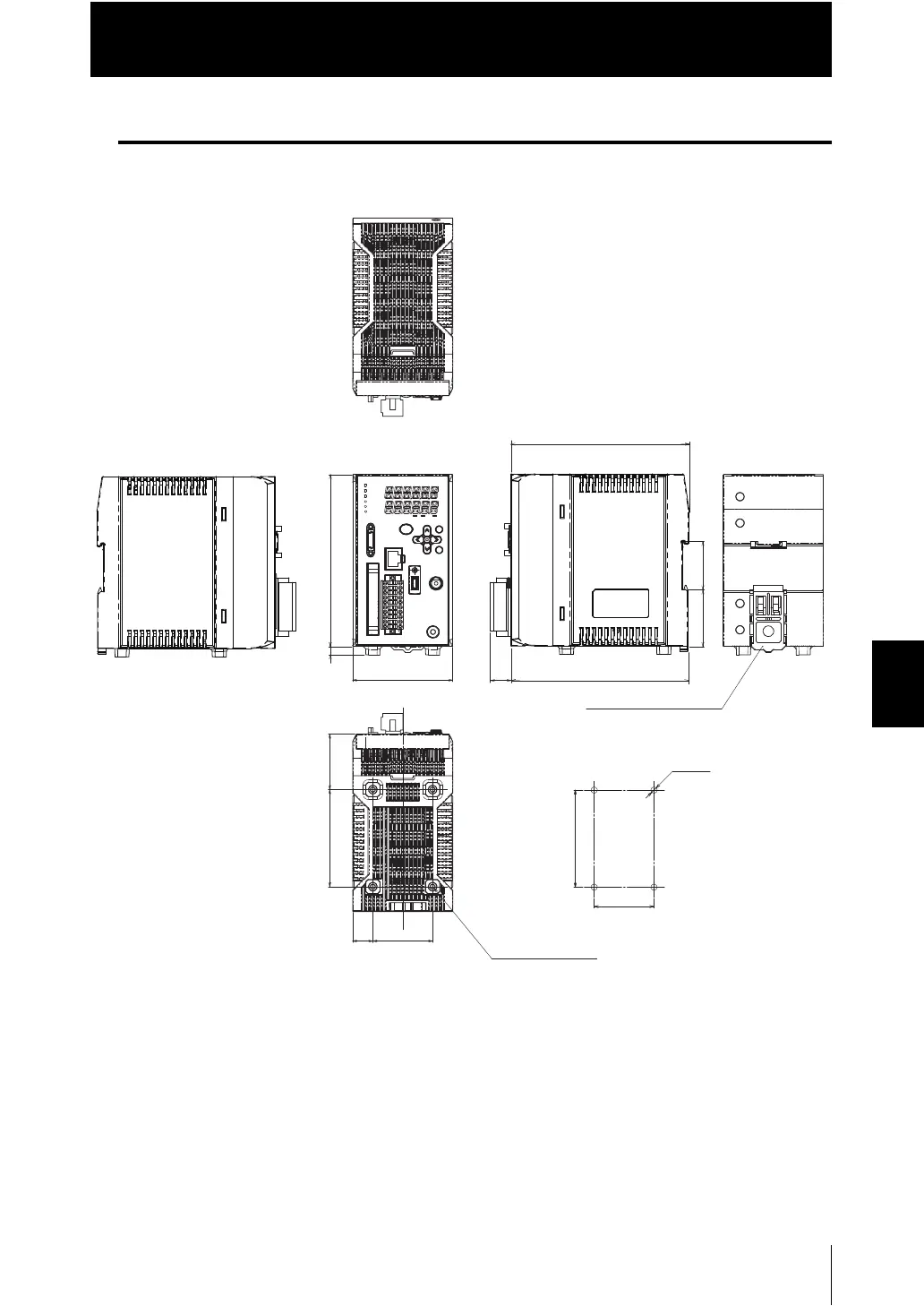

External Dimensions
■
ZW-C10T/C15T/C10A
T/C15A
T
72
124
6
40
70
14.5
43
Installation holes
4-M4 depth 6.0 MAX.
127.5
34.9
40.8
DIN track attachment hook
43±0.1
70±0.1
䋨
14.9
䋩
4-φ4.5
128
(Unit: mm)
Mounting hole dimensions
216
218
Table of Contents
Meanings of Alert Symbols
6
Meanings of Alert Symbols
7
Precautions for Safe Use
8
Precautions for Correct Use
10
Editor's Note
12
Page Format
12
Notice
14
Related Manuals
15
Table of Contents
17
Search from Menu Tree
22
Section 1 MEASUREMENT SETUP
29
System Configuration
30
Part Names and Functions
31
Sensor Head
31
Calibration ROM
31
Controller
32
About Installation and Connection
35
Installation of Sensor Head
35
Installation of Controller
38
Connecting Calibration ROM
42
Connecting Fiber Cable
43
Calibrating Sensor Head
47
Smart Monitor ZW
49
Operating Environment
50
Installation/Uninstallation Method
51
Settings When Connecting Personal Computer with Controller
53
Starting and Exiting
57
Section 2 BASIC OPERATION
59
Overview of Setting and Measurement
60
Operation Modes
60
Functions of Operating Keys
61
Digital Displays
62
Multi-Task and Bank Data
64
Setting Flow
66
Functions and Operations During Measurement
68
Switching the Display During RUN Mode
68
Zero Reset
72
Setting Threshold Value
75
Bank Switching
78
Section 3 SETTINGS for FUNCTIONS
79
Setting Sensing
80
Setting the Material for the Target to Measure
80
Setting Exposure Time Control Mode
81
Setting Measurement Items
83
Measuring the Height
84
Measuring the Thickness
86
Calculating
88
Setting the Output Conditions
92
Setting the Filter
92
Setting the Scaling
99
Setting the Hold
106
Setting the Zero Reset
115
Setting the Banks
121
Setting the Banks Changing the Bank Mode
121
Copying the Bank Settings
122
Saving the Bank/System Settings
123
Clearing the Bank Settings
124
Setting the System
125
Checking Information
125
Setting the Key Lock
127
Initializing Settings
128
Section 4 I/O SETTINGS
129
I/O Terminal Names and Functions
130
I/O Terminal Functions
130
Electrical Specifications
133
I/O Signal Functions
135
Settings for I/O
140
Settings for Analog Output
140
Settings for Judgment Output
146
Settings for Binary Output
150
Settings for Processing When Measurement Cannot be Performed
156
Settings for I/O Signals
159
Timing Charts
161
Section 5 Ethernet/Rs-232C COMMUNICATION
177
Overview
178
Ethernet Communication
178
RS-232C Communication
180
Connecting Using Ethernet Cable
181
Connection Method
181
Communication Settings
181
Connecting Using RS-232C Cable
183
Connecting Using RS-232C Cable Connection Method
183
Communication Settings
186
Communication Command List
188
Command Format
190
Section 6 SPECIFICATIONS and EXTERNAL DIMENSIONS
207
Sensor Head
208
Specifications
208
External Dimensions
209
Spot Diameter
210
Linearity Characteristic by Materials
211
Angle Characteristic
212
Controller
214
Specifications
214
Status Indicators for Controller
216
External Dimensions
217
Accessories
218
Connecting Adapter (for Fiber Cable Connection)
219
RS-232C Cable
220
Parallel Cable
221
Section 7 APPENDIX
223
Troubleshooting
224
Error Messages and Countermeasures
227
EMC Directive Conformity
229
Updating Firmware
230
Flow of Updating Firmware
230
Processing Item Data List
235
Index
241
Revision History
245
