Setting Measurement Items
3-7
ZW
User’s Manual
As an example, here is an explanation of the procedure for measuring the height of the
surface (edge 2nd) below a transparent object (as shown in the diagram on the right on
the previous page).
Operating procedure
The Height [HEIGHT] in the Measurement Item [ITEM], and the Edge 1st [EDGE1] as the
Measurement Surface [SUR] are specified in advance for TASK1. To measure the height in TASK2
to TASK4, set Edge 1st [EDGE1] first.
Steps

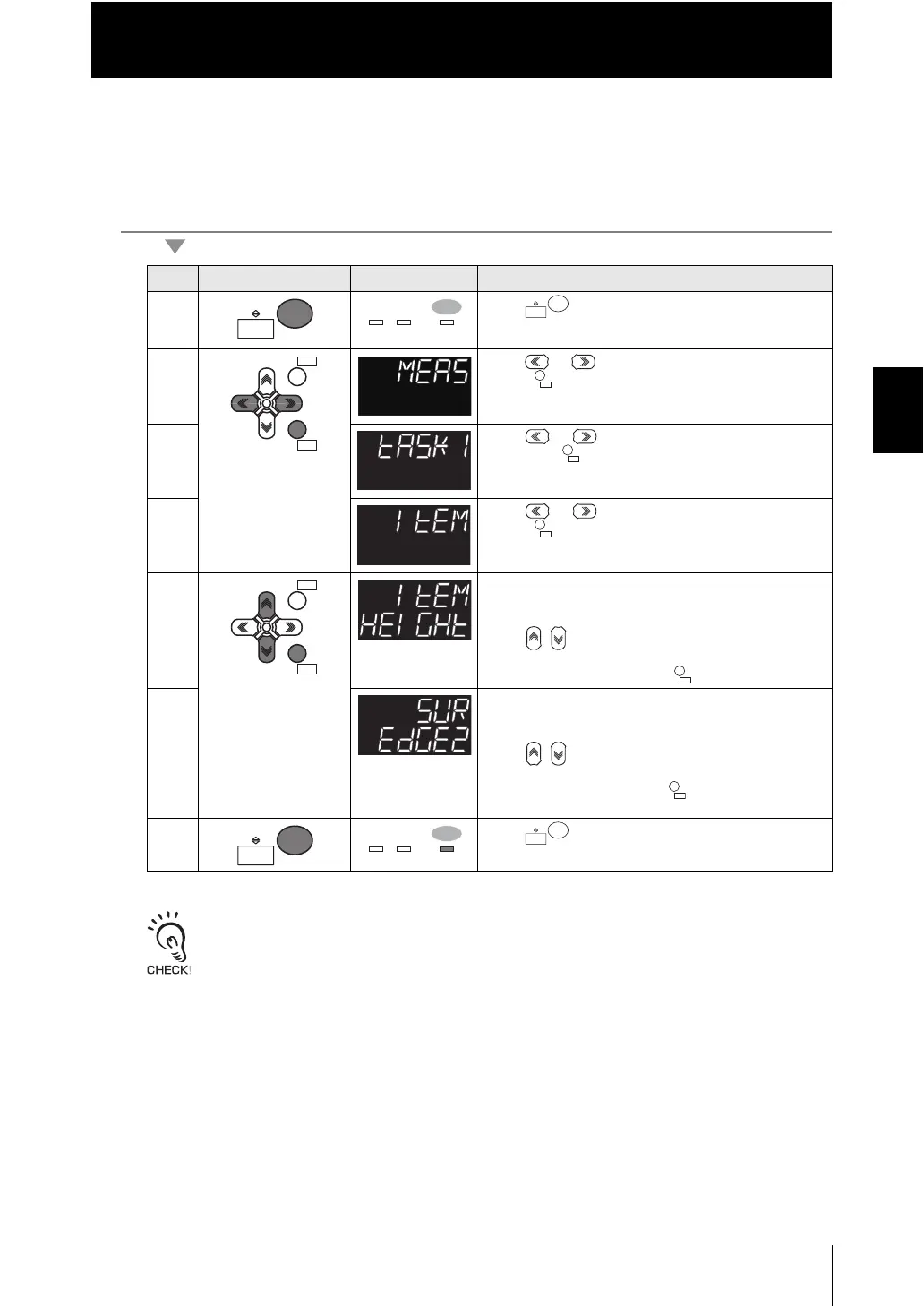

Key operation Display Description
1 Press key for two seconds to enter the FUN
mode.
2 Press or keys to select either of "MEAS" and
press key.
3 Press or keys to select either of "TASK1"
and press key.
4 Press or keys to select either of "ITEM" and
press key.
5 Select "Height" as the measurement item.
The current setting value is displayed on the sub-
display.
Press / keys to enter the editing mode, and the
sub-display blinks.
Select "HEIGHT" and press key.
6 Select "Edge 2nd" as the measurement item.
"SUR" is displayed on the main display and the current
setting value is displayed on the sub-display.
Press / keys to enter the editing mode, and the
sub-display blinks.
Select "EDGE2" and press key.
7 Press key for two seconds to enter the RUN
mode.
RUN
FUN
TEACH
ZERORST/ZERORST/
ESCESC
ZERO/ZERO/
SETSET
ZERO/
SET
ZERO/
SET
ZERORST/
ESC
ZERO/
SET
ZERO/
SET
RUN
FUN
TEACH
