Setting Measurement Items
3-9
ZW
User’s Manual
3-1 Press or keys to select either of "MEAS" and
press key.
3-2 Press or keys to select either of "TASK1"
and press key.
3-3 Press or keys to select either of "ITEM" and
press key.
3-4 Select "Thick" as the measurement item.
The current setting value is displayed on the sub-
display.
Press / keys to enter the editing mode, and the
sub-display blinks.
Select "THICK" and press key.
3-5 Select "Top."
Press or keys to select either of "TOP" and
press key.
3-6 Select "Edge 1st" as the measurement surface.
The current setting value is displayed on the sub-
display.
Press / keys to enter the editing mode, and the
sub-display blinks.
Select "EDGE1" and press key.
4 Set the end to "Edge 2nd."
4-1 Press key to return to the previous menu.
4-2 Select "End."
Press or keys to select either of "END" and
press key.
4-3 Select "Edge 2nd" as the measurement surface.
The current setting value is displayed on the sub-
display.
Press / keys to enter the editing mode, and the
sub-display blinks.
Select "EDGE2" and press key.
5 Set scaling
Setting the Scaling p.3-21
6 Press key for two seconds to enter the RUN
mode.

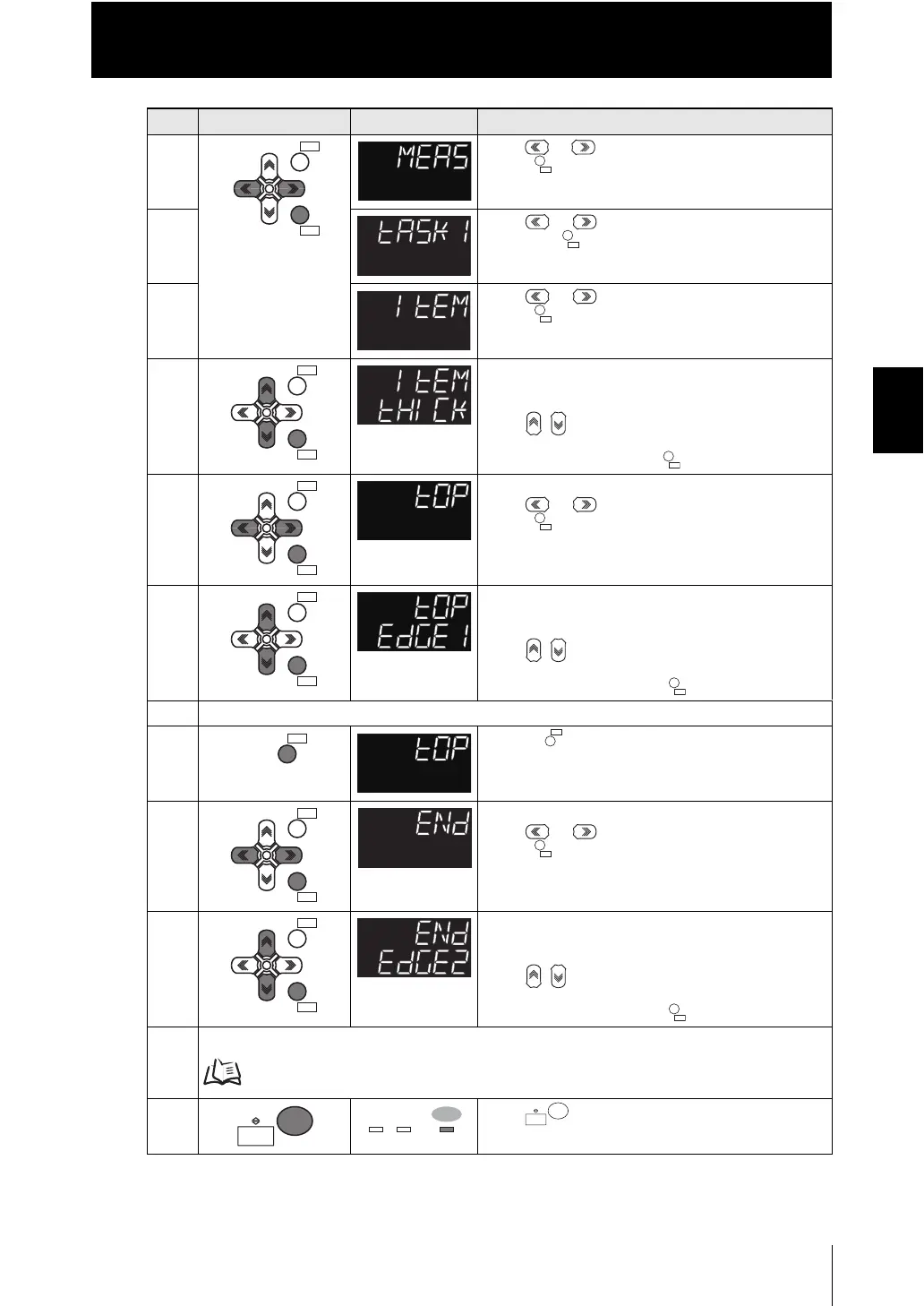

Steps Key operation Display Description
